Z26NEY99A4/B4/A6/B6

AnteriorPróximo

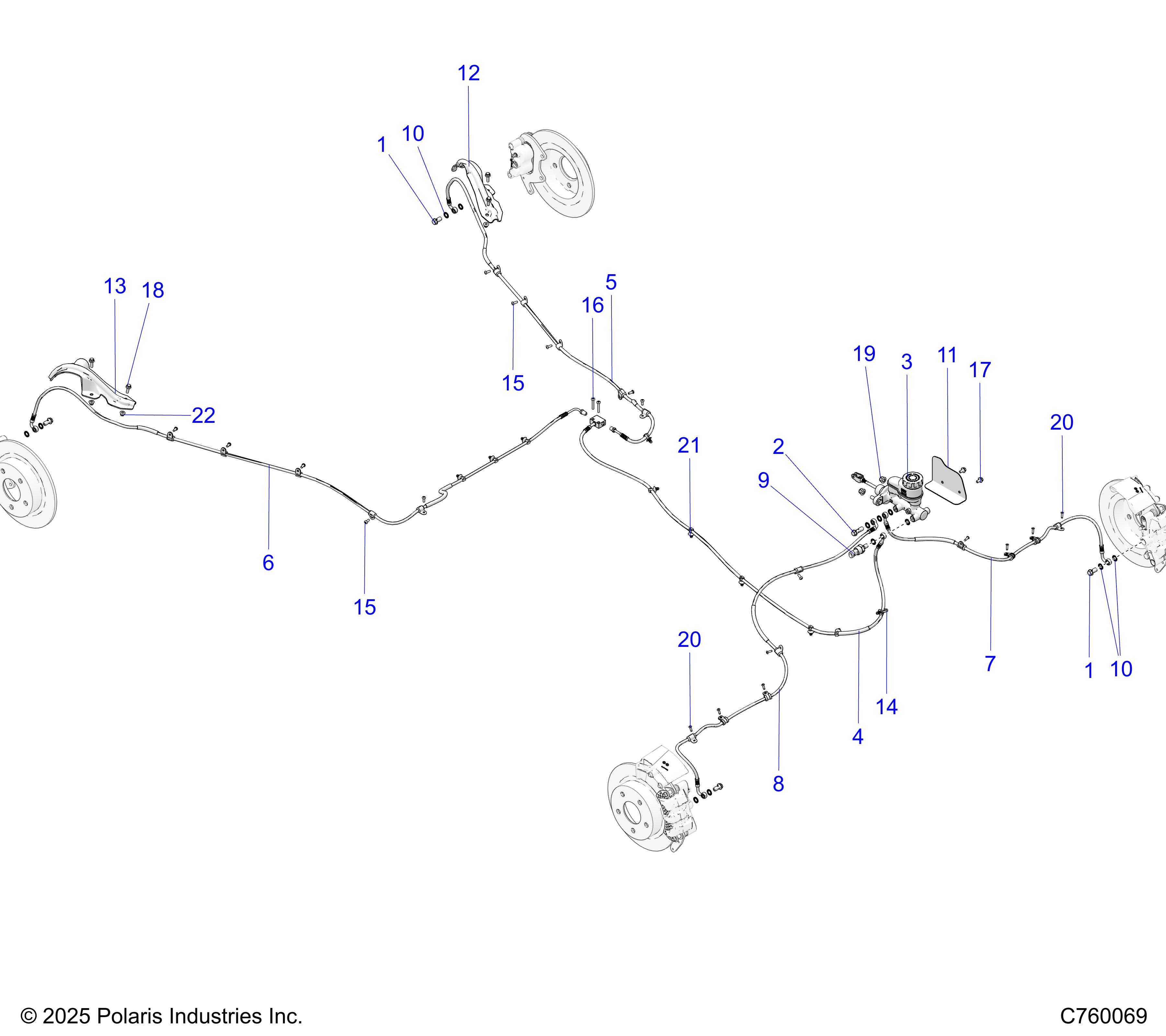

BRAKES, BRAKE LINES AND MASTER CYLINDER

Diagrama Polaris
#ReferenciaDescriçãoQuant(*)PVPStock
1 1910499BOLT-BANJO,10MMX1.00-6G 48.68+ivaStock Consultar
1 1910499BOLT-BANJO,10MMX1.00-6G 48.68+ivaStock Consultar
2 1911194BOLT-DOUBLE BANJO,M10X1.25 132.30+ivaStock Consultar
3 1913633ASM,FLANGE-MNT-TMC 1214.08+ivaStock Consultar
4 1914459LINE-BRAKE,MCT,XT,2P 1+ivaStock Consultar
5 1914466LINE-BRK,RL 1+ivaStock Consultar
6 1914467LINE-BRK,RR 1+ivaStock Consultar
7 1914783LINE-BRK,FL 1+ivaStock Consultar
8 1914784LINE-BRK,FR 1+ivaStock Consultar
9 4081315SWITCH-BRK,M10X1.25,SGL,10-40 1131.85+ivaStock Consultar
10 5413212SEAL-STAT-0-3/8, 70EP 137.43+ivaStock Sim
10 5413212SEAL-STAT-0-3/8, 70EP 137.43+ivaStock Sim
11 5268914BRKT-GUARD,MASTER CYL 112.92+ivaStock Consultar
12 5455263GUIDE,RZR,72,RL 155.28+ivaStock Consultar
13 5455264GUIDE,RZR,72,RR 155.28+ivaStock Consultar
14 7081496CLIP FIR-TREE,DIA6-33MM 17.43+ivaStock Sim
15 7512024SCR-#10-24X1/2PH/TORX-TRIRD-Y 117.43+ivaStock Consultar
15 7512024SCR-#10-24X1/2PH/TORX-TRIRD-Y 117.43+ivaStock Consultar
16 7512025SCR-10-24X1.25TFM PN TRX TRI-Y 27.43+ivaStock Consultar
17 7517886SCREW-HXFLGHD,M6X12 22.87+ivaStock Consultar
18 7519121SCR-HXFL-M6X1.0X20 8.8 RIE 47.20+ivaStock Consultar
19 7547332NUT- M8X1.25, FLG, NYLOC-OLIVE D 27.20+ivaStock Sim
20 7621323RIVET-POP 5/32(.251-.375)-ST-B 82.15+ivaStock Sim
20 7621323RIVET-POP 5/32(.251-.375)-ST-B 82.15+ivaStock Sim
21 7662429CLIP-FIR TREE,HEAT-STAB 98.68+ivaStock Consultar
22 7547453NUT-HXFL-M6X1.0 8 ZB3 NYL 47.20+ivaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
