Z26RRE2KAL

AnteriorPróximo

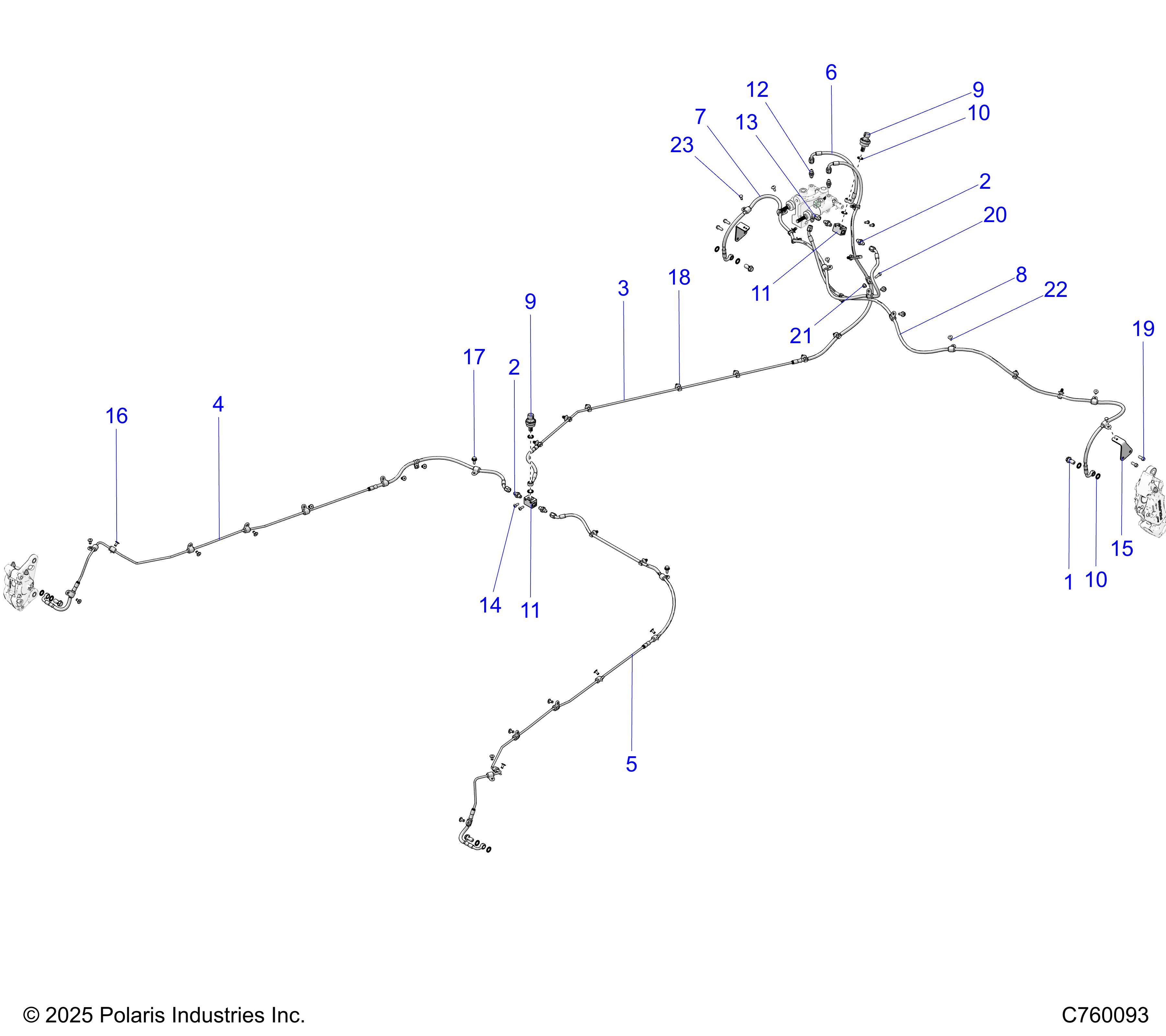

BRAKES, BRAKE LINES

Diagrama Polaris
#ReferenciaDescriçãoQuant(*)PVPStock
1 1910499BOLT-BANJO,10MMX1.00-6G 28.68+ivaStock Consultar
2 1914547FITTING-3/8 BSPP TO AN-06 47.43+ivaStock Consultar
2 1914547FITTING-3/8 BSPP TO AN-06 47.43+ivaStock Consultar
3 1914629LINE-BRK,MCT,RACE 1290.05+ivaStock Consultar
4 1914778LINE,BRK,RL,RACE 1+ivaStock Consultar
5 1914779LINE,BRK,RR,RACE 1+ivaStock Consultar
6 1914626LINE-BRK,MCT,FRT,RACE 1115.47+ivaStock Consultar
7 1914686LINE-BRK,FL 1248.62+ivaStock Consultar
8 1914687LINE-BRK,FR 1345.30+ivaStock Consultar
9 4080159SENSOR P.TRAN-BRK,M10X1.25,SGL 2207.18+ivaStock Consultar
9 4080159SENSOR P.TRAN-BRK,M10X1.25,SGL 2207.18+ivaStock Consultar
10 5413212SEAL-STAT-0-3/8, 70EP 127.43+ivaStock Sim
10 5413212SEAL-STAT-0-3/8, 70EP 127.43+ivaStock Sim
11 7055643FIT CROSS BRK 3 WAY 253.85+ivaStock Consultar
11 7055643FIT CROSS BRK 3 WAY 253.85+ivaStock Consultar
12 7055668FITTING-AN03 TO AN03 226.92+ivaStock Consultar
13 7055669FTG-90 DEG 3/8 JIC M TO 3/8 FE 159.05+ivaStock Consultar
14 7512024SCR-#10-24X1/2PH/TORX-TRIRD-Y 47.43+ivaStock Consultar
15 5272111-458BRKT-HOSE,BRAKE,KNUCKLE,BLK 254.12+ivaStock Consultar
16 7621433RIVET-POP 3/16(.251-.375)-ST-B 152.15+ivaStock Consultar
17 7518513BOLT,M6X1.0X15,HXFLG,TAP/T-OD 47.43+ivaStock Consultar
18 7662429CLIP-FIR TREE,HEAT-STAB 158.68+ivaStock Consultar
19 7519329SCR-HXFL,M6X1.0X16 8.8ZY3DL204 47.20+ivaStock Consultar
20 7516610SCR-SH-M5X0.8X10 8.8 ZPB D204 17.20+ivaStock Consultar
21 7547427NUT-M5X0.8 8.8 HX/FL NYLOC 15.77+ivaStock Consultar
22 7517560SCR-#12-24,X1/2",TXTRSHDTAPR-Y 47.43+ivaStock Consultar
23 7621432RIVET-POP 3/16(.126-.250)-ST-B 22.15+ivaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
