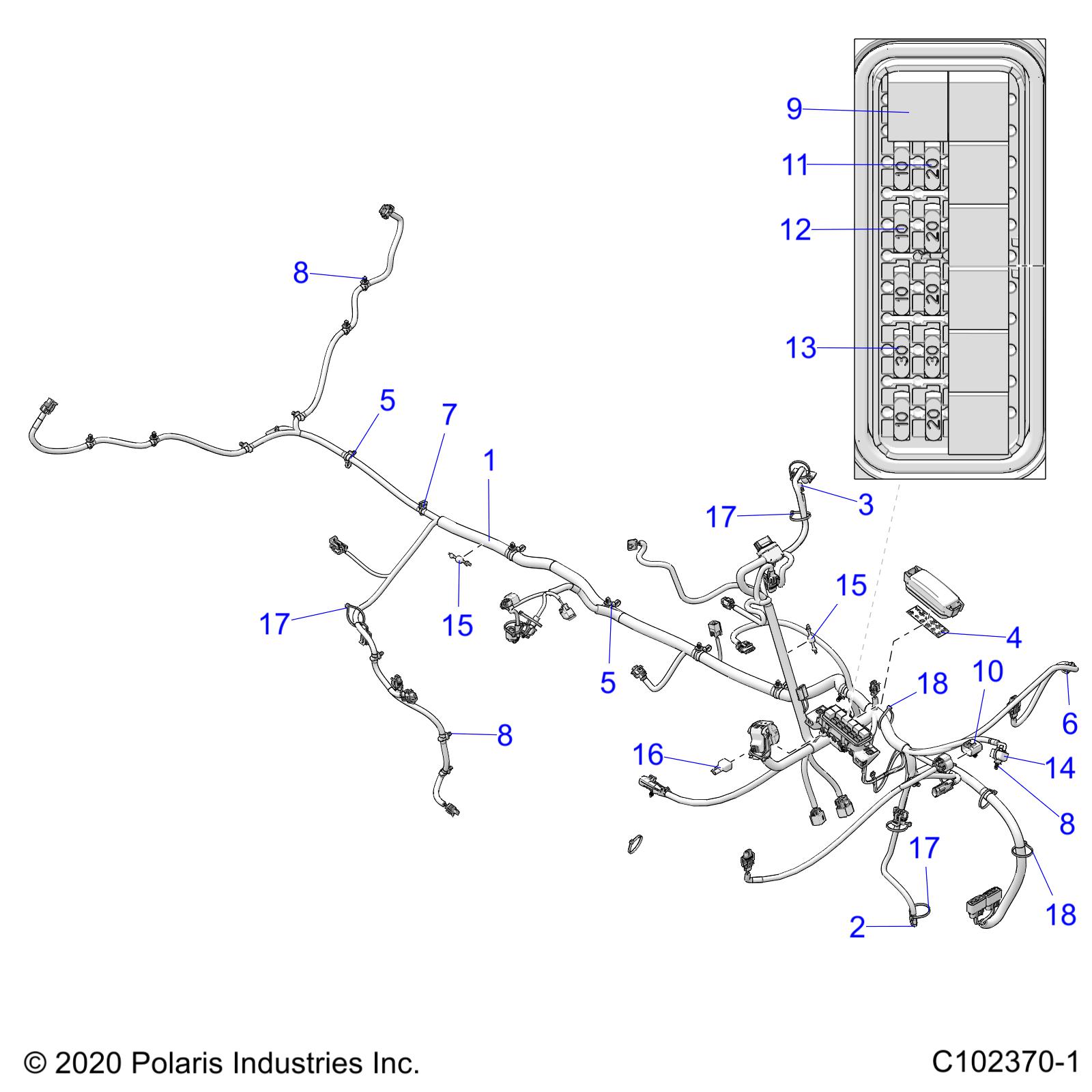

A20SWE57A1/3A1

ELECTRICAL, HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2414892	HARNESS-MAIN,570,X2 [INCL. 1-16]	1	1046.96+iva
2	4014891	CONNECTOR-CAP, WINCH CONTACTOR Â	1	14.40+iva
3	4014890	CONNECTOR-CAP, WINCH SWITCH Â	1	16.20+iva
4	7300006	LABEL, FUSE BOX Â	1	+iva
5	7081033	CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK) Â	5	6.83+iva
5	7081033	CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK) Â	5	6.83+iva
6	7081890	CLIP, EDGE, HARNESS Â	1	12.78+iva
7	7081808	STRAP - CABLE TIE W/ EDGE CLIP Â	1	10.78+iva
8	7081496	CLIP-ROUTING Â	13	7.13+iva
8	7081496	CLIP-ROUTING Â	13	7.13+iva
8	7081496	CLIP-ROUTING Â	13	7.13+iva
9	4016819	RELAY - SPST, 12V, 20A, EPXY, HFA Â	7	46.92+iva
10	4012170	COVER - DIAGNOSTIC, W/ CLIP Â	1	14.40+iva
11	2434017	FUSE,PARK,20 AMP,(10)   Esta Referencia foi alterada para : 4012811	4	Alterada
12	2434016	FUSE, IGNITION, 10 AMP Â	4	8.37+iva
13	2434015	FUSE,MAIN,30 AMP,(10) Â	2	12.60+iva
14	2411086	BREAKER, CIRCUIT, 15 AMP, SEALED Â	1	62.55+iva
15	2411035	DIODE - 6 AMP, 1/4, 3/16 TERM Â	2	78.18+iva
15	2411035	DIODE - 6 AMP, 1/4, 3/16 TERM Â	2	78.18+iva
16	2410000	DIODE - 6 AMP, 1/4, 3/16 TERM Â	1	54.73+iva
17	7080138	PANDUIT STRAP Â	9	3.12+iva
17	7080138	PANDUIT STRAP Â	9	3.12+iva
17	7080138	PANDUIT STRAP Â	9	3.12+iva
18	7080761	CABLE-TIE,10-102MM,WEATH.-RES. Â	6	4.17+iva
18	7080761	CABLE-TIE,10-102MM,WEATH.-RES. Â	6	4.17+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
