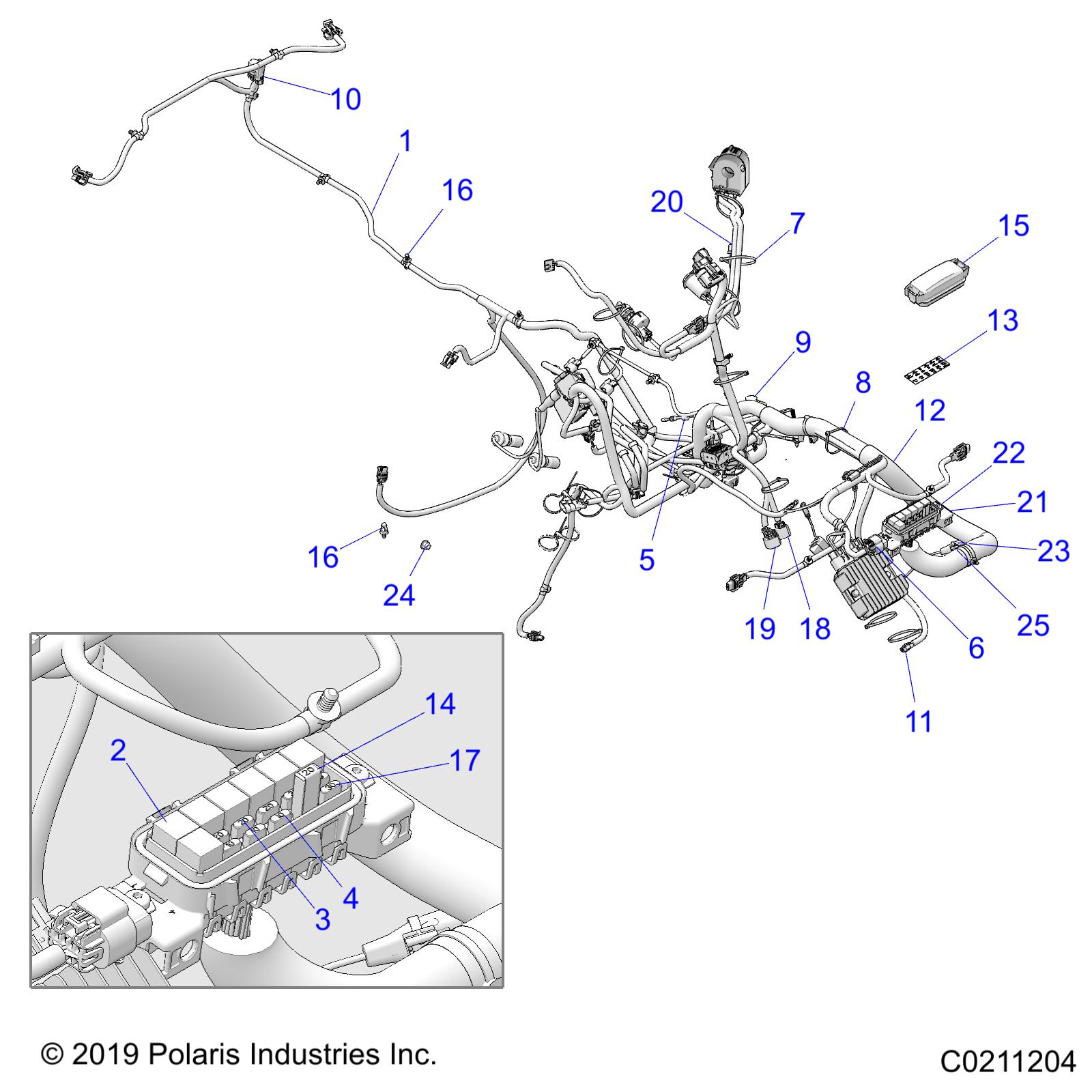

A20SXA85A1/A7/CA1/A7/EA9/AF/AP/CA9/CAF/CAP/VAP

ELECTRICAL, HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2415156	HARNESS-MAIN,SPXP NON-ETC	1	1339.59+iva
2	4016819	RELAY-SPST,12V,20A,EPXY,HFA	7	46.92+iva
3	2434017	FUSE, 20AMP Esta Referencia foi alterada para : 4012811	3	Alterada
4	2434016	FUSE, IGNITION, 10 AMP	3	8.37+iva
5	2411035	DIODE, 6AMP	2	78.18+iva
6	4012170	COVER, DIAGNOSTIC	1	14.40+iva
7	7080138	PANDUIT STRAP	7	3.12+iva
8	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	5	4.17+iva
9	2410000	DIODE - 6 AMP	1	54.73+iva
10	4016259	COVER, TAILLIGHT, LED W/CLIP	1	10.78+iva
11	4014891	CAP, WINCH CONTACTOR	1	14.40+iva
12	2202607	KIT, FUSIBLE LINK, .8 MM	1	47.98+iva
12	2202670	KIT, FUSIBLE LINK, 1.0 MM	1	42.65+iva
13	7192266	LABEL, FUSE BOX	1	+iva
14	4011372	BREAKER, CIRCUIT, 20 AMP	1	62.55+iva
15	-------	COVER, FUSEBOX	1	+iva
15	-------	COVER, FUSEBOX	1	+iva
16	7081496	CLIP-ROUTING	15	7.13+iva
17	2434015	FUSE,MAIN,30 AMP,(10)	2	12.60+iva
18	4014235	CONNECTOR-CAP,EPS SIGNAL [A85A1][A85A7][A8CA7][A8CA1]	1	11.03+iva
19	4014236	CONNECTOR-CAP,EPS POWER [A85A1][A85A7][A8CA7][A8CA1]	1	11.72+iva
20	4014890	CAP, WINCH SWITCH	1	16.20+iva
21	-------	BASE, FUSEBOX	1	+iva
22	7518914	SCREW	2	4.28+iva
23	2415060	PLUG-HARNESS BATTERY CHARGE	1	39.08+iva
24	7547317	NUT-M8X1.25,HXFLG,NYLON INS	1	5.72+iva
25	7082073	CLIP-ROUTING	1	31.98+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
