R23MAA57B1/E57B4/B9

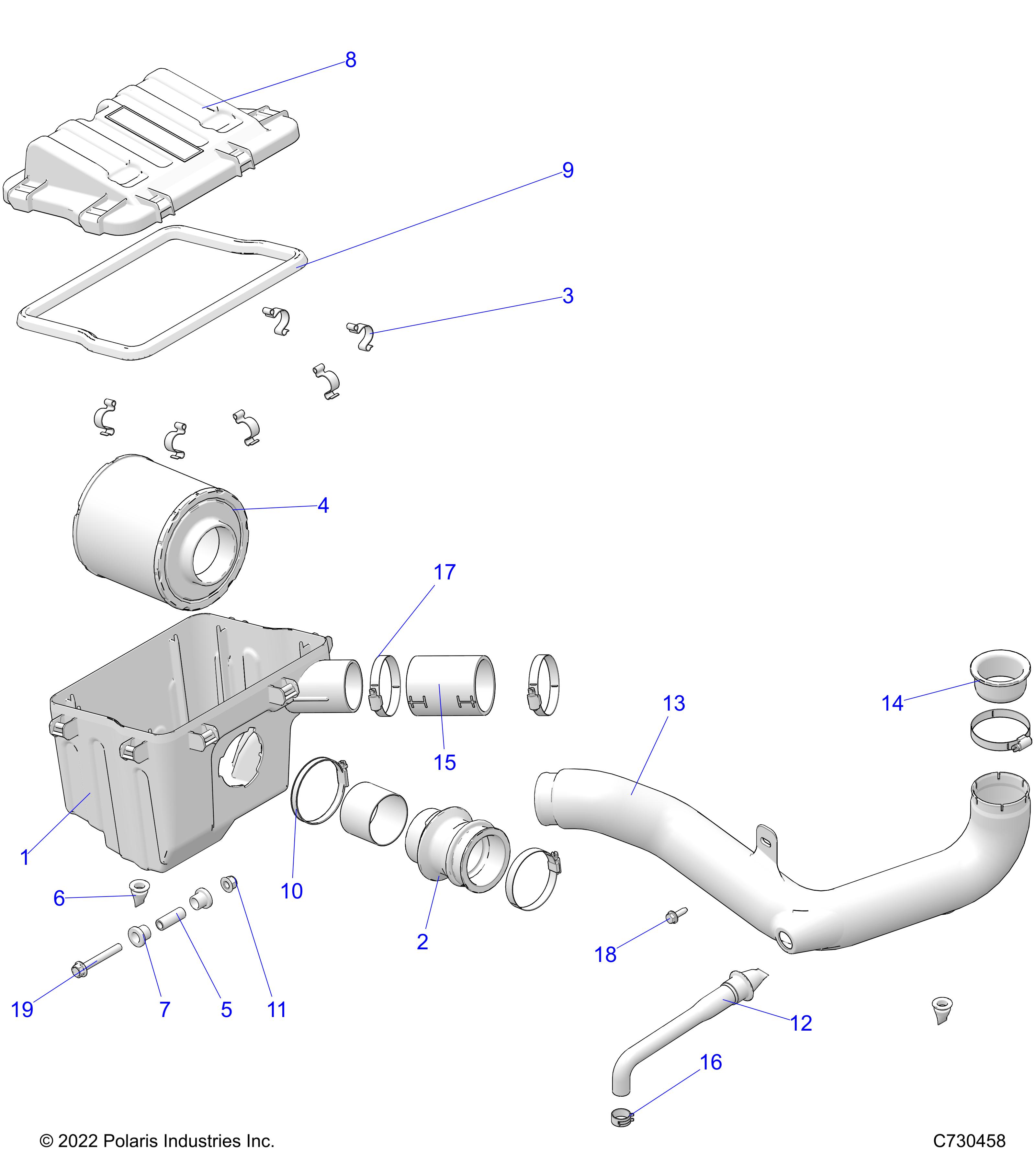

ENGINE, AIR INTAKE SYSTEM
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| - | ------- | ASM, AIRBOX,570,NRMM [INCL. 1-9] | 1 | +iva |  |
| 1 | 5457956 | BOX, AIR INTAKE | 1 | 180.25+iva | |
| 2 | 5417998 | BOOT-ENGINE,INTAKE | 1 | 56.87+iva | |
| 3 | 5242044 | Clip, Air Box | 6 | 11.72+iva | |
| 4 | 7082037 | FILTER, AIRBOX, MAIN | 1 | 54.02+iva |  |
| 5 | 5138987 | SHAFT-COMPRESSION LMTR,34.4MM | 1 | 25.02+iva | |
| 6 | 5414472 | PLUG, DRAIN, HC | 2 | 7.35+iva | |
| 7 | 5414719 | BUSHING, MOUNT | 2 | 2.85+iva | |
| 8 | 5457955 | COVER, AIRBOX | 1 | 100.02+iva | |
| 9 | 5815088 | SEAL, AIR BOX COVER | 1 | 42.65+iva | |
| 10 | 7080707 | CLAMP, BAND, NARROW, 60-80MM | 1 | 7.35+iva | |
| 11 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 1 | 5.72+iva | |
| 12 | 2521911 | ASM-HOSE, BREATHER [INCL. VALVE] | 1 | 78.18+iva | |
| 12 | 7052577 | VALVE-BREATHER W/.53" BARB ID | 1 | 28.43+iva | |
| 13 | 5414503 | DUCT, INTAKE, AIRBOX | 1 | 77.93+iva | |
| 14 | 5415033 | SEAL, ENGINE, INLET | 1 | 11.03+iva | |
| 15 | 5418319 | HOSE, ENGINE, INLET | 1 | 25.02+iva | |
| 16 | 7081026 | CLAMP-HOSE,SPRING .81 | 1 | 11.03+iva | |
| 17 | 7081623 | CLAMP-HOSE 70MM DIA. WORM GEAR | 4 | 7.35+iva | |
| 18 | 7518529 | SCR-M6X1.0X20, HXHD, FLG, TDFM, BK | 1 | 5.72+iva | |
| 19 | 7519298 | SCR-HXFL-M8X1.25X60 8.8 ZOD | 1 | 7.13+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
