R23M4A57B1/E57B4/B9

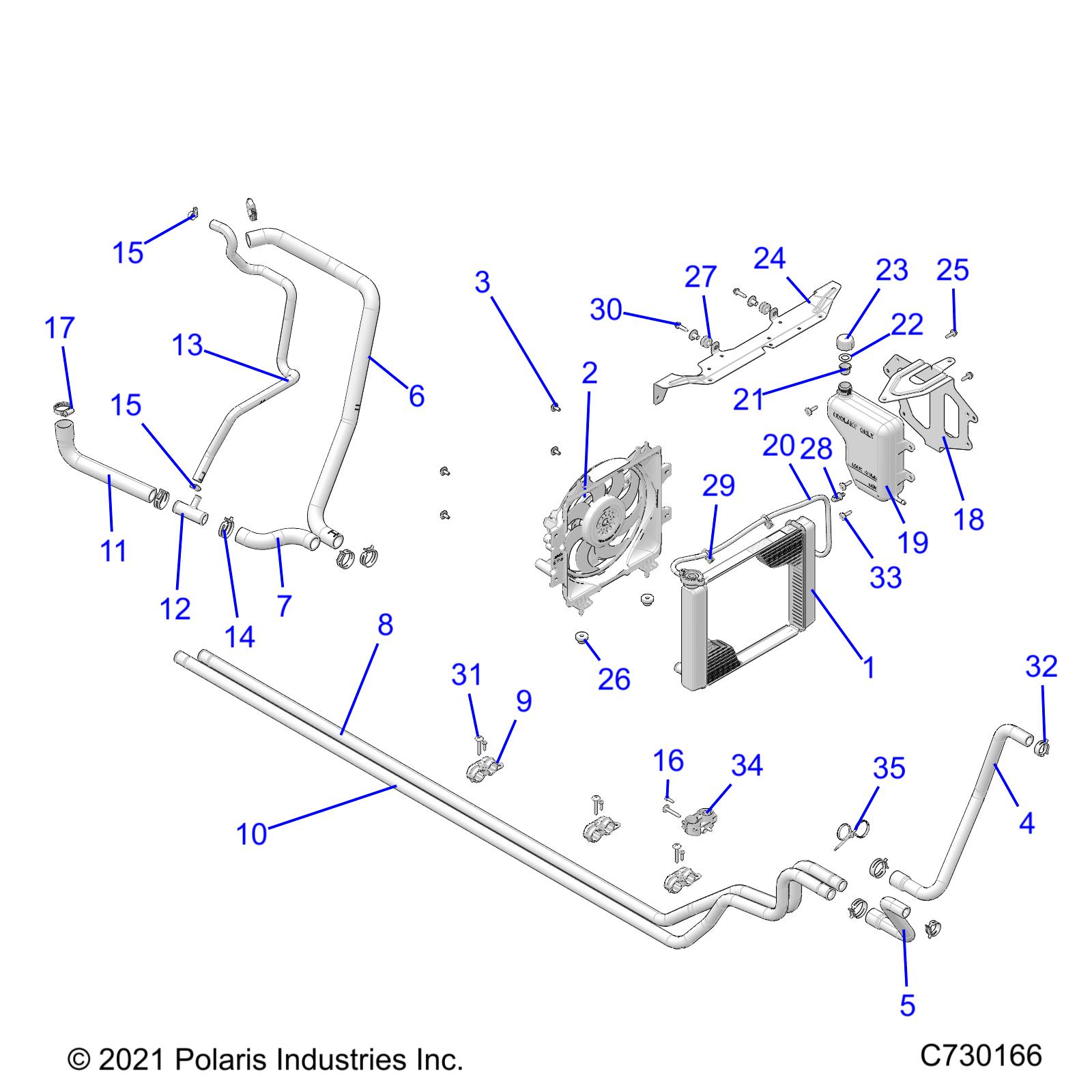

ENGINE, COOLING SYSTEM

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1241476	ASM-RADIATOR [INCL. CAP]	1	663.15+iva
2	2415473	ASM-FAN AND MOTOR,TRIPAC,SGL	1	223.09+iva
3	7519585	BOLT, M6X15MM	4	12.91+iva
4	5417585	HOSE-UPPER,RAD	1	63.16+iva
5	5417586	HOSE-LOWER,RAD	1	71.05+iva
6	5417587	HOSE-ENGINE OUTLET,REAR	1	71.05+iva
7	5415054	HOSE, LOWER, ENGINE, SHORT	1	47.35+iva
8	5143869	TUBE-COOLANT,1",CREW	1	79.35+iva
9	5451221	BRACKET, COOLANT TUBE	3	12.40+iva
10	5143870	TUBE-COOLANT,1",CREW	1	79.35+iva
11	5414162	HOSE, BYPASS, 1 INCH, FORMED	1	55.26+iva
12	7052530	CONNECTOR-TEE,1X1X0.5	1	8.68+iva
13	5417707	HOSE-BYPASS,1/2IN FORMED	1	63.16+iva
14	7080843	SPRINGBAND-CLAMP 32/12,BROWN	6	7.20+iva
15	7080474	CLAMP, HOSE, SPRING, .875 INCH	2	11.16+iva
15	7080474	CLAMP, HOSE, SPRING, .875 INCH	2	11.16+iva
16	7512026	SCREW-#10X3/4-HI/LO-PN-T25,TRX-M	4	2.15+iva
17	7081192	CLAMP, HOSE (WORM DR) 25-40MM	2	12.40+iva
18	5271525-329	BRKT-SURGE TANK,BLK	1	53.83+iva
19	5439202	TANK, SURGE	1	151.87+iva
20	8450003-68	LINE, FUEL Substituted by 2870563	1	+iva
21	5433774	CAP,PLUG9X(GRN),FLEX TEMP(10) [INCL. 24]	1	10.90+iva
22	5810279	GASKET, OVER FLOW CAP	1	4.31+iva
23	5430743	CAP, OVER FLOW BOTTLE, DRILLED	1	10.90+iva
24	5270541-458	BRKT-RAD MNT,UPPER,BLK	1	32.29+iva
25	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	3	2.15+iva
26	5410584	Bushing, Mount, Radiator, Lower	2	8.68+iva
27	5416503	ASM-GROMMET & INSERT	2	7.20+iva
28	7081496	CLIP-ROUTING	3	7.43+iva
29	7081808	STRAP - CABLE TIE W/ EDGE CLIP	2	10.90+iva
30	7515179	SCR-1/4-20X1 HX/WH/TAP/R GR5-Y	2	4.31+iva
31	7519001	SCR-TXTH-M6X1.0X50, 8.8, ZPB	4	7.20+iva
32	7080841	SPRINGBAND-CLAMP 27/12,GREEN	2	11.16+iva
33	7519650	SCR-TXTH-M6X1.0X25 ZFB	3	7.20+iva
34	5453767	CLIP-COOLANT ROUTING	1	8.68+iva
35	7081916	STRAP-PANDUIT,DBL LOOP,260MM	1	7.20+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
