R23RSF99AY

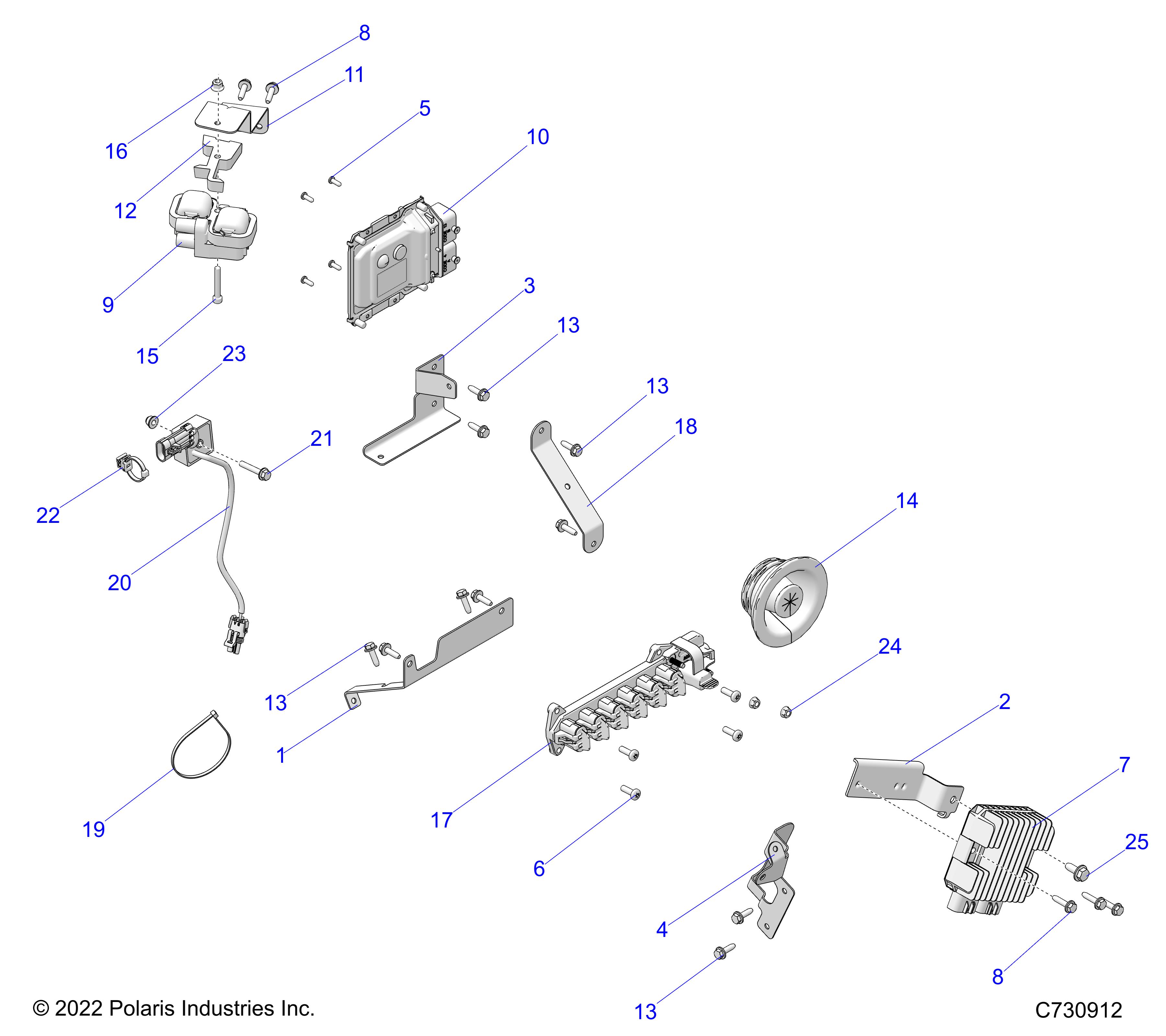

ELECTRICAL, WIRE HARNESS COMPONENTS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	5271547-329	BRKT-FUSE HOLDER,BLK	1	17.05+iva
2	5263643	BRKT-MOUNT,REG	1	42.65+iva
3	5264314	BRKT-HARNESS ROUTING	1	13.85+iva
4	5268050-329	BRKT-ROUTING,BLK	1	26.65+iva
5	7519091	SCR-#10X1/2-HI/LO-PN-T25, TRX-M	4	4.28+iva
6	7519731	SCR-TXPH-#14 X .75 HI-LO RIE	4	5.72+iva
7	4016868	REGULATOR-3PH,50A,SERIES,HISPD	1	184.58+iva
8	7520715	SCR-TFHFL-M6X1.0X25,ZY3	5	5.72+iva
8	7520715	SCR-TFHFL-M6X1.0X25,ZY3	5	5.72+iva
9	4010425	COIL, EFI Esta Referencia foi alterada para : 2876049	1	Alterada
10	4014125	ECM-HARD,ME17,2CYL,250K	1	877.88+iva
11	5263891	BRKT-COIL MOUNT	1	11.72+iva
12	5436577	SPACER, COIL MOUNT	1	5.72+iva
13	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	10	5.72+iva
13	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	10	5.72+iva
13	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	10	5.72+iva
13	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	10	5.72+iva
14	5417082	GROMMET-HOOD LINER,SPLIT	1	9.82+iva
15	7518780	SCR-M6X1.0X40,HX/SOC/CP-B	1	5.72+iva
16	7547274	NUT, M6 FLANGE, NYLOC	1	5.72+iva
17	5454284	COVER,TB,JCASE	1	39.08+iva
17	4016007	BLOCK-TERMINAL,3 POST,TALL [INCL. FUSE, PLUG, AND COVER]	1	67.37+iva
17	5454283	PLUG,ACCY TB	1	62.55+iva
17	4013891	FUSE, CARTRIDGE, 40A	1	46.92+iva
18	5265908-458	BRKT-WIRE GUIDE,BLK	1	7.35+iva
19	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	AR	4.17+iva
20	4012829	RELAY, SOLID STATE, 9 AMP, LONG, LD	1	114.32+iva
21	7518612	BOLT-M6X1.0X35,HXFLG/SH-OLV D	1	7.13+iva
22	7082403	CLIP-EDGE, 1-3mm THICKNESS	1	7.13+iva
23	7518339	SCREW	1	11.72+iva
24	7547270	NUT-HXFLGHD, M6, SERRATED	2	5.72+iva
25	7518555	SCR-TFHFL-M8X1.25X20 CHS ZOD	1	7.13+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
