R23RRED4JA

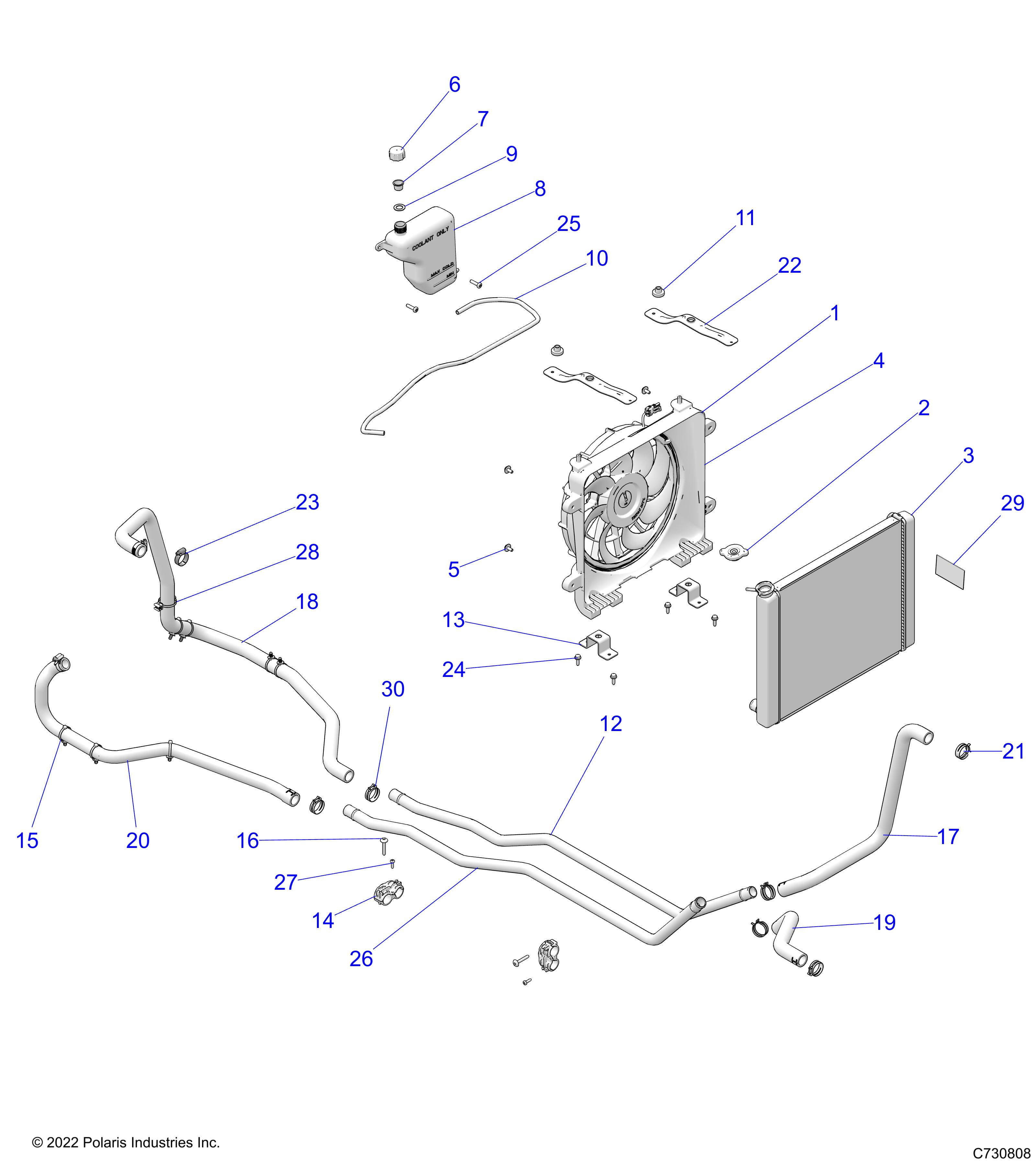

ENGINE, COOLING SYSTEM -R23RRRED4JA (C730808)

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1241340	ASM., RADIATOR [INCL. 2-5]	1	1079.48+iva
2	1240694	CAP, RADIATOR	1	62.55+iva
3	1240745	ASM., RADIATOR, CORE	1	695.81+iva
4	2414725	ASM-FAN,RADIATOR	1	279.70+iva
5	7519585	BOLT, M6X15MM	4	11.72+iva
6	5430743	CAP, OVER FLOW BOTTLE, DRILLED	1	10.47+iva
7	5433774	CAP,PLUG9X(GRN),FLEX TEMP(10)	1	10.47+iva
8	5439202	TANK, SURGE	1	143.57+iva
9	5810279	GASKET, OVER FLOW CAP	1	7.35+iva
10	8450003-95	FUEL LINE-95 CENTIMETERS Esta Referencia foi alterada para : 8450003-100	1	Alterada
11	7052028	GROMMET-FLANGED,.36X.56X1.06	4	9.82+iva
12	5140928	TUBE-COOLANT,1"	1	78.58+iva
13	5269633-329	BRKT-RADIATOR MNT,LWR,BLK	2	17.05+iva
14	5453767	CLIP-COOLANT ROUTING	2	7.35+iva
15	7081496	CLIP-ROUTING	7	7.13+iva
16	7519001	SCR-TXTH-M6X1.0X50, 8.8, ZPB	2	5.72+iva
17	5416137	HOSE-UPPER,RAD	1	62.55+iva
18	5417080	HOSE-ENG,OUT,DSL	1	58.03+iva
19	5416138	HOSE-LOWER,RAD	1	46.92+iva
20	5416874	HOSE-ENG,IN,DSL	1	39.08+iva
21	7080844	SPRINGBAND-CLAMP 35/12,BLK	4	12.78+iva
22	5263654-329	BRKT-RADIATOR MOUNT,BLK	2	13.85+iva
23	7080614	CLAMP, HOSE WORM GEAR 1.25	2	11.03+iva
24	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	6	5.72+iva
25	7518158	SCREW, #14X1 HI/LO-PH-PN TRX-M	2	7.13+iva
26	5142861	TUBE-COOLANT,1",UPPER	1	85.73+iva
27	7512026	SCREW-#10X3/4-HI/LO-PN-T25,TRX-M	2	5.72+iva
28	7081824	STRAP, CABLE TIE W/ EDGE CLIP 3-6MM	1	23.45+iva
29	2209414	K-ASM-RADIATOR,EU	1	981.31+iva
30	7080843	SPRINGBAND-CLAMP 32/12,BROWN	2	7.13+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
