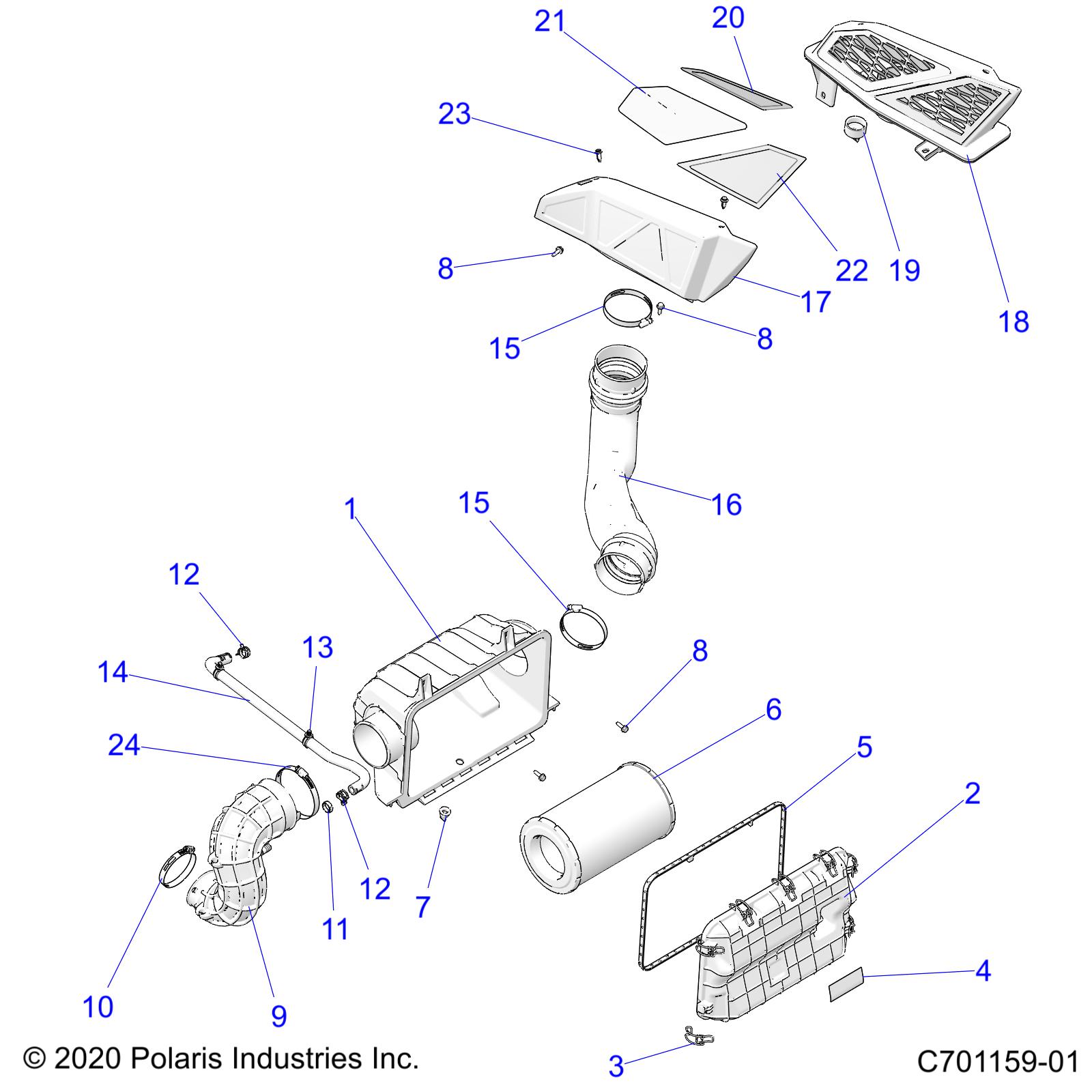

Z23RGD2KAJ/AK/BJ/BK

ENGINE, AIR INTAKE SYSTEM

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	5457730	AIRBOX	1	142.95+iva
2	1241302	ASM-AIRBOX COVER,DECAL [INCL. 3-4]	1	150.42+iva
3	7082596	ASM-AIRBOX CLIP Esta Referencia foi alterada para : 1241468	7	Alterada
4	7189751	DECAL-CAUT.AIR BOX	1	+iva
5	5814775	SEAL-AIRBOX	1	31.27+iva
6	7082436	FILTER-AIR	1	63.97+iva
7	5414472	PLUG, DRAIN, HC	1	7.35+iva
8	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	4	5.72+iva
8	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	4	5.72+iva
8	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	4	5.72+iva
9	1241392	ASM-INTAKE DUCT [INCL. 11]	1	123.42+iva
10	7082314	CLAMP-HOSE SLOTTED,75-90 DIA	1	12.78+iva
11	7082553	CLAMP-OETIKER,16700110-19.2	1	9.52+iva
12	7081719	CLAMP, HOSE SPRING, 20MM	2	7.35+iva
12	7081719	CLAMP, HOSE SPRING, 20MM	2	7.35+iva
13	5416731	HOSE-VENT,ENG	1	78.58+iva
14	7081496	CLIP-ROUTING	1	7.13+iva
15	7081969	CLAMP, HOSE SLOTTED, 89-100 DIA	2	12.78+iva
15	7081969	CLAMP, HOSE SLOTTED, 89-100 DIA	2	12.78+iva
16	1241489	ASM-DUCT,AIRBOX,IN	1	298.35+iva
17	5457037	DEFLECTOR-BEZEL,LH	1	54.13+iva
18	2637955	ASM-BEZEL,INTAKE,LH [INCL. 19-22]	1	142.95+iva
19	5417149	BOOT-PURGE VALVE,AIR BOX	1	5.72+iva
20	5456087	SCREEN-INTAKE,OUTER,LH	1	28.43+iva
21	5456091	SCREEN-INTAKE,INNER,REAR,LH	1	63.97+iva
22	5456089	SCREEN-INTAKE,INNER,FRONT,LH	1	63.97+iva
23	7661855	RIVET-TUFLOK,.315-.325X.787	2	5.72+iva
24	7082560	CLAMP-HOSE SLOTTED,100-110 DIA	1	8.58+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
