Z24NEE99A2/B2

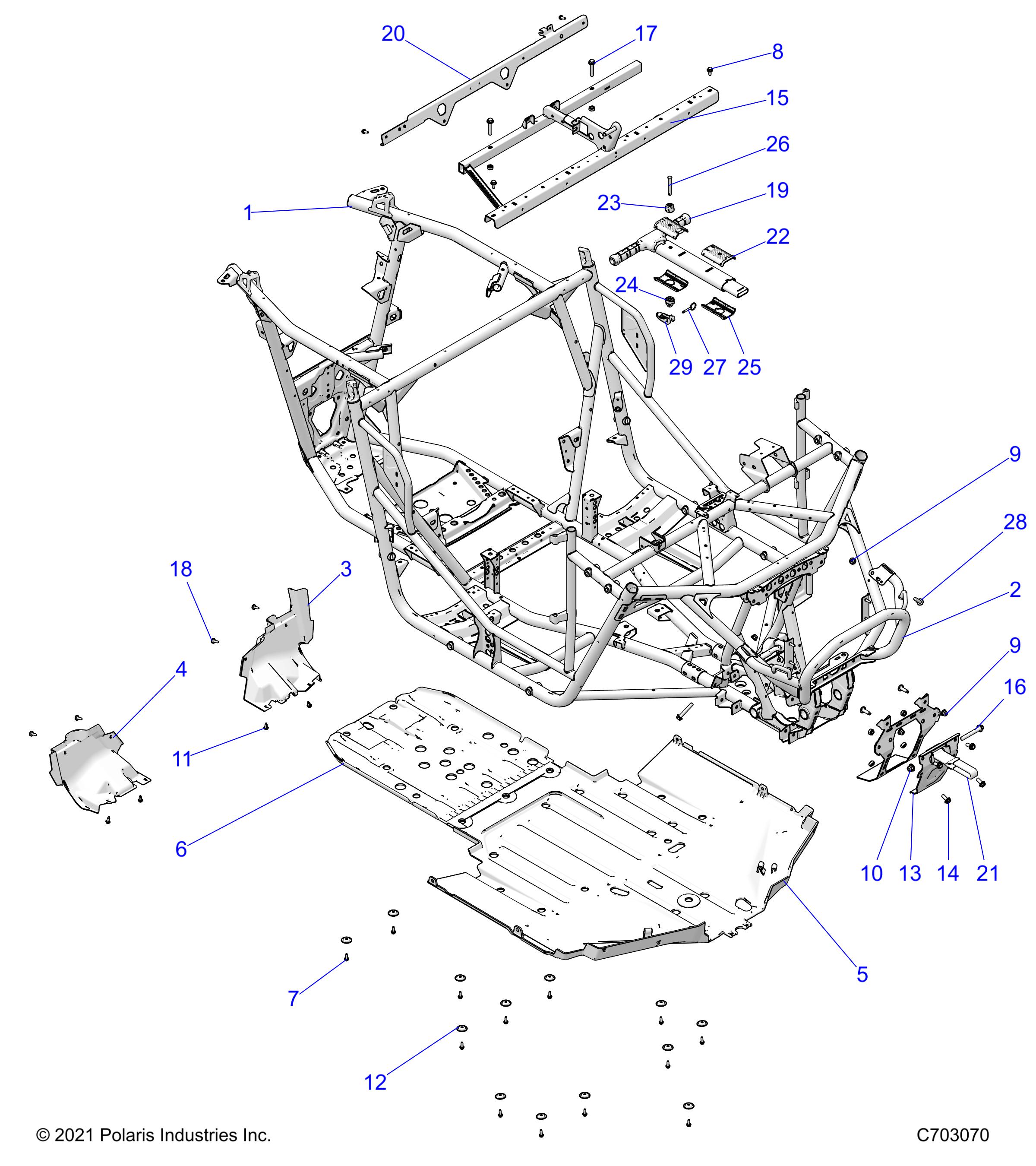

CHASSIS, MAIN FRAME AND SKID PLATES

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1025390-458	WELD-MAIN FRAME,BLK	1	4161.88+iva
2	1025765-458	WELD-BULL BUMPER,BLK	1	382.88+iva
3	5457593-070	COVER-SCM,LH,BLK	1	54.73+iva
4	5457594-070	COVER-TANK,RH,BLK	1	46.92+iva
5	5459854-070	SKID PLATE-FRONT,BLK	1	478.60+iva
6	5458920-070	PLATE-SKID,REAR,BLK	1	273.48+iva
7	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	15	5.72+iva
8	7518555	SCR-TFHFL-M8X1.25X20 CHS ZOD	2	7.13+iva
9	7547423	NUT-M10X1.5 HFN NYLOC ZOD	4	5.72+iva
9	7547423	NUT-M10X1.5 HFN NYLOC ZOD	4	5.72+iva
10	7547441	NUT-HXFL M12X1.75 8 ZOD NYL	1	7.13+iva
11	7661855	RIVET-TUFLOK,.315-.325X.787	4	5.72+iva
12	7556065	WASHER, PLATE, SKID	13	11.03+iva
13	1026392-458	WELD-FRONT PLATE,BLK	1	156.63+iva
14	7519071	SCR-M10X1.5X25 8.8 HXFL ZOD	4	7.13+iva
15	1026956-329	WELD-SEAT BASE,FRT,BLK	1	321.33+iva
16	7518705	SCR-SHXFL-M12X1.75X90 10.9 ZPC	1	12.27+iva
17	7518474	SCR-HXFL-M10X1.5X55 8.8 ZY3	2	7.13+iva
18	7519650	SCR-TXTH-M6X1.0X25 ZFB	4	5.72+iva
19	2637771	ASM-GRAB BAR	1	142.90+iva
20	5272355-329	BRKT-CLOSE OFF SUPPORT,ECOAT	1	97.88+iva
21	2691649	ASM-TOW STRAP	1	31.27+iva
22	5457427	BUSHING-GRAB BAR,UPPER	2	7.13+iva
23	5457511	NUT-GRAB BAR	1	9.82+iva
24	5457512	CAP,GRAB BAR LEVER	1	8.37+iva
25	5457891	BUSHING-GRAB BAR,LOWER	2	7.13+iva
26	7521309	ROD-GRAB BAR THREADED	1	9.82+iva
27	7663047	PIN-GRAB BAR	1	11.03+iva
28	7518960	SCR-M10X1.5X65 8.8 HX/FL ZOD	2	5.72+iva
29	5459039	LEVER,GRAB BAR	1	4.17+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
