A19DAE57D5

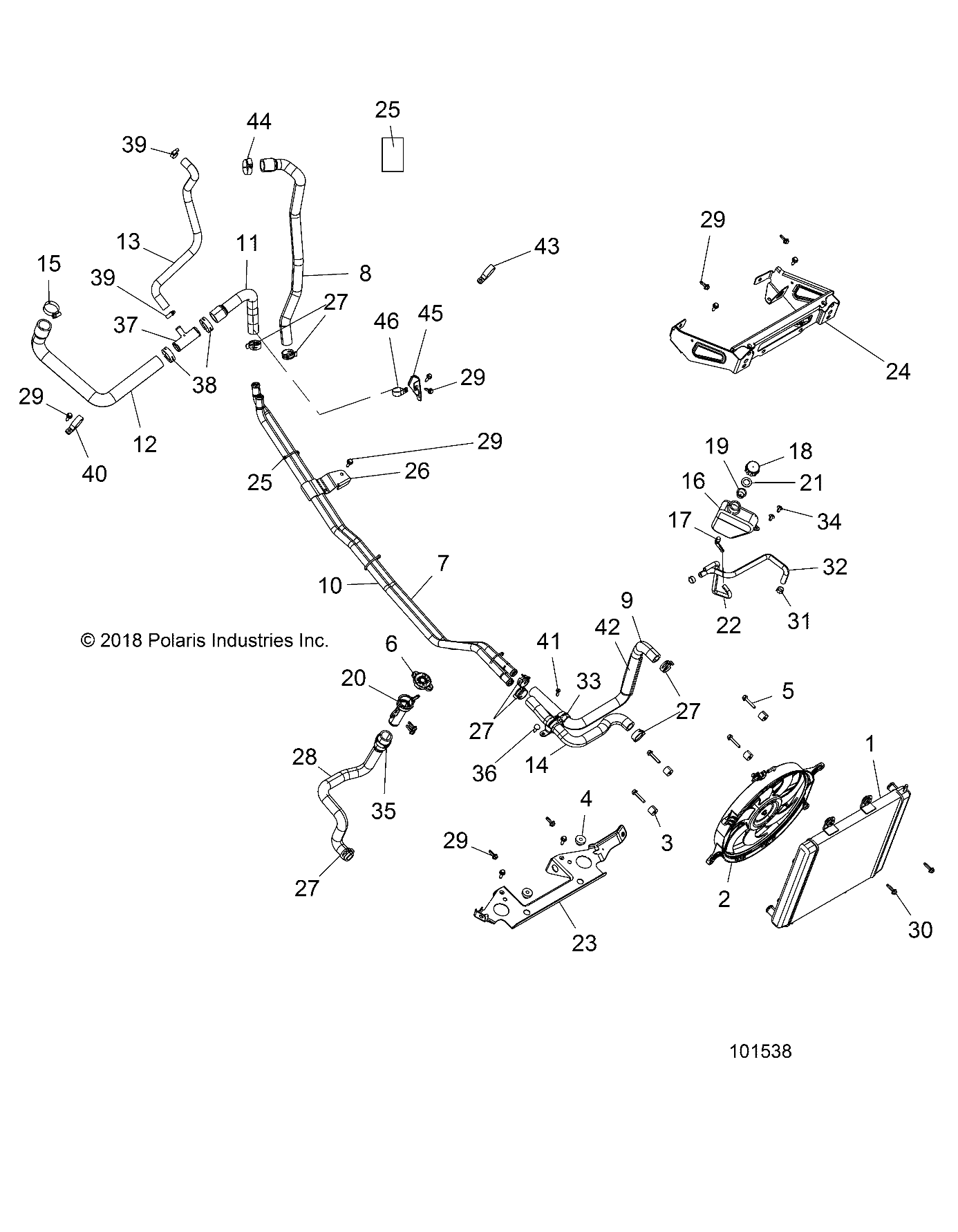

ENGINE, COOLING SYSTEM

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1241012	ASM-RADIATOR,CORE Consulte-nos podemos ter uma solução	1	Obsoleta
2	2411330	ASM-FAN AND MOTOR,TRIPAC,SGL	1	220.95+iva
3	5137361	SPACER-6.6IDX19ODX15 NYL BLK	4	7.35+iva
4	5410584	BUSHING, MOUNT, LOWER RADIATOR	2	7.35+iva
5	7516827	SCR-M6X1.0X35,HX/FL-Y/D	4	8.58+iva
6	1240300	CAP, PRESSURE	1	65.67+iva
7	5140811	TUBE-COOLANT,3/4,ENG OUT	1	70.37+iva
8	5416035	HOSE-COOLANT,REAR,ENG OUT	1	46.92+iva
9	5415709	HOSE-COOLANT	1	46.92+iva
10	5140812	TUBE-COOLANT,3/4,ENG IN	1	70.37+iva
11	5416033	HOSE-COOLANT,REAR,ENG IN	1	46.92+iva
12	5415129	HOSE-COOLANT,ENGINE INLET	1	54.73+iva
13	5415447	HOSE-COOLANT,BYPASS	1	70.37+iva
14	5416034	HOSE-RADIATOR,ACE 570	1	39.08+iva
15	7081174	CLAMP, HOSE	1	9.82+iva
16	5436936	TANK, SURGE	1	121.47+iva
17	7052065	FITTING, BARBED	1	13.85+iva
18	5430743	CAP, OVERFLOW BOTTLE, DRILLED	1	10.47+iva
19	5433774	PLUG, CAP	1	10.47+iva
20	5439079	FILLER, REMOTE, COOLANT	1	39.08+iva
21	5810279	GASKET, OVER FLOW CAP	1	7.35+iva
22	8450003-1525	LINE, FUEL	AR	107.17+iva
23	5262753-329	MNT-RADIATOR,M.BLK	1	97.43+iva
24	5262754-329	MNT-RADIATOR,UPPER,E-COAT	1	97.43+iva
25	5810290	PAD-BATTERY	1	14.40+iva
25	5810290	PAD-BATTERY	1	14.40+iva
26	5258169	CLAMP-COOLANT LINES	1	13.85+iva
27	7080841	CLAMP, SPRINGBAND	7	9.82+iva
27	7080841	CLAMP, SPRINGBAND	7	9.82+iva
27	7080841	CLAMP, SPRINGBAND	7	9.82+iva
27	7080841	CLAMP, SPRINGBAND	7	9.82+iva
28	5415876	HOSE-COOLANT,FRONT	1	54.73+iva
29	7518529	SCREW	14	5.72+iva
29	7518529	SCREW	14	5.72+iva
29	7518529	SCREW	14	5.72+iva
29	7518529	SCREW	14	5.72+iva
29	7518529	SCREW	14	5.72+iva
30	7519342	SCREW	2	5.72+iva
31	7080003	CLAMP, HOSE	2	2.68+iva
32	8450120-600	HOSE	AR	107.17+iva
33	5451221	BRACKET-COOLANT TUBE	1	11.03+iva
34	7512084	SCREW	2	5.72+iva
35	7080843	CLAMP, SPRINGBAND	1	7.13+iva
36	7670090	CLIP-PLASTIC,DART,NYLON	1	5.72+iva
37	7052530	CONNECTOR, TEE	1	7.35+iva
38	7080844	SPRINGBAND, CLAMP	2	12.78+iva
39	7080474	CLAMP, HOSE	2	9.82+iva
39	7080474	CLAMP, HOSE	2	9.82+iva
40	7080851	CLAMP-HOSE,1.312 VINYL COATED Esta Referencia foi alterada para : 7080908	1	Alterada
41	7512026	SCR-#10X3/4-HI/LO-PN-T25,TRX-M	1	5.72+iva
42	5521793-10	CONDUIT-FLEX,1.00 ID,PE,10CM	1	12.60+iva
43	7080807	CLAMP-HOSE	1	12.78+iva
44	7081192	CLAMP-HOSE(WORM DR)25-40MM	1	11.03+iva
45	5267081	BRKT-HOSE,COOLANT,ACE	1	11.72+iva
46	7081854	CLAMP-VINYL COATED,1.00IN ID	1	7.35+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
