A24SEE57A1/A3/A6/A9/B1//B3/B6/B9

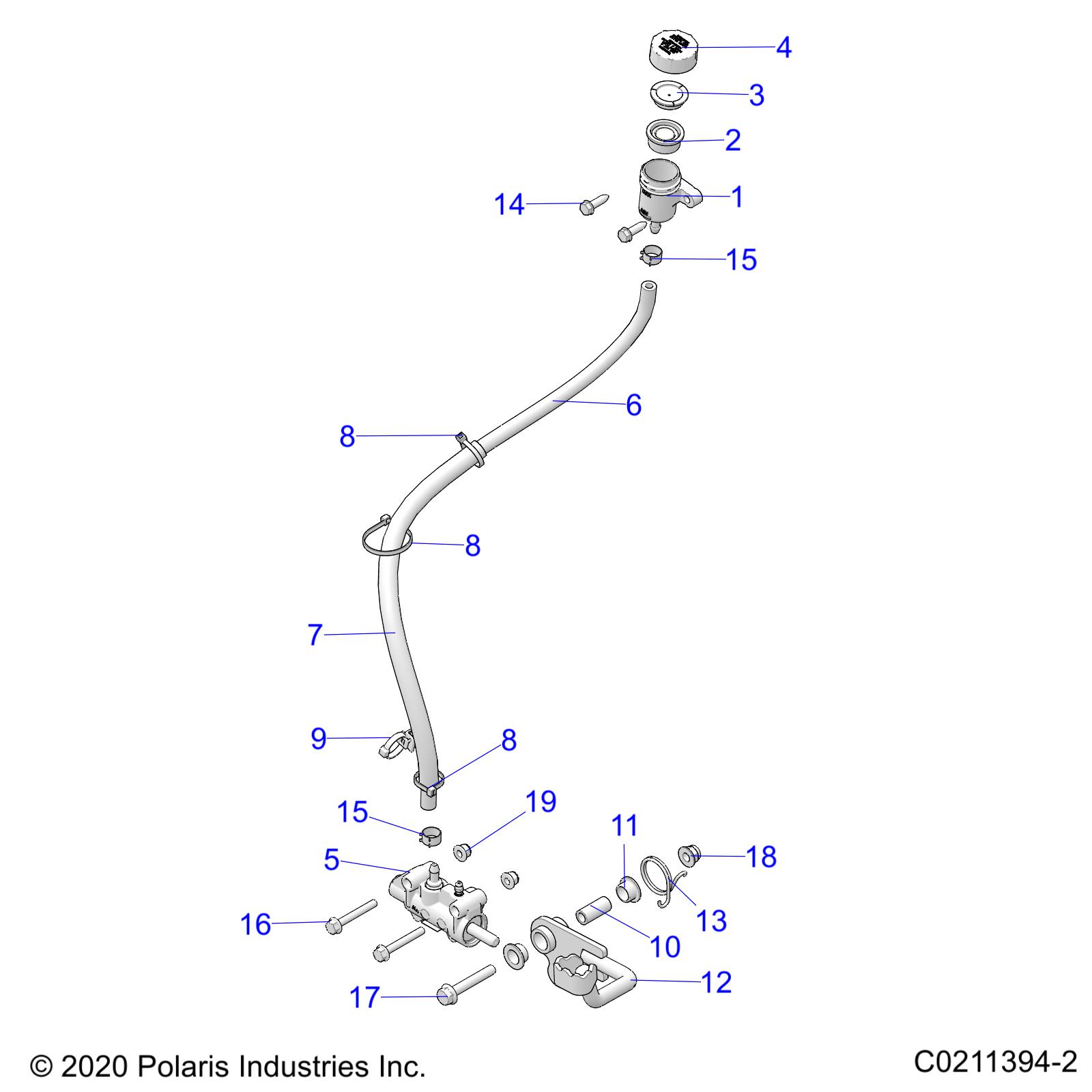

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1911224	ASM-RESERVOIR,BRAKE,TALL,2-EAR [INCL. 1-4]	1	54.73+iva
1	5437040	CUP-RESERVOIR,BRAKE	1	12.60+iva
2	5413262	DIAPHRAGM, RESERVOIR, BRAKE	1	8.37+iva
3	5437041	RING, RESERVOIR, BRAKE	1	10.47+iva
4	5437039	CAP-RESERVOIR,BRAKE	1	10.47+iva
5	1913815	ASM-M/CYL,DIRMC,3/4HO,B/U-RING [INCL. HOSE, CLAMPS]	1	150.42+iva
6	1911267-559	Hose, Reservoir Esta Referencia foi alterada para : 1911267-790	1	Alterada
7	8450226-330	SHEATH-REFLECTSLEEVE,VTR,330MM	1	25.02+iva
8	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	3	3.12+iva
8	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	3	3.12+iva
8	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	3	3.12+iva
9	7082402	CLIP-EDGE, 1-3mm THICKNESS	1	9.82+iva
10	5343053	TUBE-SPACER	1	7.35+iva
11	5433189	BUSHING, PIVOT, PEDAL	2	5.72+iva
12	1914416-458	WELD-BRAKE,PEDAL,M.BLK	1	135.75+iva
13	7041750	SPRING-TORSION,BRAKE	1	18.00+iva
14	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	2	5.72+iva
15	7080003	HOSE CLAMP, RED	2	2.68+iva
15	7080003	HOSE CLAMP, RED	2	2.68+iva
16	7517950	SCR-M6X1.0X45 HX-FL-Y/D	2	7.35+iva
17	7520105	SCREW, M8x50	1	7.13+iva
18	7548028	NUT-HXFL-M8X1.25 8 ZTB NYL	1	2.85+iva
19	7548027	NUT-HXFL-M6X1.0 8 ZTB NYL	2	1.63+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
