R24E3GC4BD/B9

AnteriorPróximo

ELECTRICAL, WIRE HARNESS, COMPONENTS

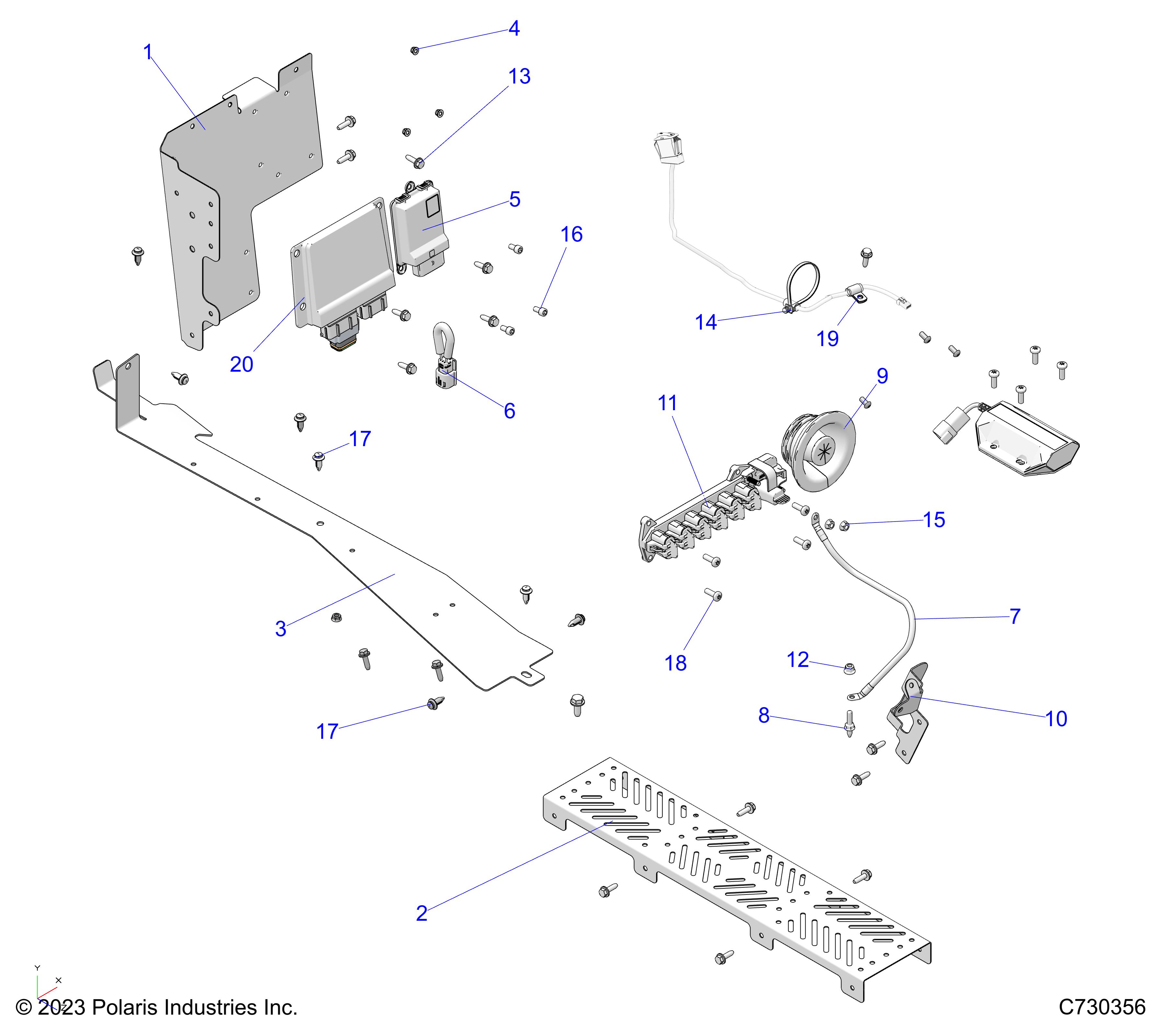

Diagrama Polaris
#ReferenciaDescriçãoQuant(*)PVPStock
1 5272302-329BRKT-CONTROLLER MNT,ECOAT 168.88+ivaStock Consultar
2 5273339-329BRKT-CHASSIS RTNG,FRT,BLK 153.85+ivaStock Consultar
3 5273338-329BRKT-CHASSIS RTNG,REAR,BLK 173.80+ivaStock Consultar
4 7547829NUT-HXFL-M5X0.8 8 ZPC NYL 35.77+ivaStock Consultar
5 2416095VCM-PGM,RGR,FS,EV,DRIVELINE Esta Referencia foi alterada para : 4080020 1AlteradaStock Consultar
6 4080686CAP-SRV LOOP 1108.25+ivaStock Consultar
7 4080965CABLE-BAT TO GND 143.07+ivaStock Consultar
8 7519333STUD-M6X1.0X19-M6 TAPTITE 112.40+ivaStock Consultar
9 5417082GROMMET-HOOD LINER,SPLIT 111.17+ivaStock Consultar
10 5268050-329BRKT-ROUTING,BLK 132.30+ivaStock Consultar
11 4016007BLOCK-TERMINAL,3 POST,TALL [INCL. FUSE, PLUG & COVER] 168.03+ivaStock Consultar
11 4013891FUSE-CARTRIDGE,40A 147.37+ivaStock Consultar
11 5454283PLUG,ACCY TB 171.08+ivaStock Consultar
11 5454284COVER,TB,JCASE 147.37+ivaStock Consultar
12 7547274NUT-M6 FLANGE,NYLOC 12.15+ivaStock Consultar
13 7518529SCR-M6X1.0X20, HXHD, FLG, TDFM, BK 32.15+ivaStock Sim
14 7080138CABLE-TIE,DIA12-50MM,WTHR-RES. 13.12+ivaStock Consultar
15 7547270NUT-HXFLGHD, M6, SERRATED 27.20+ivaStock Consultar
16 7518817SCREW-BTNHD,M5X.8X12,0600129 37.20+ivaStock Consultar
17 7661855RIVET-TUFLOK,.315-.325X.787 32.15+ivaStock Consultar
17 7661855RIVET-TUFLOK,.315-.325X.787 32.15+ivaStock Consultar
18 7519731SCR-TXPH-#14 X .75 HI-LO RIE 87.20+ivaStock Consultar
19 7081246CLAMP, WIRE/TUBE .25 DIA 12.15+ivaStock Consultar
20 4081837MBB-HARD,BLANK 1991.85+ivaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
