R24X6L1RAH/AS/BH/BS

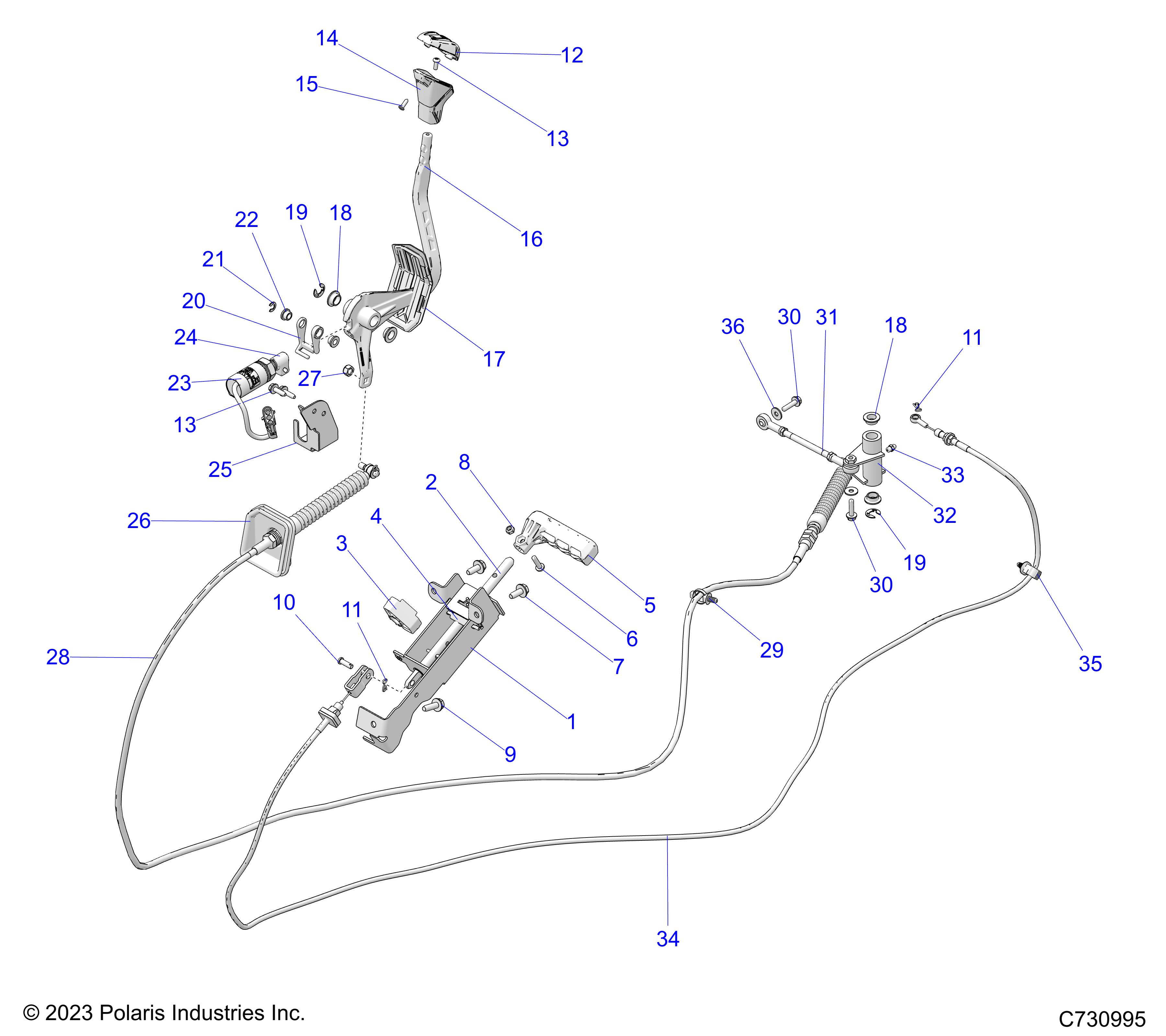

DRIVE TRAIN, GEAR SELECTOR

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	7082972	ASM-LEVER,DISCONNECT [INCLUDES 2-4]	1	84.43+iva
2	5144197	ROD-DISCONNECT Consulte-nos podemos ter uma solução	1	Obsoleta
3	5458960	REACTION BLOCK	1	2.85+iva
4	5639428	LOCKING PAWL	2	28.43+iva
5	5465338	HANDLE-DISCONNECT	1	28.87+iva
6	7518535	SCR-TXPHM6X1.0X25 8.8 RIE	1	5.72+iva
7	7518555	SCR-TFHFL-M8X1.25X20 CHS ZOD	2	7.13+iva
8	7546703	NUT-6MM X 1 NYLOK-Z	1	4.28+iva
9	7519156	SCR-HXFL,M8X1.25X25,ZOD,TAP/R	1	7.13+iva
10	7661843	PIN-CLEVIS, 1/4 X 3/4 -Y	1	7.13+iva
11	7661140	PIN, CLIP, 14MM	2	5.72+iva
11	7661140	PIN, CLIP, 14MM	2	5.72+iva
12	5465362	COVER-SHIFT	1	25.02+iva
13	7512024	SCR-#10-24X1/2PH/TORX-TRIRD-Y	1	7.13+iva
13	7512024	SCR-#10-24X1/2PH/TORX-TRIRD-Y	1	7.13+iva
14	5459024	KNOB-GEAR SELECTOR SHIFT	1	8.37+iva
15	7519091	SCR-#10X1/2-HI/LO-PN-T25, TRX-M	1	4.28+iva
16	5639200-458	SHIFT-LEVER,CAST,BLK	1	142.90+iva
17	5418042	GROMMET-SHIFTER	1	12.27+iva
18	5439274	BUSHING-PEDAL PIVOT	4	15.98+iva
18	5439274	BUSHING-PEDAL PIVOT	4	15.98+iva
19	7710901	RING-RETAINING, "E",EXT., .500	2	12.60+iva
19	7710901	RING-RETAINING, "E",EXT., .500	2	12.60+iva
20	5639653	LATCH-INTERLOCK,CAST	1	15.98+iva
21	7710701	RING, RETAINING, E CLIP	1	5.70+iva
22	3515150	BRG-FLANGE,8X12X8MM	2	4.28+iva
23	4082120	INTERLOCK-SOLENOID	1	211.95+iva
24	5418523	ISOLATOR-INTERLOCK	1	+iva
25	5274733-329	WELD-INTERLOCK BRKT,BLK	1	17.05+iva
26	5418041	GROMMET-SHIFT CABLE	1	15.98+iva
27	7547144	NUT-NYLOCK M8X1.25-Y	1	4.28+iva
28	7082992	CABLE-SHIFT,CREW	1	172.48+iva
29	7081496	CLIP-ROUTING	1	7.13+iva
30	7518533	SCR-HXFL-M6X1.0X25 8.8 RIE	2	5.72+iva
30	7518533	SCR-HXFL-M6X1.0X25 8.8 RIE	2	5.72+iva
31	1027314	ASM-LINKAGE,SHIFTER,1500 Esta Referencia foi alterada para : 1029317	1	Alterada
32	1028828-329	WELD-SHIFTER,BELLCRANK,BLK	1	35.53+iva
33	7080424	FITTING-LUBRICATION 1/4-28	1	7.13+iva
34	7082987	CABLE-DISC,CREW	1	144.50+iva
35	7082928	CLIP FIR-TREE,6.5X12.5MM	1	4.28+iva
36	7556565	WASHER-6.4X18.0X1.6 ZC	2	4.28+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
