Z24ASE87A5

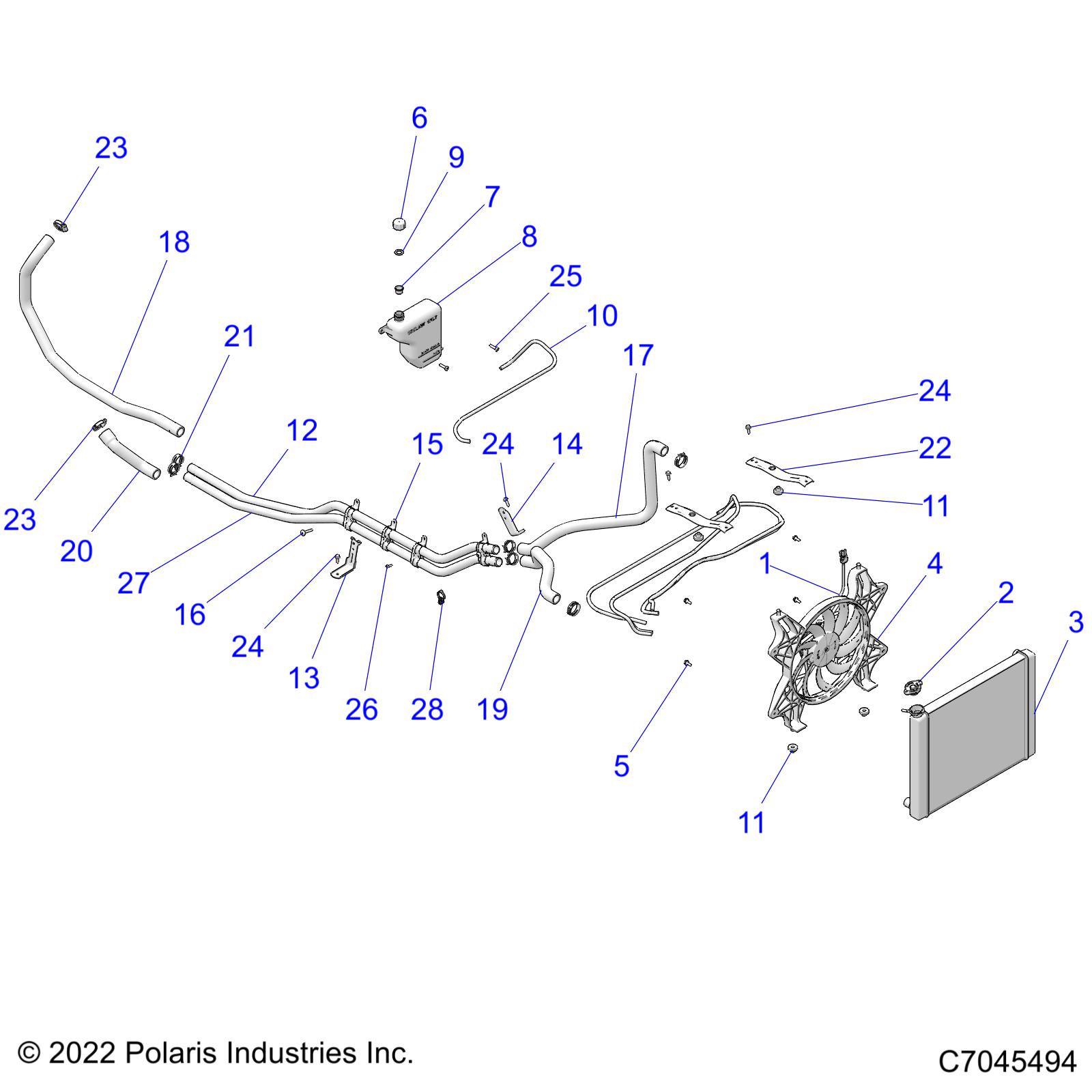

ENGINE, COOLING SYSTEM

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1240712	ASM., RADIATOR [INCL. 2-5]	1	892.96+iva
2	1240694	CAP	1	71.05+iva
3	1240745	ASM., RADIATOR, CORE	1	722.24+iva
4	2412447	FAN-ASSEMBLY	1	400.39+iva
5	7519585	BOLT, M6X15MM	4	12.91+iva
6	5430743	CAP-OVER FLOW BOTTLE,DRILLED	1	10.90+iva
7	5433774	PLUG-CAP 9X(GREEN) FLEX TEMP	1	10.90+iva
8	5439202	TANK-SURGE	1	151.87+iva
9	5810279	GASKET-OVERFLOW CAP	1	4.31+iva
10	8450003-95	FUEL LINE-95 CENTIMETERS Esta Referencia foi alterada para : 8450003-100	1	Alterada
11	7052028	GROMMET-FLANGED,.36X.56X1.06	4	9.91+iva
11	7052028	GROMMET-FLANGED,.36X.56X1.06	4	9.91+iva
12	5141611	TUBE-COOLANT,1"	1	78.95+iva
13	5259433-329	BRACKET, COOLANT TUBE, BLACK	1	32.29+iva
14	5260766-329	BRACKET, COOLANT TUBE, BLACK	1	32.29+iva
15	5451221	BRACKET-COOLANT TUBE	3	12.40+iva
16	7519001	SCR-TXTH-M6X1.0X50, 8.8, ZPB	2	7.20+iva
17	5414528	HOSE, UPPER, RADIATOR	1	100.99+iva
18	5415451	HOSE, ENGINE OUTLET, REAR	1	71.05+iva
19	5414532	HOSE, LOWER, RADIATOR, LONG	1	71.05+iva
20	5414533	HOSE, ENGINE INLET, REAR	1	55.26+iva
21	7080844	SPRINGBAND-CLAMP 35/12,BLK	6	13.99+iva
22	5256879-329	BRACKET, UPPER RADIATOR MOUNT, BLACK	2	37.67+iva
23	7081192	CLAMP-HOSE(WORM DR)25-40MM	2	12.40+iva
23	7081192	CLAMP-HOSE(WORM DR)25-40MM	2	12.40+iva
24	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	4	2.15+iva
24	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	4	2.15+iva
24	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	4	2.15+iva
25	7518158	SCR-#14X1 HI/LO-PH-PN TRX-M	2	7.43+iva
26	7512026	SCREW-#10X3/4-HI/LO-PN-T25,TRX-M	1	2.15+iva
27	5141612	TUBE-COOLANT,1"	1	79.35+iva
28	7082427	CLIP- EDGE, 1-3MM THICKNESS	1	8.68+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
