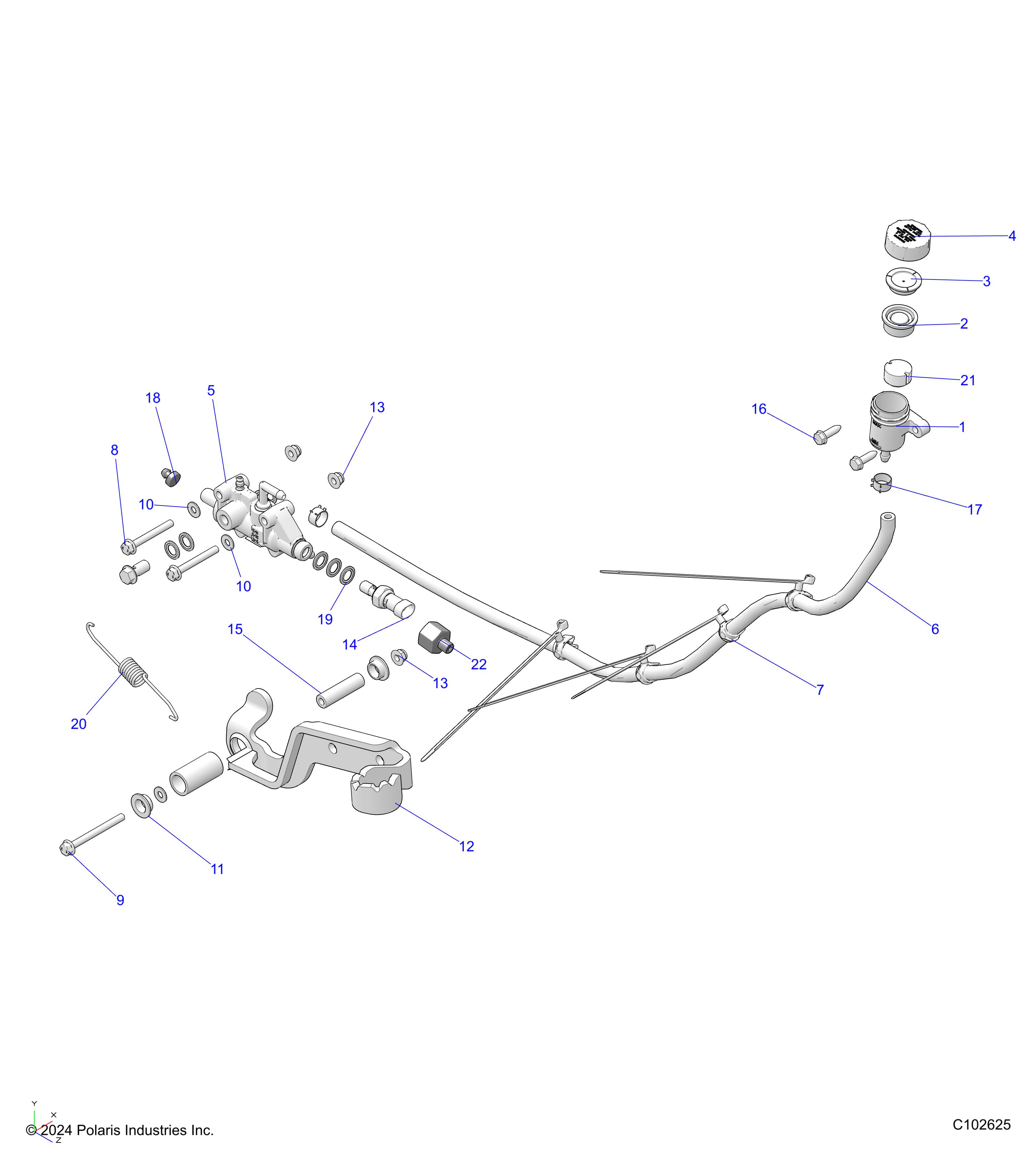

A25SWE57F1/C1

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1914158	ASM-RESERVOIR,BRAKE,FLS [INCL. 2-4]	1	49.75+iva
1	5418431	CUP-FLS-RES,BRAKE	1	+iva
2	5418432	DIAPHRAM-FLS-RES,BRAKE	1	7.60+iva
3	5418433	RING-FLS-RES,BRAKE	1	9.52+iva
4	5418434	CAP-FLS-RES,BRAKE	1	+iva
5	1914172	ASM-DIRMC,3/4,B/U-RING,90DEG [INCL. HOSE, CLAMPS]	1	143.57+iva
6	1911267-805	HOSE-RESERVOIR,BRAKE,805MM	1	17.20+iva
7	7082593	CLIP-MOD OMEGA,1X12MM OD HOSE	4	5.72+iva
8	7521331-50	SCR-HXFL-M6X1.0X50 10.9 ZFB	2	2.85+iva
9	7521331-65	SCR-HXFL-M6X1.0X65 10.9 ZFB	1	4.28+iva
10	7558203	WASHER-.250X.563X.047 WRGHT-Y	3	5.72+iva
10	7558203	WASHER-.250X.563X.047 WRGHT-Y	3	5.72+iva
11	5439274	BUSHING-PEDAL PIVOT	2	15.98+iva
12	1027737-458	WELD-BRAKE,PEDAL,BLK	1	135.75+iva
13	7547453	NUT-HXFL-M6X1.0 8 ZB3 NYL	3	5.72+iva
13	7547453	NUT-HXFL-M6X1.0 8 ZB3 NYL	3	5.72+iva
14	4081979	SWITCH-BRK,M10X1.25,SGL,30-40 [FOR USE WITH FOOT MASTER CYLINDER] Esta Referencia foi alterada para : 2891032	1	Alterada
15	5143138	SHAFT-PIVOT,BRAKE PEDAL ASM	1	17.67+iva
16	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	2	5.72+iva
17	7080003	HOSE CLAMP, RED	2	2.68+iva
18	5414486	BUMPER, RUBBER, 13.50 DIA X4.3 THK	1	4.17+iva
19	5413212	SEAL-STAT-0-3/8, 70EP	4	11.72+iva
20	7046090	SPRING-RETURN,BRK,PEDAL,2.3	1	18.00+iva
21	5418577	FLOAT-SENSOR,RESERVOIR,BRK	1	16.37+iva
22	5511064	REDUCER,FLS,1.0MM	1	+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
