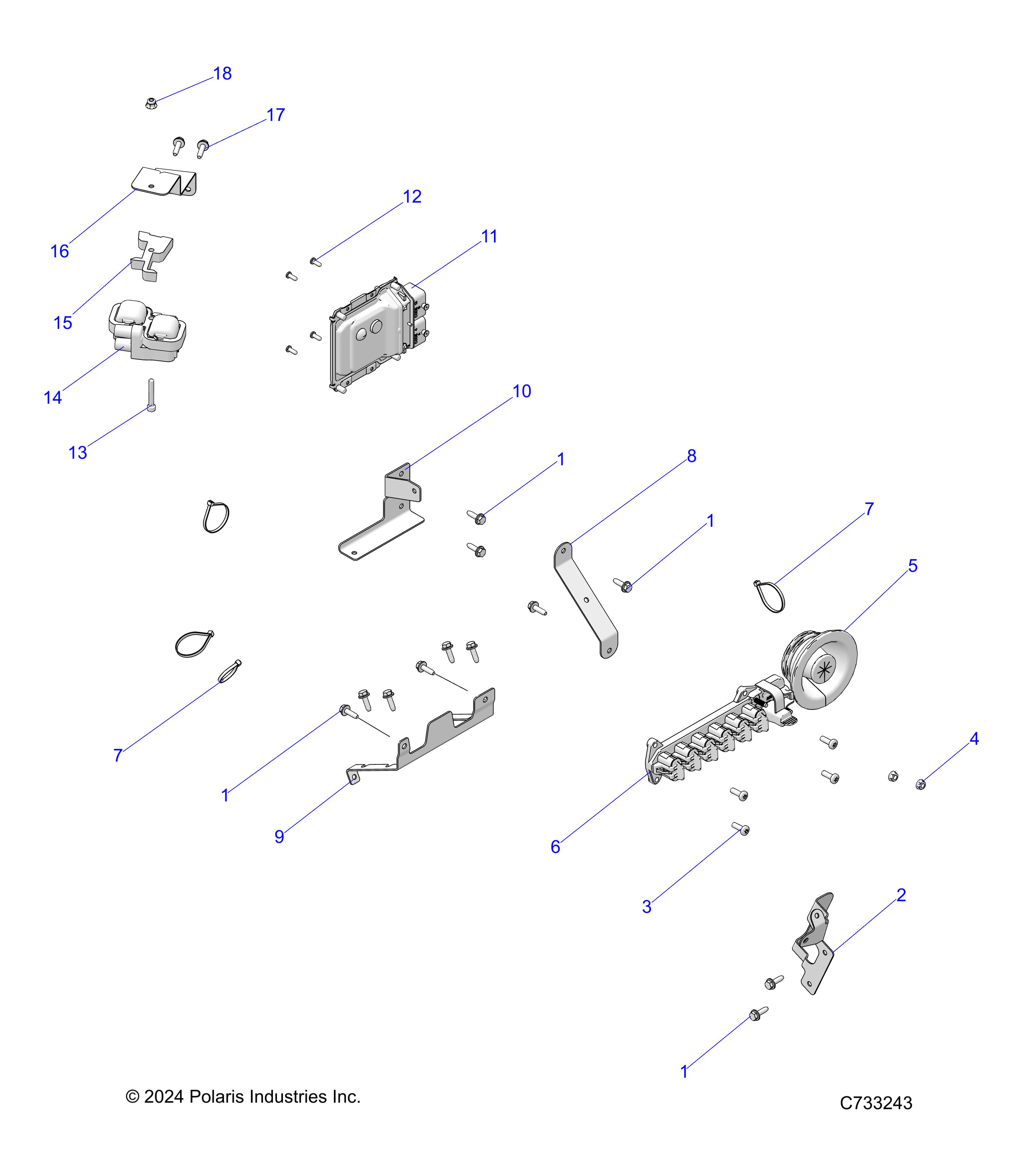

R25RSU99A9/AL/AS/AP/B9/BL/BS/BP

ELECTRICAL, WIRE HARNESS, COMPONENTS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	12	5.72+iva
1	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	12	5.72+iva
1	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	12	5.72+iva
1	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	12	5.72+iva
2	5268050-329	BRKT-ROUTING,BLK	1	26.65+iva
3	7519731	SCR-TXPH-#14 X .75 HI-LO RIE	4	5.72+iva
4	7547270	NUT-HXFLGHD, M6, SERRATED	4	5.72+iva
5	5417082	GROMMET-HOOD LINER,SPLIT	1	9.82+iva
6	4016007	BLOCK-TERMINAL,3 POST,TALL [INCLS. FUSE, PLUG, AND COVER]	1	67.37+iva
6	5454283	PLUG,ACCY TB	6	62.55+iva
6	5454284	COVER,TB,JCASE	1	39.08+iva
6	4013891	FUSE-CARTRIDGE,40A	1	46.92+iva
7	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	AR	3.12+iva
7	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	AR	3.12+iva
8	5265908-458	BRKT-WIRE GUIDE,BLK	1	7.35+iva
9	5271546-329	BRKT-FUSE HOLDER,PREM,BLK	1	26.65+iva
10	5264314	BRKT-HARNESS ROUTING	1	13.85+iva
11	4018203	ECM-HARD,MG1,112P DEPOP [DEALER INSTALL REQUIRED]	1	994.95+iva
12	7519091	SCR-#10X1/2-HI/LO-PN-T25, TRX-M	4	4.28+iva
13	7518780	SCR-M6X1.0X40,HX/SOC/CP-B	1	5.72+iva
14	4010425	COIL-EFI Esta Referencia foi alterada para : 2876049	1	Alterada
15	5436577	SPACER-COIL MOUNT	1	5.72+iva
16	5263891	BRKT-COIL MOUNT	1	11.72+iva
17	7520715	SCR-TFHFL-M6X1.0X25,ZY3	2	5.72+iva
18	7548027	NUT-HXFL-M6X1.0 8 ZTB NYL	1	1.63+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
