R25CDA57A1

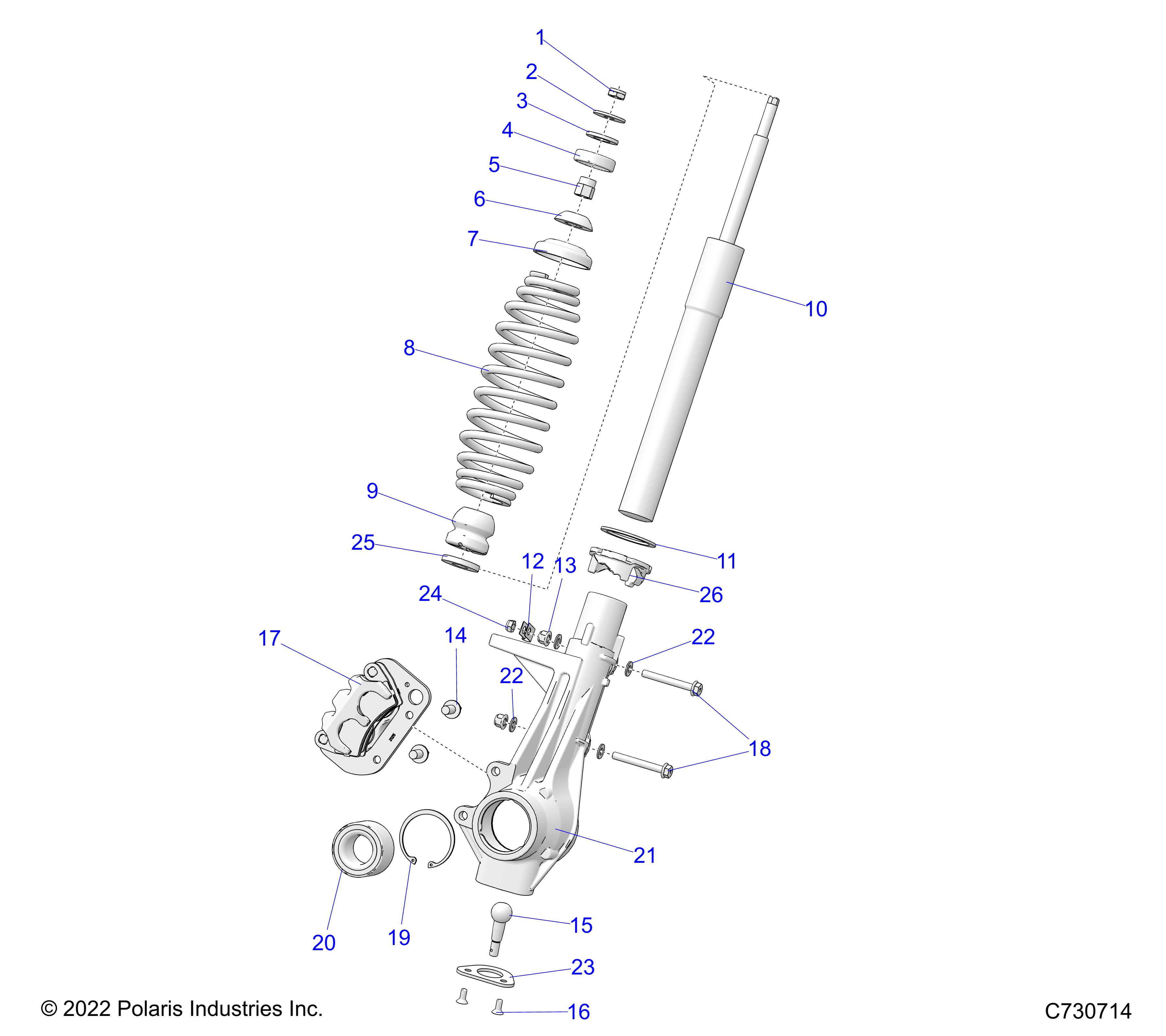

SUSPENSION, FRONT STRUT

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	7547104	NUT-1/2-20 NYLOK,THIN HT-Y	1	5.72+iva
2	7555749	WSHR-.500X1.50-12GA-Y	1	5.72+iva
3	5810291	SPACER-RUBBER	1	5.72+iva
4	5432872	PIVOT-BALL,TOP,DELRIN	1	11.72+iva
5	5132062	SPACER-1/2-20,STRUT	1	21.32+iva
6	5432871	PIVOT-BALL,BOTTOM,DELRIN	1	11.72+iva
7	5243364	RETAINER-SPRING,STRUT	1	31.27+iva
8	7044466-458	SPR-68-165# 14.6FL MATTE BLK	1	107.17+iva
9	5412665	BUMPER-MCU,17.8MM ID	1	8.58+iva
10	7044149	STRUT-FRONT	1	198.27+iva
11	5211115	WASHER-2.06X2.62X.105-Y	1	5.72+iva
12	7080367	CLAMP-CABLE	1	7.13+iva
13	7547332	NUT- M8X1.25, FLG, NYLOC-OLIVE D	2	5.72+iva
14	7518558	BOLT-M10X1.25X20,HXFLG-OLV D	2	5.72+iva
15	7061158	BALL-JOINT,GREASELESS,STRUT	1	121.47+iva
16	7512284	SCR-1/4-20X5/8 FL HX SOC CP-Y	2	5.72+iva
17	-------	ASM-FRONT BRAKE CALIPER [REFERENCE ONLY]	1	+iva
18	7519212	SCR-M8X1.25X65-HX/FL-Y,CL 10.9	2	7.13+iva
19	7710507	RING-RETAINING,2.500 INTERNAL	1	7.13+iva
20	3514634	BEARING-WHEEL, 35X64X37MM	1	53.58+iva
20	3515088	BEARING-WHEEL,35X64X37MM HD [HD OPTION]	1	71.62+iva
21	1824515	ASM-HUBSTRUT,LH [INCLS. 15,16,19,20,23]	1	503.48+iva
21	1824516	ASM-HUBSTRUT,RH [INCLS. 15,16,19,20,23]	1	503.48+iva
22	7558402	WASHER-.344X.688X.063 FL-Y	4	2.85+iva
22	7558402	WASHER-.344X.688X.063 FL-Y	4	2.85+iva
23	5211121	BRACKET-BALL JOINT	1	31.98+iva
24	7542344	NUT-5/16-18,NYLOC,THIN-Y	2	7.13+iva
25	1501212	SPACER-STRUT	1	2.85+iva
26	5639458	RETAINER-SPRING,ALUMN	1	11.03+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
