R24RSU99AJ/AK/AZ/A9/BJ/BK/BZ/B9

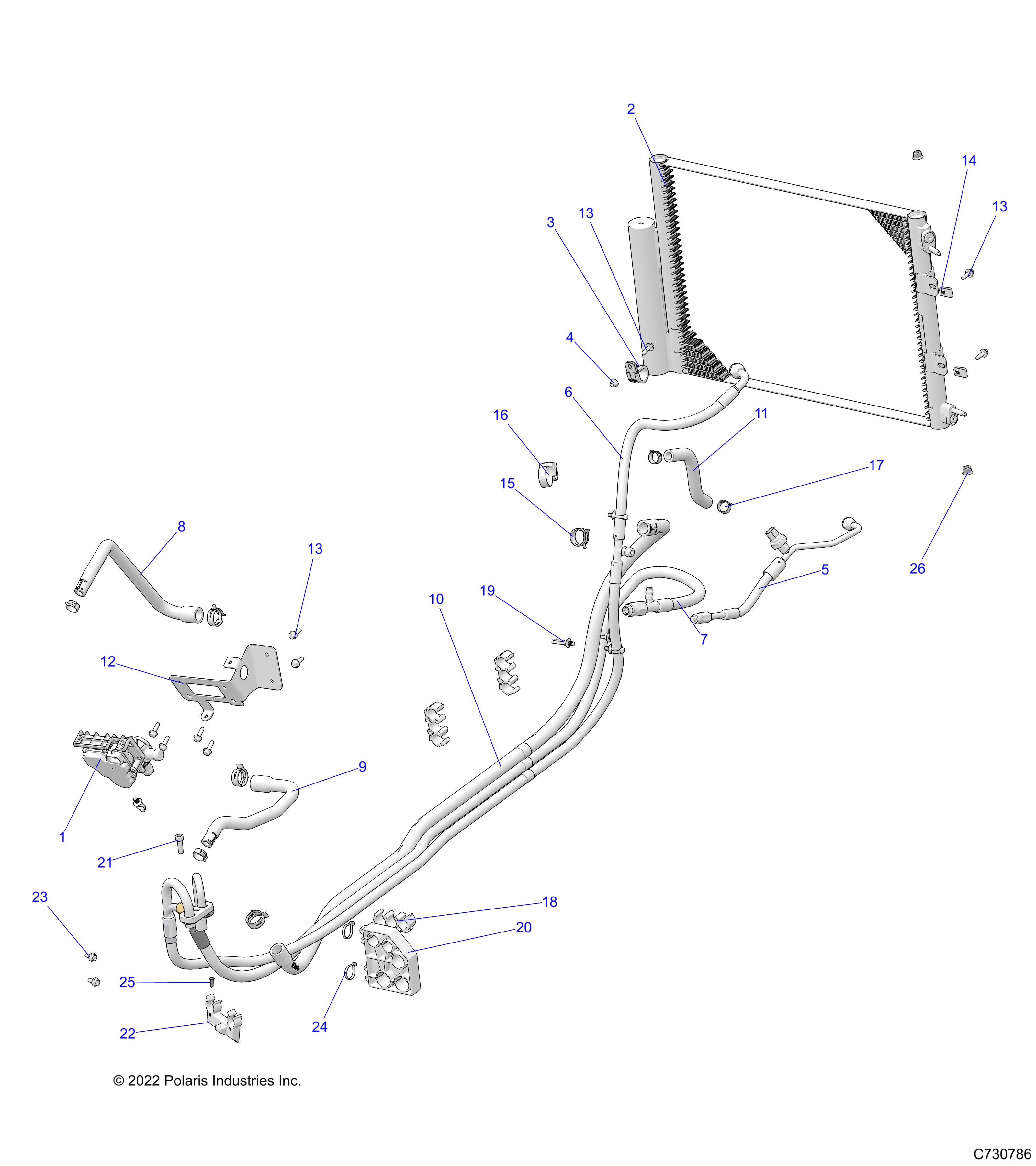

BODY, HVAC ROUTINGS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2415244	ASM-VALVE,3-WAY	1	341.87+iva
2	2416063	CONDENSOR-HVAC,RGR	1	1275.58+iva
3	7082364	CLAMP-P,.75X.28 HOLE,RUBBER	1	26.65+iva
4	7547339	NUT-M6X1.0, FLG-NYLOC-OLIVE D	1	4.28+iva
5	5417850	HOSE-A/C,CONDENSER,LWR	1	362.37+iva
6	5417852	HOSE-HVAC,RGR,CREW	1	519.61+iva
7	5417851	HOSE-HVAC,RGR,CREW	1	629.01+iva
8	5416918	HOSE-HEATER,ENG OUT TO 3 WAY	1	62.55+iva
9	5416357	HOSE-COOLANT,3WAY TO ENG	1	39.08+iva
10	5416429	HOSE-COOLANT,HEATER 3WAY,CREW	1	157.25+iva
11	5416358	HOSE-HEATER RETURN	1	25.02+iva
12	5263842-329	BRKT-MNT,3WAY,VALVE,BLK	1	42.65+iva
13	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	9	5.72+iva
13	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	9	5.72+iva
13	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	9	5.72+iva
14	7547674	NUT-M6-1.0, U-TYPE (2.5-3.8)	2	5.72+iva
15	7080841	SPRINGBAND-CLAMP 27/12,GREEN	4	9.82+iva
16	7081807	CABLE-TIE,DIA14-45MM,DUAL-LOOP	1	11.03+iva
17	7081026	CLAMP-HOSE,SPRING .81	4	11.03+iva
18	5453897	CLIP-ROUTING,HVAC	3	7.13+iva
19	7081496	CLIP-ROUTING	5	7.13+iva
20	5417945	GROMMET-ROUTING	1	21.32+iva
21	7519859	SCREW-SH-M8X1.25X25 8.8 ZPC	1	7.35+iva
22	5417853	CLIP-ROUTING,HVAC	1	7.13+iva
23	7519236	SCR-HXFL-M6X1.0X16 8.8 ZYL NYL	2	5.72+iva
24	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	2	3.12+iva
25	7519091	SCR-#10X1/2-HI/LO-PN-T25, TRX-M	1	4.28+iva
26	7547332	NUT- M8X1.25, FLG, NYLOC-OLIVE D	2	5.72+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
