Z25R4P2KAE/BE

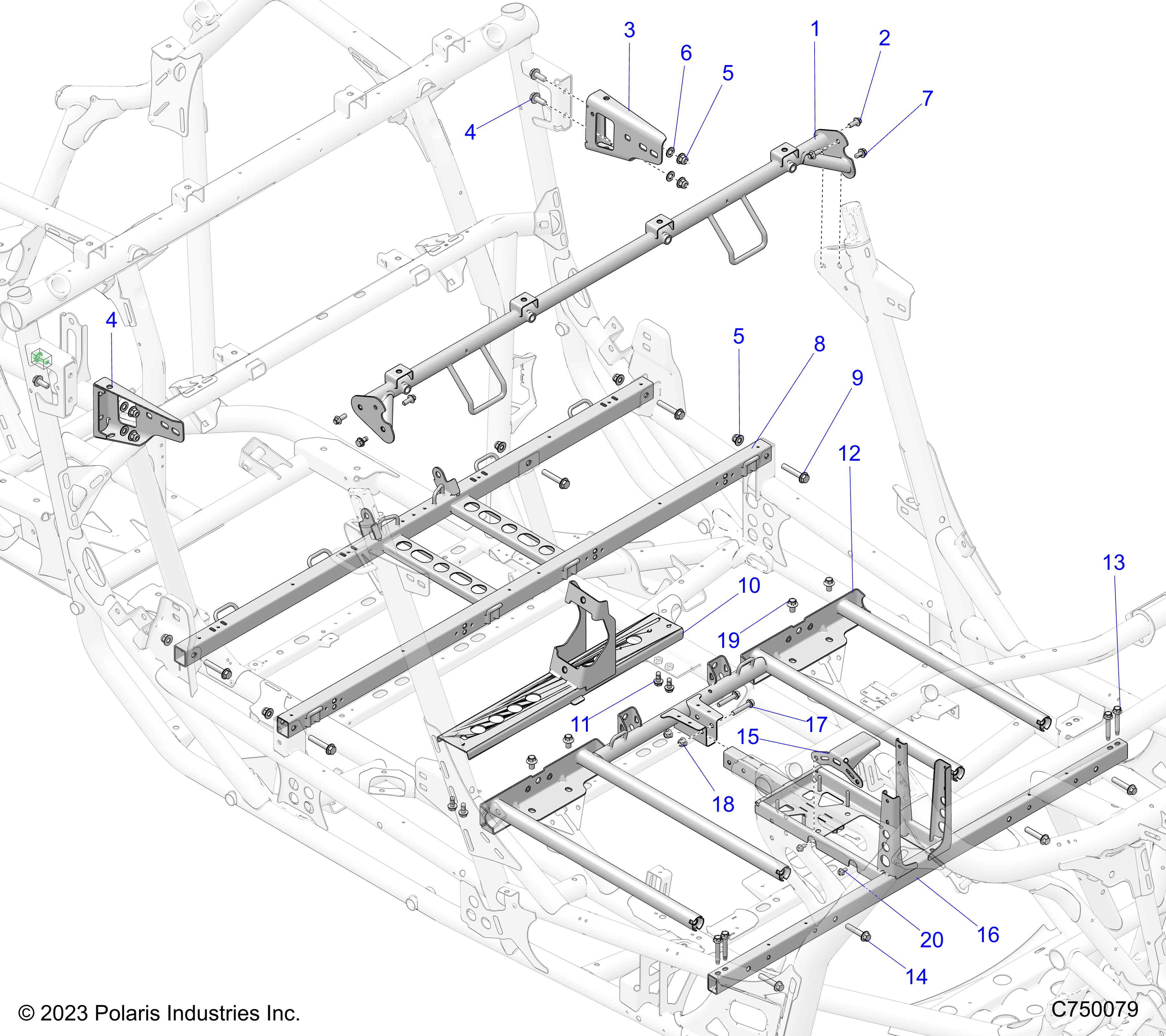

CHASSIS, MOUNTING AND BRACKETS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1028541-458	WELD-FRAME,CROSS BAR,MP,BLACK	1	+iva
2	7517838	SCR-HXFL-M8X1.25X20 10.9 ZPB	4	9.82+iva
3	5274066-458	BRKT-MOUNT,HINGE,UPR,LH,BLK	1	77.95+iva
4	5274067-458	BRKT-MOUNT,HINGE,UPR,RH,BLK	1	77.95+iva
4	5274067-458	BRKT-MOUNT,HINGE,UPR,RH,BLK	1	77.95+iva
5	7547423	NUT-M10X1.5 HFN NYLOC ZOD	11	5.72+iva
5	7547423	NUT-M10X1.5 HFN NYLOC ZOD	11	5.72+iva
6	7556153	WASHER-3/8 FW SAE STL THRU-HRD	4	7.13+iva
7	7518695	BOLT-M8X1.25X16,HXHDFLG,W/PTCH	2	5.72+iva
8	1024042-329	WELD-SEAT BASE,REAR,MP,ECOAT	1	471.76+iva
9	7518474	SCR-HXFL-M10X1.5X55 8.8 ZY3	5	7.13+iva
10	1025195-329	WELD-MOUNT,PROPSHAFT,ECOAT	1	87.68+iva
11	7518450	BOLT-M8X1.25X20,HXHDFLG,W/PTCH	4	7.13+iva
12	1025197-329	WELD-SEAT BASE,FRT,ECOAT	1	451.25+iva
13	7519245	SCR-HXFL-M8X1.25X50 DP ZODP30	4	7.13+iva
14	7518687	SCR-M10X1.50X50 HX/FL-Y	4	7.35+iva
15	5274421-329	BRKT,SUPPORT,CLUTCH-DUCT,ECOAT	1	21.32+iva
16	1028545-329	WELD-SCM MOUNT,PRO R,MP,ECOAT	1	+iva
17	7516732	SCR-SH-M8X1.25X30 8.8 ZPC	2	5.72+iva
18	7547332	NUT- M8X1.25, FLG, NYLOC-OLIVE D	2	5.72+iva
19	7517951	SCR-HXFL-M10X1.5X16 8.8 ZPB	4	7.35+iva
20	7521331-12	SCR-HXFL-M6X1.0X12 10.9ZFB	2	5.72+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
