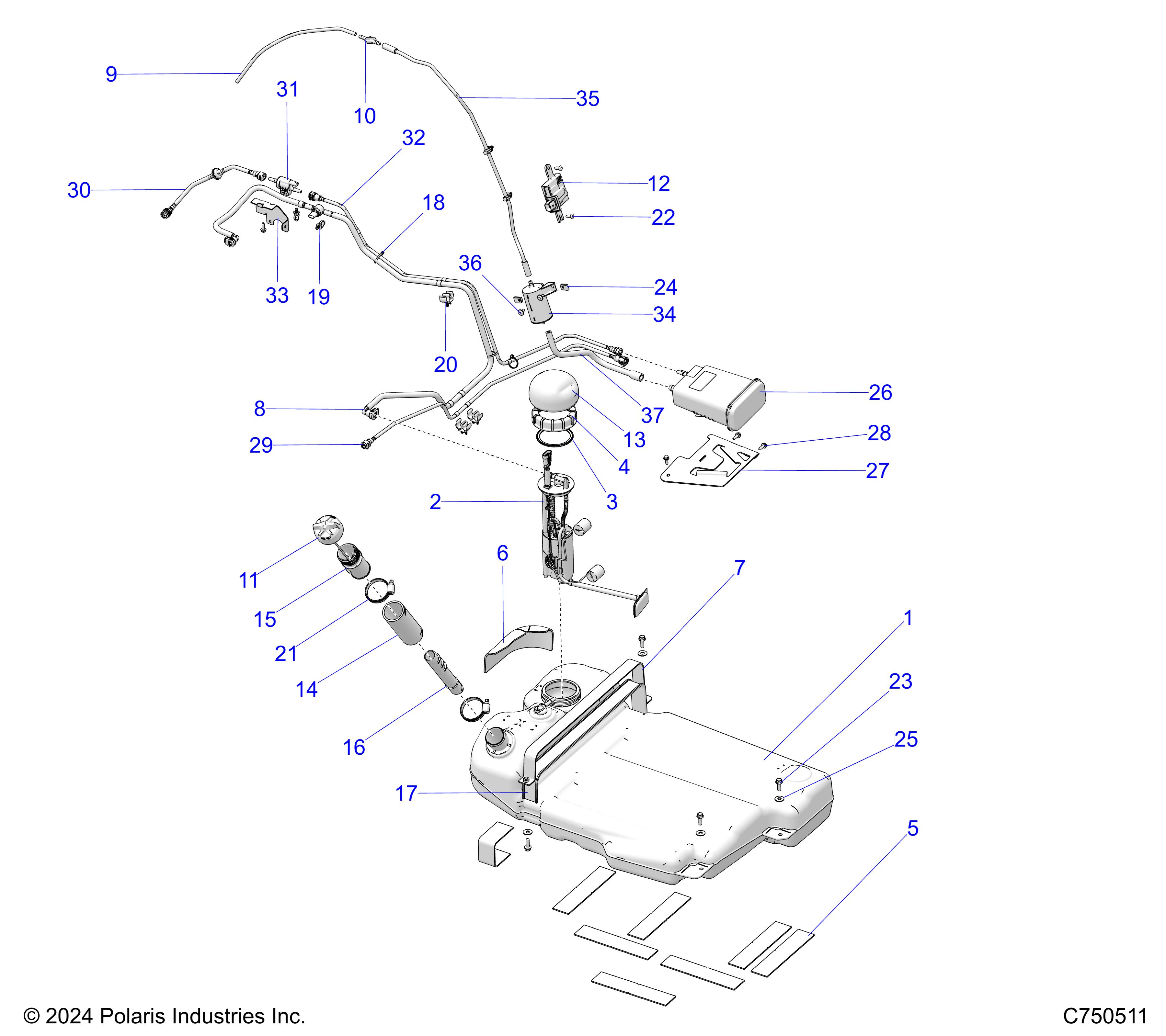

Z25SPD92AA/AF/AL/BA/BL/BF

FUEL SYSTEM, EVAP

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2638042	ASM-FUEL TANK,RZR,12 GAL [INCL. 2-6]	1	1586.71+iva
2	2211788	K-FUEL PUMP [INCL. 3 & 4]	1	683.71+iva
3	5413451	GASKET-PFA,RIBBED	1	31.98+iva
4	5437138	NUT-MASON JAR	1	42.65+iva
5	5814781	PAD-TANK,MOUNT	8	5.72+iva
6	5814906	SHIELD-FUEL TANK	1	39.08+iva
7	1027697-329	BRKT-STRAP,FUEL TANK,ECOAT	1	37.32+iva
8	2522365	ASM-FUEL LINE,SUPPLY	1	314.50+iva
9	2522401	ASM-LINE,VENT TERM	1	46.92+iva
10	5457446	FITTING-VENT LINE,35	1	16.20+iva
11	2522651	CAP-GAS TANK,TETHER	1	54.73+iva
12	2522698	ASM-FUEL PUMP,CONTROL,MODULE	1	266.63+iva
13	2522746	COVER-PFA,WALBRO	1	28.43+iva
14	5414709	HOSE, FUEL FILL	1	85.73+iva
15	5455329	NECK-FUEL FILL,OUTER	1	23.45+iva
16	5466555	TUBE-FUEL FILL,INNER	1	25.02+iva
17	5522265	PAD-STRAP,RUBBER	1	46.92+iva
18	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	3	4.17+iva
19	7081496	CLIP-ROUTING	4	7.13+iva
20	7082454	CLIP-DOUBLE	3	7.35+iva
21	7083059	CLAMP-HOSE,25-77 DIA,PLASTIC	2	8.58+iva
22	7519045	SCR-TX TRUSS-#14X3/4, HI/LO ZBK	2	4.28+iva
23	7519243	SCR-HXFL-M8X1.25X25 8.8 ZODP30	4	7.13+iva
24	7547674	NUT-M6-1.0, U-TYPE (2.5-3.8)	2	5.72+iva
25	7555976	WASHER-.390X.940X.060,FL-Y	4	7.13+iva
26	2521786	CANISTER-ACTIVATED CARBON	1	114.32+iva
27	5267375-329	BRKT-MNT CANISTER,BLK	1	31.98+iva
28	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	4	5.72+iva
29	2522079	ASM-LINE,TANK TO CANISTER	2	78.58+iva
30	2521959	ASM-LINE,PURGE TO TB	1	85.73+iva
31	2521964	VALVE-PURGE	1	84.43+iva
32	2522081	ASM-LINE,CANISTER TO PURGE	1	78.58+iva
33	5268112-329	BRKT-MNT PURGE VALVE,ECOAT	1	21.32+iva
34	2521750	FILTER-CANISTER VENT	1	68.20+iva
35	2522430	ASM-LINE,VENT TO CHASSIS	1	92.87+iva
36	7518936	SCR-M6X1X16 TR/TX-M	2	5.72+iva
37	8450210	HOSE-VENT TO CANISTER	1	54.73+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
