Z25S4D92AA/AL/BA/BF/AF/BL

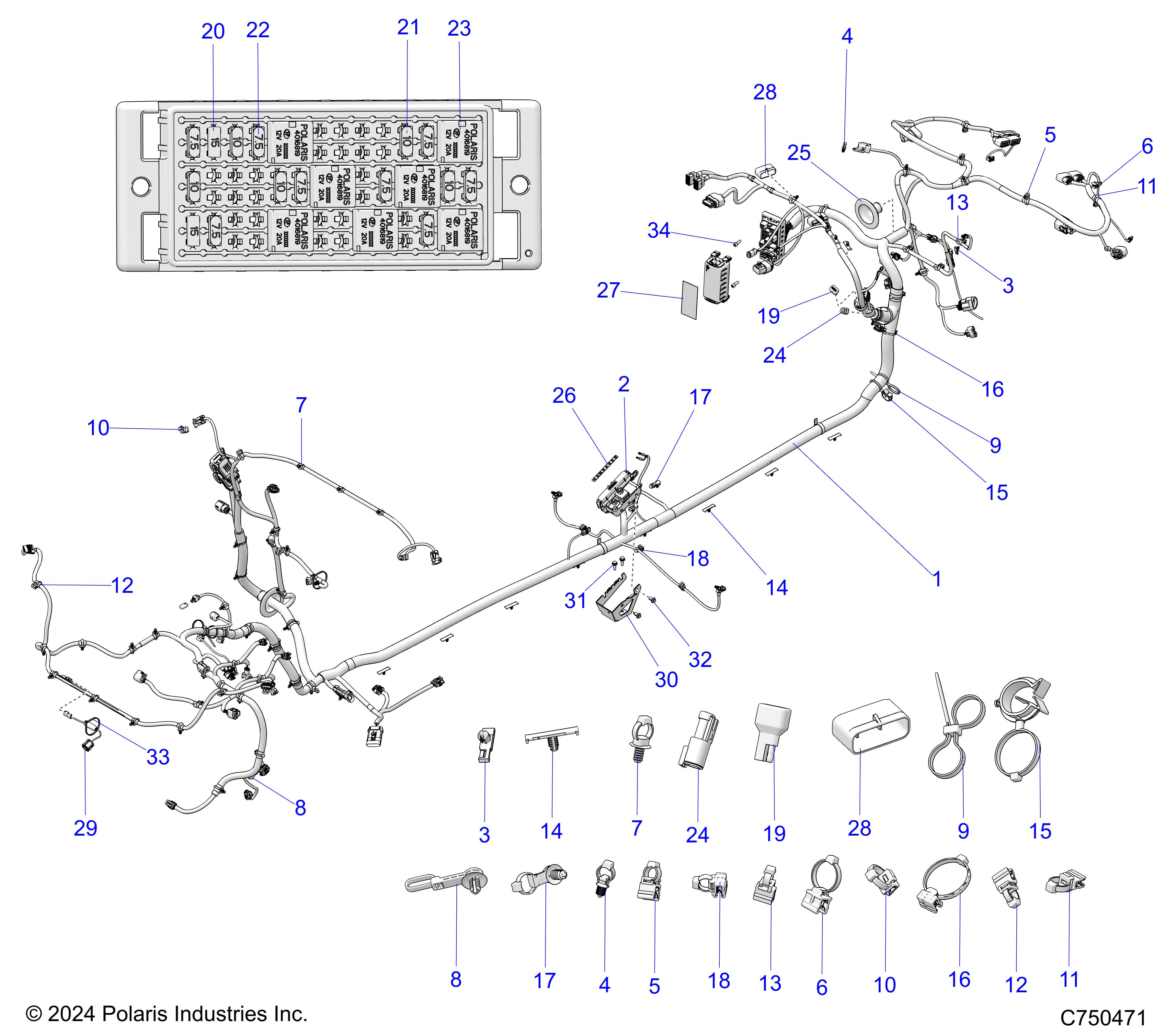

ELECTRICAL, WIRE HARNESS, CHASSIS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2417240	HARN-CHASSIS,RZR,T,74,MP,ULT [INCL. 2-28]	1	2282.52+iva
2	4017598	FUSE-PDM	1	78.58+iva
3	7082134	CLIP-FIR,HOLE6.35MM	3	5.72+iva
3	7082134	CLIP-FIR,HOLE6.35MM	3	5.72+iva
4	7082522	CLIP-ROUTING	1	5.72+iva
4	7082522	CLIP-ROUTING	1	5.72+iva
5	7082428	CLIP-EDGE,1-3MM THICKNESS	9	7.13+iva
5	7082428	CLIP-EDGE,1-3MM THICKNESS	9	7.13+iva
6	7081824	CLIP-EDGE,DIA5-50MM,OUT-SER	4	23.45+iva
6	7081824	CLIP-EDGE,DIA5-50MM,OUT-SER	4	23.45+iva
7	7081496	CLIP-ROUTING	37	7.13+iva
7	7081496	CLIP-ROUTING	37	7.13+iva
8	7082405	CLIP-OFFSET,FT6 FIR TREE	1	5.72+iva
8	7082405	CLIP-OFFSET,FT6 FIR TREE	1	5.72+iva
9	7081916	CABLE-TIE,DIA6-38MM,DUAL-LOOP	3	5.72+iva
9	7081916	CABLE-TIE,DIA6-38MM,DUAL-LOOP	3	5.72+iva
10	7082402	CLIP-EDGE, 1-3mm THICKNESS	2	9.82+iva
10	7082402	CLIP-EDGE, 1-3mm THICKNESS	2	9.82+iva
11	7081808	CLIP-EDGE,1-3MM,6-45MM,SERT.	3	10.78+iva
11	7081808	CLIP-EDGE,1-3MM,6-45MM,SERT.	3	10.78+iva
12	7081890	CLIP, EDGE, HARNESS	5	12.78+iva
12	7081890	CLIP, EDGE, HARNESS	5	12.78+iva
13	7082427	CLIP- EDGE, 1-3MM THICKNESS	1	7.35+iva
13	7082427	CLIP- EDGE, 1-3MM THICKNESS	1	7.35+iva
14	7082411	CLIP-XMAS,6.35MM HOLE,TAPE-ON	10	4.28+iva
14	7082411	CLIP-XMAS,6.35MM HOLE,TAPE-ON	10	4.28+iva
15	7082343	CLIP, OMEGA, CABLE	1	4.17+iva
15	7082343	CLIP, OMEGA, CABLE	1	4.17+iva
16	7082399	CLIP-EDGE,3-6MM THICKNESS	2	8.37+iva
16	7082399	CLIP-EDGE,3-6MM THICKNESS	2	8.37+iva
17	7082406	CLIP-FIR TREE,12.5MM OFF,90DEG	1	4.28+iva
17	7082406	CLIP-FIR TREE,12.5MM OFF,90DEG	1	4.28+iva
18	7082401	CLIP-EDGE,1-3MM THICKNESS	1	9.82+iva
18	7082401	CLIP-EDGE,1-3MM THICKNESS	1	9.82+iva
19	2414716	RESISTOR - EVAP PULLUP - 1 KOHM	1	16.20+iva
19	2414716	RESISTOR - EVAP PULLUP - 1 KOHM	1	16.20+iva
20	2410280	FUSE-MINI BLADE,15 AMP Esta Referencia foi alterada para : 4010859	2	Alterada
21	2434016	FUSE-IGNITION,10 AMP	5	8.37+iva
22	4011068	FUSE - 7.5, MINI BLADE (BROWN)	8	18.75+iva
23	4016819	RELAY - SPST, 12V, 20A, EPXY, HFA	7	46.92+iva
24	2415626	DIODE-2 AMP	1	25.02+iva
24	2415626	DIODE-2 AMP	1	25.02+iva
25	5813954	GROMMET - 65 MM, BLK	2	9.82+iva
26	7200165	LABEL-PDM, RZR, PROS	1	+iva
27	7199861	LABEL-FUSEBOX, TURBO R	1	+iva
28	4018655	CAP-EVAP CONNECTOR	1	6.27+iva
28	4018655	CAP-EVAP CONNECTOR	1	6.27+iva
29	4081064	CAM-IR ILLUMINATED,AMB SENSE	1	273.48+iva
30	5268102-329	BRKT-MOUNT,PDM,ECOAT	1	21.32+iva
31	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	2	5.72+iva
32	7661855	RIVET-TUFLOK,.315-.325X.787	2	5.72+iva
33	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	2	3.12+iva
34	7517305	SCREW-SH-M6X1.0X20 8.8 ZPB	2	7.13+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
