Z25XPB92AP/BP

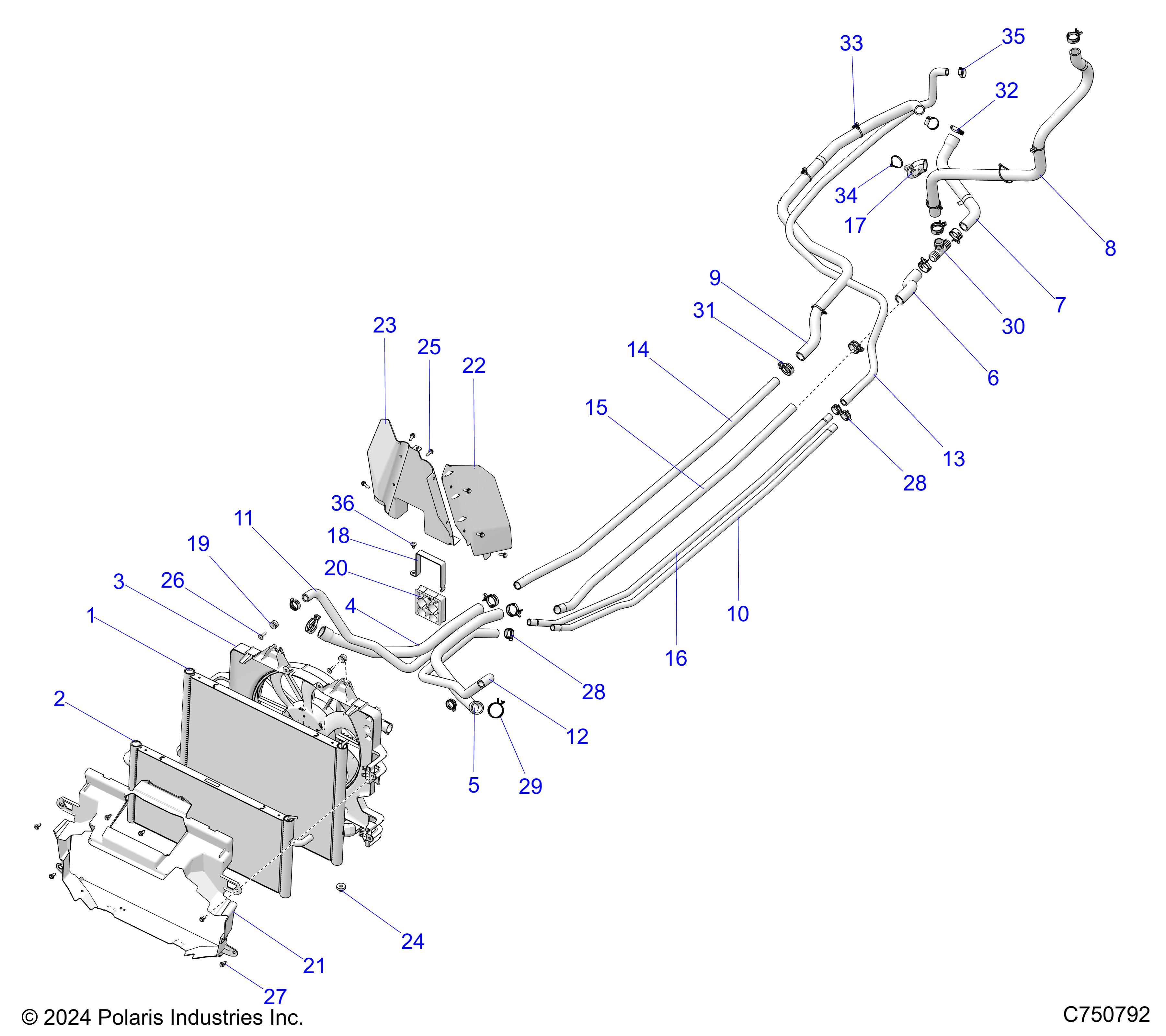

ENGINE, COOLING

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1241243	ASM-RADIATOR,CORE,HT	1	533.30+iva
2	1241241	ASM-RADIATOR,CORE,LT	1	437.56+iva
3	2417224	FAN-ASSEMBLY	1	670.05+iva
4	5416568	HOSE-RADIATOR,HT,IN	1	62.55+iva
5	5416569	HOSE-RADIATOR,HT,OUT	1	70.37+iva
6	5416570	HOSE-ENG IN,TUBE/T	1	39.08+iva
7	5416571	HOSE-ENG IN,T/ENG	1	46.92+iva
8	5416572	HOSE-OUT,ENGINE,SURGE/T	1	100.02+iva
9	5416573	HOSE-ENGINE OUT	1	114.32+iva
10	5143253	TUBE-COOLANT,LT LOWER	1	92.87+iva
11	5416574	HOSE-RADIATOR,LT,IN	1	54.73+iva
12	5416575	HOSE-RADIATOR,LT,OUT	1	70.37+iva
13	5417198	HOSE-LCAC,OUT	1	100.02+iva
14	5141926	TUBE-COOLANT,HT UPPER	1	114.32+iva
15	5141927	TUBE-COOLANT,HT LOWER	1	114.32+iva
16	5141928	TUBE-COOLANT,LT UPPER	1	62.55+iva
17	5417525	SUPPORT-SHIFT CABLE	1	54.73+iva
18	5266653-329	STRAP-GROMMET,ROUTING,ECOAT	1	31.27+iva
19	5416503	ASM-GROMMET & INSERT	2	5.72+iva
20	5416806	GROMMET-ROUTING	1	37.32+iva
21	5465016	SHROUD-RADIATOR,RZR,64	1	85.73+iva
22	5465141	PANEL-AIR,DEFLECTOR,LH,64	1	39.08+iva
23	5466500	PANEL-AIR,DEFLECTOR,RH,64	1	70.37+iva
24	7052028	GROMMET-FLANGED,.36X.56X1.06	2	9.82+iva
25	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	6	5.72+iva
26	7519650	SCR-TXTH-M6X1.0X25 ZFB	2	5.72+iva
27	7661855	RIVET-TUFLOK,.315-.325X.787	6	5.72+iva
28	7080841	SPRINGBAND-CLAMP 27/12,GREEN	4	9.82+iva
28	7080841	SPRINGBAND-CLAMP 27/12,GREEN	4	9.82+iva
29	7082625	CLAMP-CTB42	2	9.82+iva
30	7052373	CONNECTOR-TEE,1",1",1" BARBED	1	12.78+iva
31	7082308	SPRINGBAND-CLAMP,BLK	8	7.35+iva
32	7081192	CLAMP-HOSE(WORM DR)25-40MM	2	11.03+iva
33	7082406	CLIP-FIR TREE,12.5MM OFF,90DEG	2	4.28+iva
34	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	5	3.12+iva
35	7081415	CLAMP-CONSTANT TENSION,16-27	2	9.82+iva
36	7518936	SCR-M6X1X16 TR/TX-M	1	5.72+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
