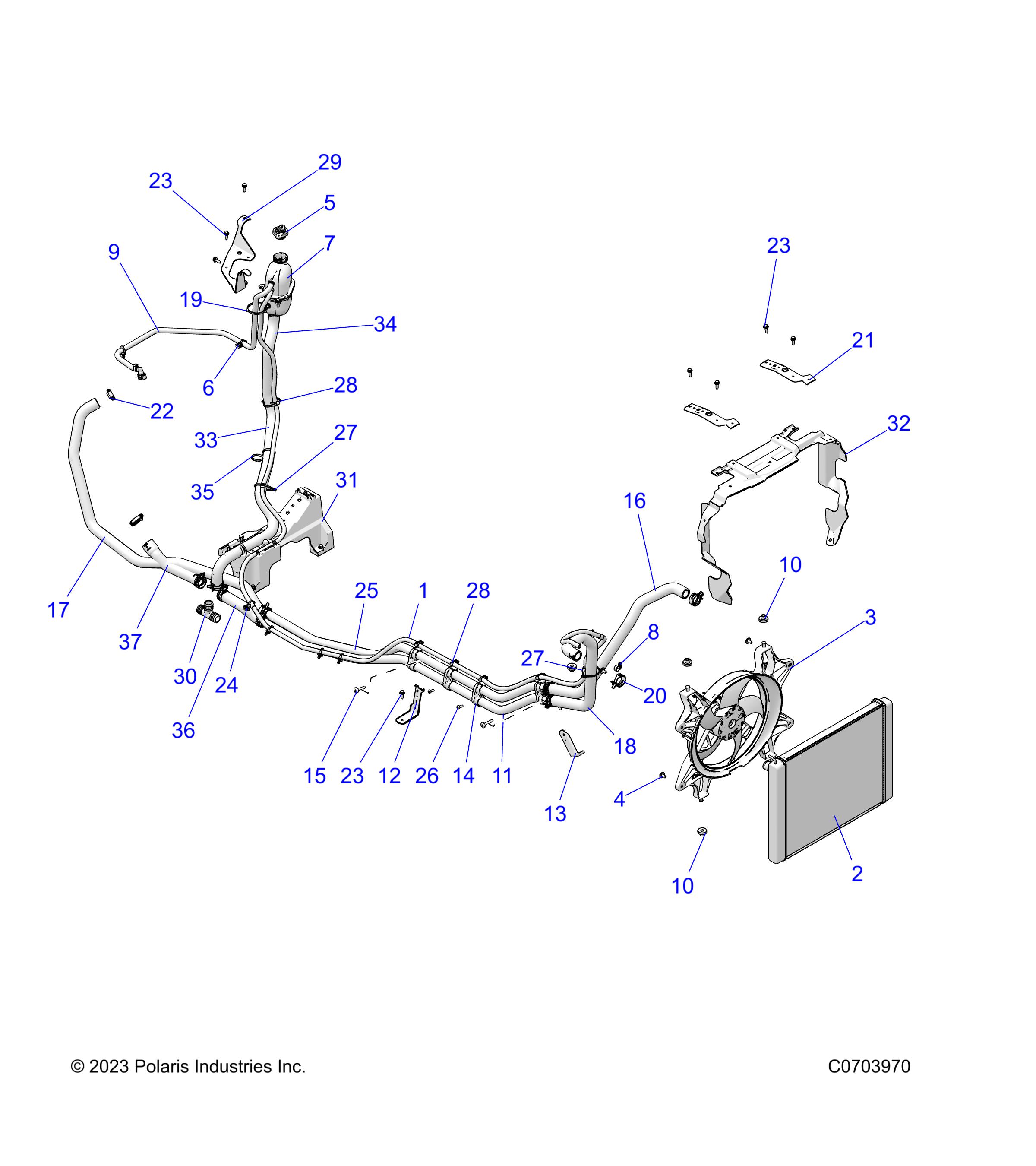

Z25NEB99A4/B4

ENGINE, COOLING SYSTEM

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2522460	ASM-HOSE,VENT,RAD TO BTL	1	78.58+iva
2	1244681	ASM-RADIATOR,CORE	1	682.80+iva
3	2416113	FAN-RADIATOR,ASM	1	382.87+iva
4	7519585	BOLT, M6X15MM	4	11.72+iva
5	1241379	CAP-PRESSURE	1	54.73+iva
6	7081890	CLIP, EDGE, HARNESS	1	12.78+iva
7	1244655	ASM-TANK,SURGE	1	143.57+iva
8	7080476	CLAMP, HOSE, S.S.(10)	1	9.82+iva
9	1244637	ASM-VENT,COOLANT,HEAD TO BTL	1	54.73+iva
10	7052028	GROMMET-FLANGED,.36X.56X1.06	4	9.82+iva
10	7052028	GROMMET-FLANGED,.36X.56X1.06	4	9.82+iva
11	5141612	TUBE-COOLANT,1"	1	78.58+iva
12	5259433-329	BRACKET, COOLANT TUBE, BLACK	1	26.65+iva
13	5260766-329	BRACKET, COOLANT TUBE, BLACK	1	26.65+iva
14	5451221	BRACKET-COOLANT TUBE	4	11.03+iva
15	7519001	SCR-TXTH-M6X1.0X50, 8.8, ZPB	2	5.72+iva
16	5417405	HOSE, UPPER, RADIATOR	1	70.37+iva
17	5414530	HOSE, ENGINE OUTLET, REAR	1	114.32+iva
18	5417406	HOSE, LOWER, RADIATOR, LONG	1	70.37+iva
19	7081808	CLIP-EDGE,1-3MM,6-45MM,SERT.	1	10.78+iva
20	7082308	SPRINGBAND-CLAMP,BLK	10	7.35+iva
21	5269701-329	BRKT-RAD UPR MNT,ECOAT	2	37.32+iva
22	7081192	CLAMP-HOSE(WORM DR)25-40MM	2	11.03+iva
23	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	13	5.72+iva
23	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	13	5.72+iva
23	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	13	5.72+iva
24	7082406	CLIP-FIR TREE,12.5MM OFF,90DEG	1	4.28+iva
25	5141611	TUBE-COOLANT,1"	1	70.37+iva
26	7512026	SCREW-#10X3/4-HI/LO-PN-T25,TRX-M	2	5.72+iva
27	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	2	3.12+iva
27	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	2	3.12+iva
28	7081496	CLIP-ROUTING	9	7.13+iva
28	7081496	CLIP-ROUTING	9	7.13+iva
29	5268906-329	BRKT-COOLANT BTL,VNT HEAD,BLK	1	53.58+iva
30	7052373	CONNECTOR-TEE,1",1",1" BARBED	1	12.78+iva
31	5459724-070	ROUTING TRAY,REAR,BLK	1	36.08+iva
32	5457345-070	SHROUD-RADIATOR,BLK	1	85.73+iva
33	5417261	HOSE-COOLANT BOTTLE,RETURN	1	71.08+iva
33	1241421	ASM-COOLANT HOSE,VENTED HEAD [INCLUDES 16,18,30,33,36,37]	1	497.26+iva
34	7081432	CLAMP-HOSE, 17/32, GREEN	2	7.13+iva
35	7081916	CABLE-TIE,DIA6-38MM,DUAL-LOOP	1	5.72+iva
36	5417248	HOSE-ENG INLET,FRT	1	28.43+iva
37	5417249	HOSE-ENG INLET,REAR	1	35.53+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
