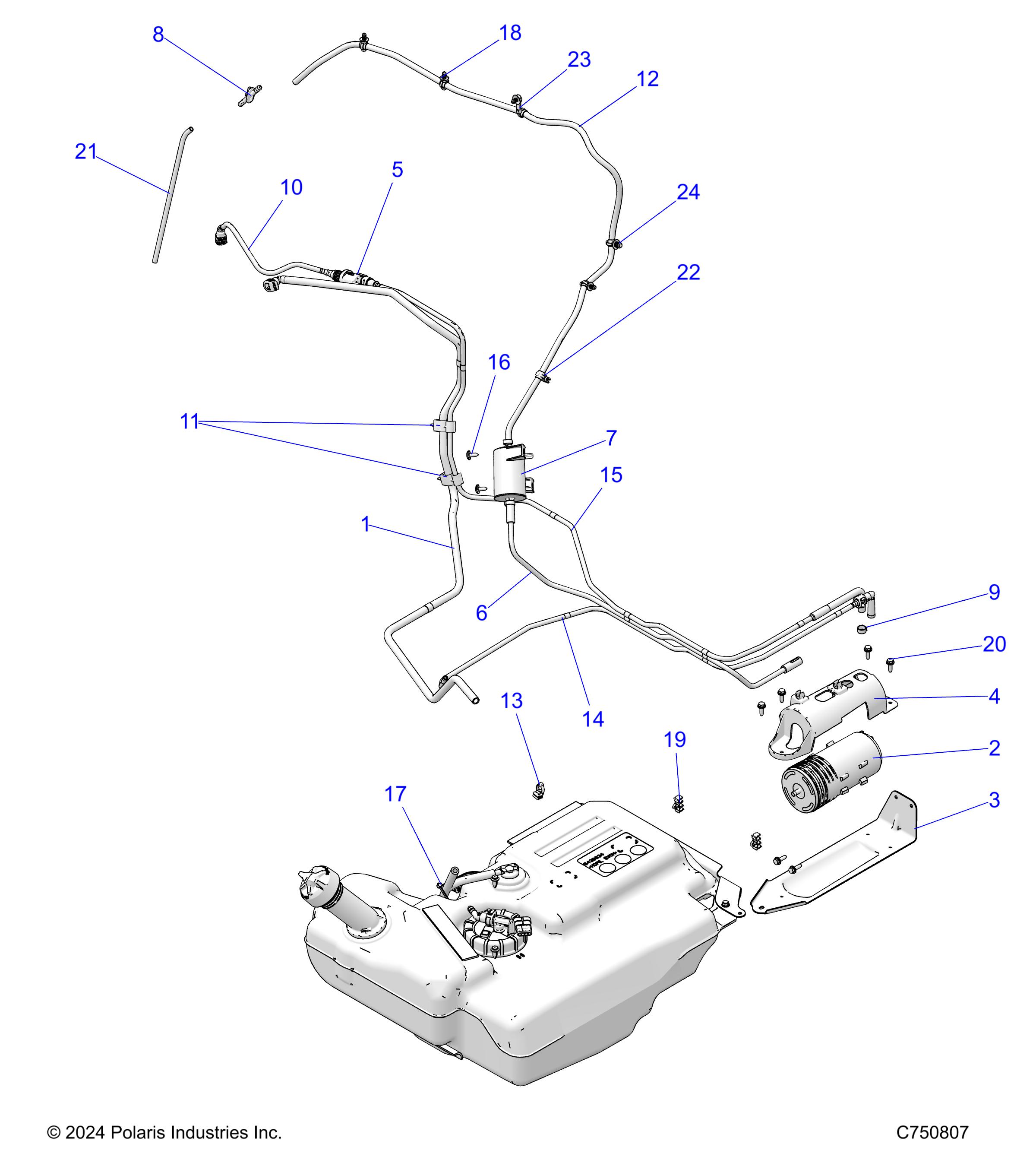

Z25NMB99A4/B4

FUEL SYTEMS, FUEL LINES, EVAP

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2522542	ASM-FUEL LINE	1	150.42+iva
2	2521893	CANISTER-ACTIVATED CARBON,BFL	1	142.90+iva
3	5269716-329	BRKT-MNT CANISTER,E-COAT	1	68.20+iva
4	5453458-070	BRKT-MNT CANISTER,BLK	1	17.05+iva
5	2522361	VALVE-PURGE,DCT MNT	1	90.93+iva
6	2522478	ASM-LINE,VENT TO CANISTER	1	121.47+iva
7	2521750	FILTER-CANISTER VENT	1	68.20+iva
8	5457446	FITTING-VENT LINE,35	1	16.20+iva
9	7080003	HOSE CLAMP, RED	1	2.68+iva
10	2522256	ASM-LINE,PURGE TO INTAKE	1	62.55+iva
11	7082641	CLIP-ROUTING	2	4.28+iva
12	2522544	ASM-VENT,FUEL	1	49.75+iva
13	7082402	CLIP-EDGE, 1-3mm THICKNESS	1	9.82+iva
14	2522457	ASM-LINE,TANK TO CANISTER	1	143.57+iva
15	2522255	ASM-LINE,CANISTER TO PURGE	1	114.32+iva
16	7518936	SCR-M6X1X16 TR/TX-M	2	5.72+iva
17	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	1	4.17+iva
18	7081496	CLIP-ROUTING	7	7.13+iva
19	7082246	CLIP-TRIPLE	2	8.58+iva
20	7518529	SCR-M6X1.0X20,HXHD,FLG,TDFM,BK	7	5.72+iva
21	2522400	ASM-VENT LINE,FUEL	1	46.92+iva
22	7081808	CLIP-EDGE,1-3MM,6-45MM,SERT.	1	10.78+iva
23	7082405	CLIP-OFFSET,FT6 FIR TREE	1	5.72+iva
24	7082414	CLIP-FIR TREE,9.7-10.0MM HOLE	1	5.72+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
