A17HAA15A7/B7

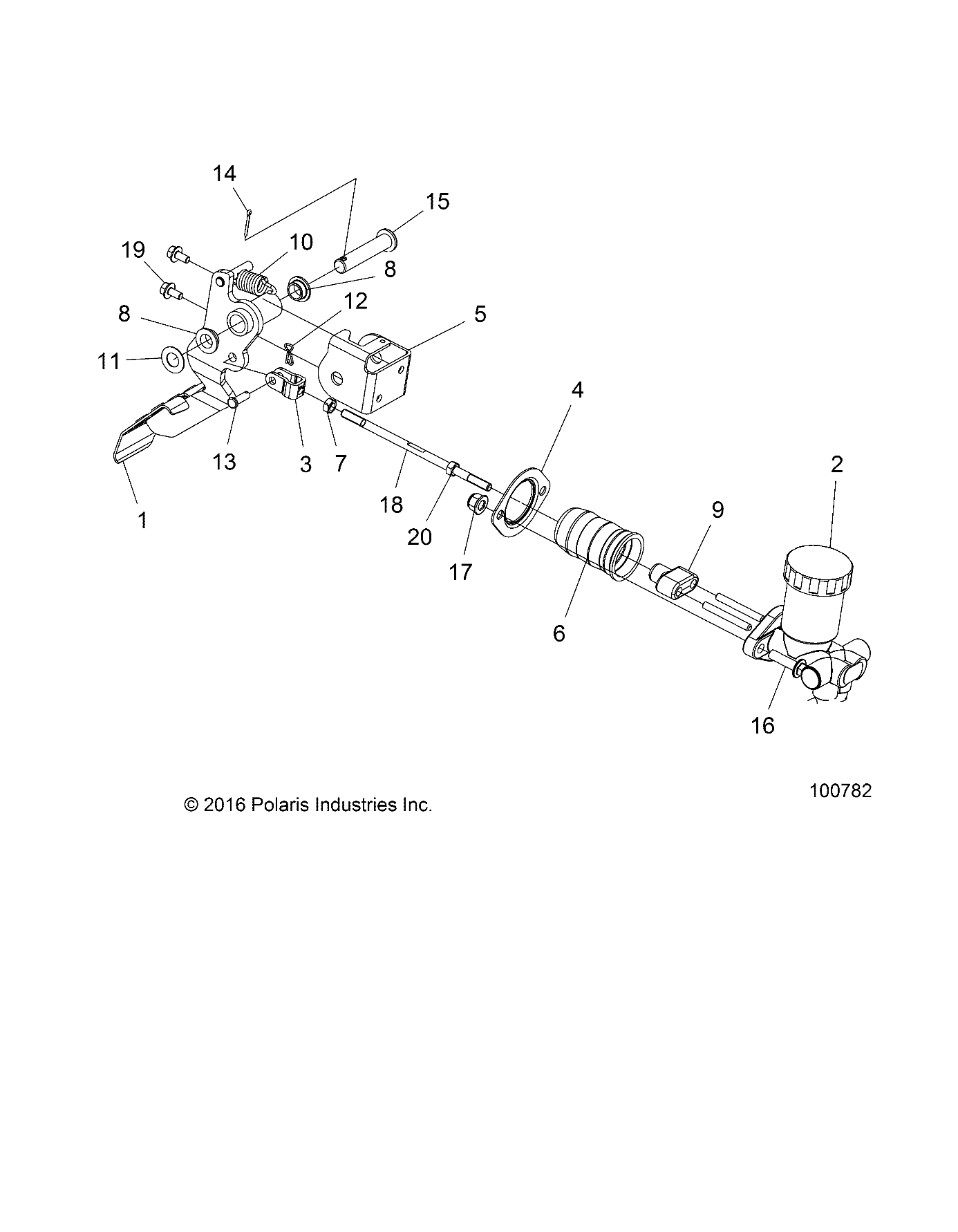

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | 1022924-239 | WELD-PEDAL,BRAKE,RED | 1 | 143.57+iva |  |
| 2 | 1912811 | ASM-MASTER CYLINDER,DUAL BORE | 1 | 437.56+iva | |
| 3 | 5263493 | BRKT-CLEVIS | 1 | 7.13+iva | |
| 4 | 5263509 | BRKT-MC BOOT RETAINER | 1 | 11.03+iva | |
| 5 | 5263519-458 | BRKT-MNT,BRAKE PEDAL,BLK | 1 | 11.03+iva | |
| 6 | 5416095 | SEAL-MC BOOT | 1 | 11.72+iva | |
| 7 | 7547851 | NUT-HEX-M8X1.25 8ZPB,LH,THR | 2 | 5.72+iva | |
| 8 | 5439274 | BUSHING-PEDAL PIVOT | 2 | 15.98+iva | |
| 8 | 5439274 | BUSHING-PEDAL PIVOT | 2 | 15.98+iva | |
| 9 | 5633731 | CAST-COUPLER,BRAKE,PUSH ROD | 1 | 17.20+iva | |
| 10 | 7041789 | SPRING-EXHAUST | 1 | 14.40+iva | |
| 11 | 7556376 | WASHER-.937X.501X.031,OLIVE D | 1 | 4.28+iva | |
| 12 | 7661140 | PIN-CLIP,14MM | 1 | 5.72+iva | |
| 13 | 7661843 | PIN-CLEVIS, 1/4 X 3/4 -Y | 1 | 7.13+iva | |
| 14 | 7661900 | PIN-COTTER,5/64X3/4-Y | 1 | 4.28+iva | |
| 15 | 7662312 | PIN-PIVOT,BRAKE PEDAL | 1 | 11.72+iva | |
| 16 | 7518884 | SCR-HXFL-M8X1.25X30 10.9 ZPB | 2 | 7.13+iva | |
| 17 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | 5.72+iva |  |
| 18 | 1912814 | ROD-BRAKE,PUSH | 1 | 39.08+iva | |
| 19 | 7519145 | SCR-HXFL-M6X1.0X12 8.8 ZOD P30 | 2 | 5.72+iva | |
| 20 | 7547076 | NUT-HEX-M8X1.25 8 ZPB. | 1 | 7.13+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
