A17DAH57A5

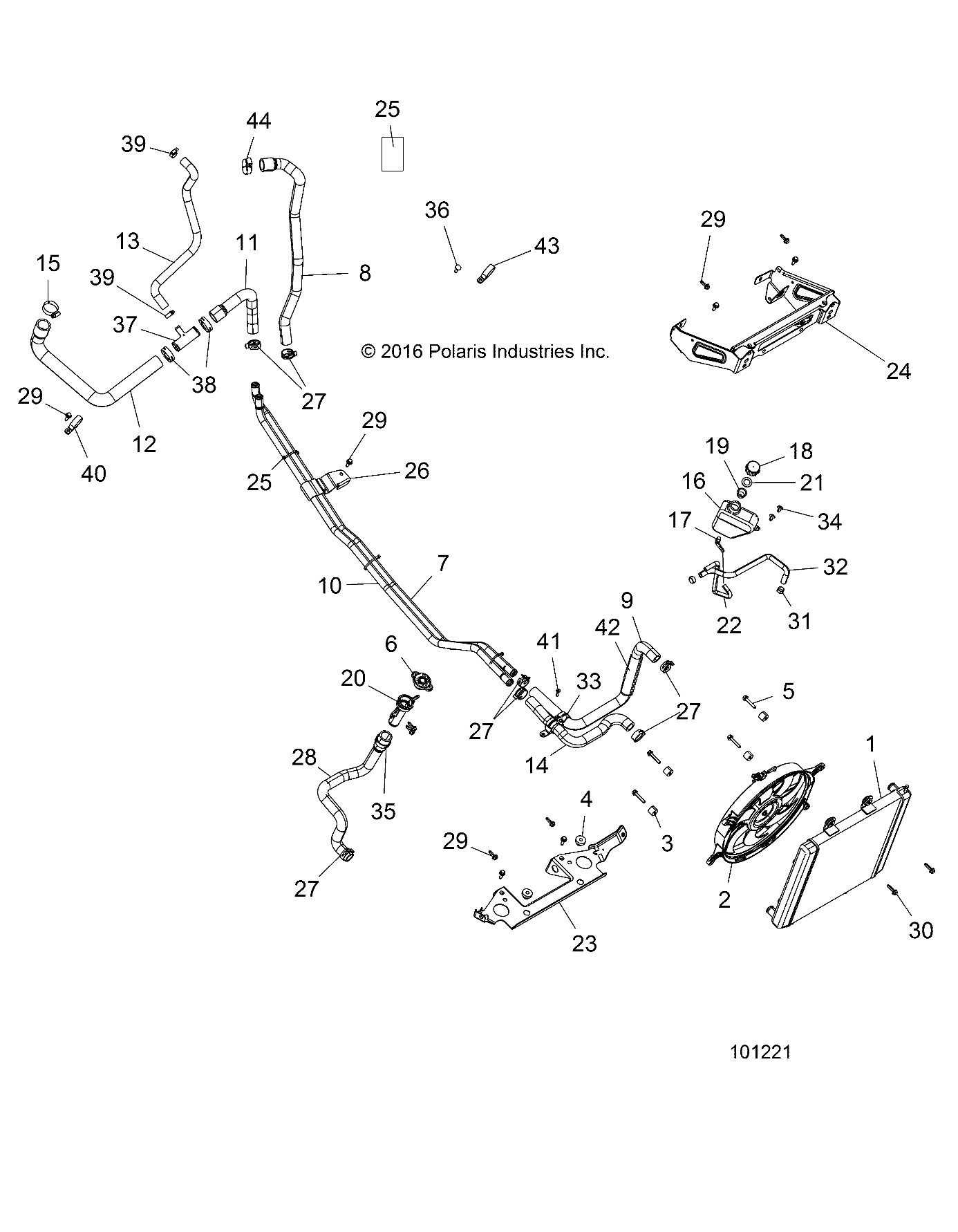

ENGINE, COOLING SYSTEM
Responsive image
#ReferenciaDescriçãoQuant(*)PVPStock
1 1241012 ASM-RADIATOR,CORE Consulte-nos podemos ter uma solução1ObsoletaStock Consultar
2 2411330 ASM-FAN AND MOTOR,TRIPAC,SGL 1220.95+ivaStock Consultar
3 5137361 SPACER-6.6IDX19ODX15 NYL BLK 47.35+ivaStock Consultar
4 5410584 BUSHING, MOUNT, LOWER RADIATOR 27.35+ivaStock Sim
5 7516827 SCR-M6X1.0X35,HX/FL-Y/D 48.58+ivaStock Consultar
6 1240300 CAP, PRESSURE 165.67+ivaStock Consultar
7 5140811 TUBE-COOLANT,3/4,ENG OUT 170.37+ivaStock Consultar
7 7081916 STRAP-PANDUIT,DBL LOOP,260MM [TO HOLD COOLANT TUBES FROM STEERING SHAFT] 15.72+ivaStock Consultar
8 5416035 HOSE-COOLANT,REAR,ENG OUT 146.92+ivaStock Consultar
9 5415709 HOSE-COOLANT 146.92+ivaStock Consultar
10 5140812 TUBE-COOLANT,3/4,ENG IN 170.37+ivaStock Consultar
11 5416033 HOSE-COOLANT,REAR,ENG IN 146.92+ivaStock Consultar
12 5415129 HOSE-COOLANT,ENGINE INLET 154.73+ivaStock Consultar
13 5415447 HOSE-COOLANT,BYPASS 170.37+ivaStock Consultar
14 5416034 HOSE-RADIATOR,ACE 570 139.08+ivaStock Consultar
15 7081174 CLAMP, HOSE 19.82+ivaStock Consultar
16 5436936 TANK, SURGE 1121.47+ivaStock Consultar
17 7052065 FITTING, BARBED 113.85+ivaStock Sim
18 5430743 CAP, OVERFLOW BOTTLE, DRILLED 110.47+ivaStock Consultar
19 5433774 PLUG, CAP 110.47+ivaStock Sim
20 5439079 FILLER, REMOTE, COOLANT 139.08+ivaStock Consultar
21 5810279 GASKET, OVER FLOW CAP 17.35+ivaStock Sim
22 8450003-1525 LINE, FUEL AR107.17+ivaStock Consultar
23 5262753-329 MNT-RADIATOR,M.BLK 197.43+ivaStock Consultar
24 5262754-329 MNT-RADIATOR,UPPER,E-COAT 197.43+ivaStock Consultar
25 5810290 PAD-BATTERY 114.40+ivaStock Consultar
25 5810290 PAD-BATTERY 114.40+ivaStock Consultar
26 5258169 CLAMP-COOLANT LINES 113.85+ivaStock Consultar
27 7080841 CLAMP, SPRINGBAND 79.82+ivaStock Consultar
27 7080841 CLAMP, SPRINGBAND 79.82+ivaStock Consultar
27 7080841 CLAMP, SPRINGBAND 79.82+ivaStock Consultar
27 7080841 CLAMP, SPRINGBAND 79.82+ivaStock Consultar
28 5415876 HOSE-COOLANT,FRONT 154.73+ivaStock Consultar
29 7518529 SCREW 145.72+ivaStock Consultar
29 7518529 SCREW 145.72+ivaStock Consultar
29 7518529 SCREW 145.72+ivaStock Consultar
29 7518529 SCREW 145.72+ivaStock Consultar
30 7519342 SCREW 25.72+ivaStock Consultar
31 7080003 CLAMP, HOSE 22.68+ivaStock Sim
32 8450120-600 HOSE AR107.17+ivaStock Consultar
33 5451221 BRACKET-COOLANT TUBE 111.03+ivaStock Consultar
34 7512084 SCREW 25.72+ivaStock Consultar
35 7080843 CLAMP, SPRINGBAND 17.13+ivaStock Consultar
36 7670090 CLIP-PLASTIC,DART,NYLON 15.72+ivaStock Consultar
37 7052530 CONNECTOR, TEE 17.35+ivaStock Consultar
38 7080844 SPRINGBAND, CLAMP 212.78+ivaStock Consultar
39 7080474 CLAMP, HOSE 29.82+ivaStock Sim
39 7080474 CLAMP, HOSE 29.82+ivaStock Sim
40 7080851 CLAMP-HOSE,1.312 VINYL COATED Esta Referencia foi alterada para : 7080908 1AlteradaStock Consultar
41 7512026 SCR-#10X3/4-HI/LO-PN-T25,TRX-M 15.72+ivaStock Consultar
42 5521793-10 CONDUIT-FLEX,1.00 ID,PE,10CM 112.60+ivaStock Consultar
43 7080807 CLAMP-HOSE 112.78+ivaStock Consultar
44 7081192 CLAMP-HOSE(WORM DR)25-40MM 111.03+ivaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
