A17SXM95AM

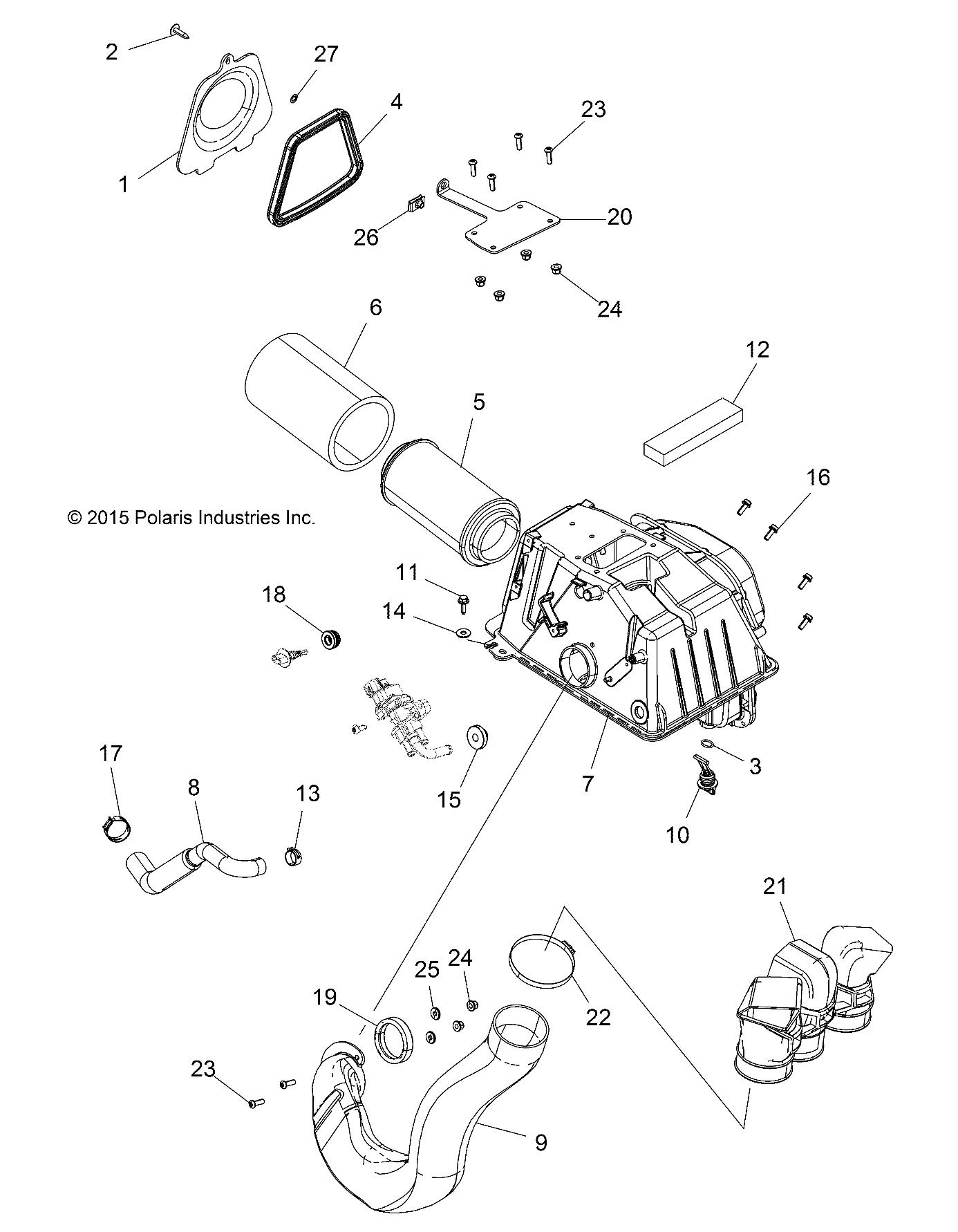

ENGINE, AIR INTAKE

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	5261827	COVER, AIRBOX	1	85.73+iva
2	7517685	SCR-1/4-20X1.00 TR/TX-M	1	5.72+iva
3	5414246	O-RING	1	7.35+iva
4	5814345	SEAL, AIRBOX COVER	1	31.98+iva
5	7082101	FILTER, AIR INTAKE	1	37.32+iva
6	5811633	FILTER, PRECLEANER SLEEVE	1	21.32+iva
7	1240953	ASM-AIR INTAKE,BOX W/RUNNERS	1	242.40+iva
8	5414322	HOSE, BREATHER, TWIN	1	62.55+iva
9	5452407	DUCT-AIR INLET,FRONT	1	107.17+iva
10	5451429	PLUG, AIR BOX	1	28.87+iva
11	7518529	SCREW	2	5.72+iva
12	5813409	FOAM	1	12.60+iva
13	7081026	CLAMP, HOSE	1	11.03+iva
14	7555859	WASHER, FLAT	2	5.72+iva
15	5413423	GROMMET, SUPPORT, TRUNK	1	4.28+iva
16	7518803	SCREW	4	5.72+iva
17	7080842	CLAMP, SPRINGBAND, BLACK	1	11.03+iva
18	5436346	GROMMET, AIR TEMP SENSOR	1	7.13+iva
19	5814346	SEAL-AIRBOX,INTAKE DUCT	1	7.35+iva
20	5261826	PLATE-CLOSEOUT	1	46.92+iva
21	5415531	BOOT-AIR NTAKE	1	85.73+iva
22	7081279	CLAMP-BAND,NARROW 70-90MM	3	7.35+iva
23	7518546	SCR-M6X1.0X20MM,TX,PH,8.8-B	6	4.28+iva
23	7518546	SCR-M6X1.0X20MM,TX,PH,8.8-B	6	4.28+iva
24	7547274	NUT-M6 FLANGE,NYLOC	6	5.72+iva
24	7547274	NUT-M6 FLANGE,NYLOC	6	5.72+iva
25	7555748	WASHER-.28X.62-.14(RBR-BK)-Z	2	7.13+iva
26	7670096	NUT-CHIMNEY 1/4-20,GR-5	1	5.72+iva
27	7670154	RETAINER-BOLT,1/4-20	1	4.28+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
