A22SLZ95AK

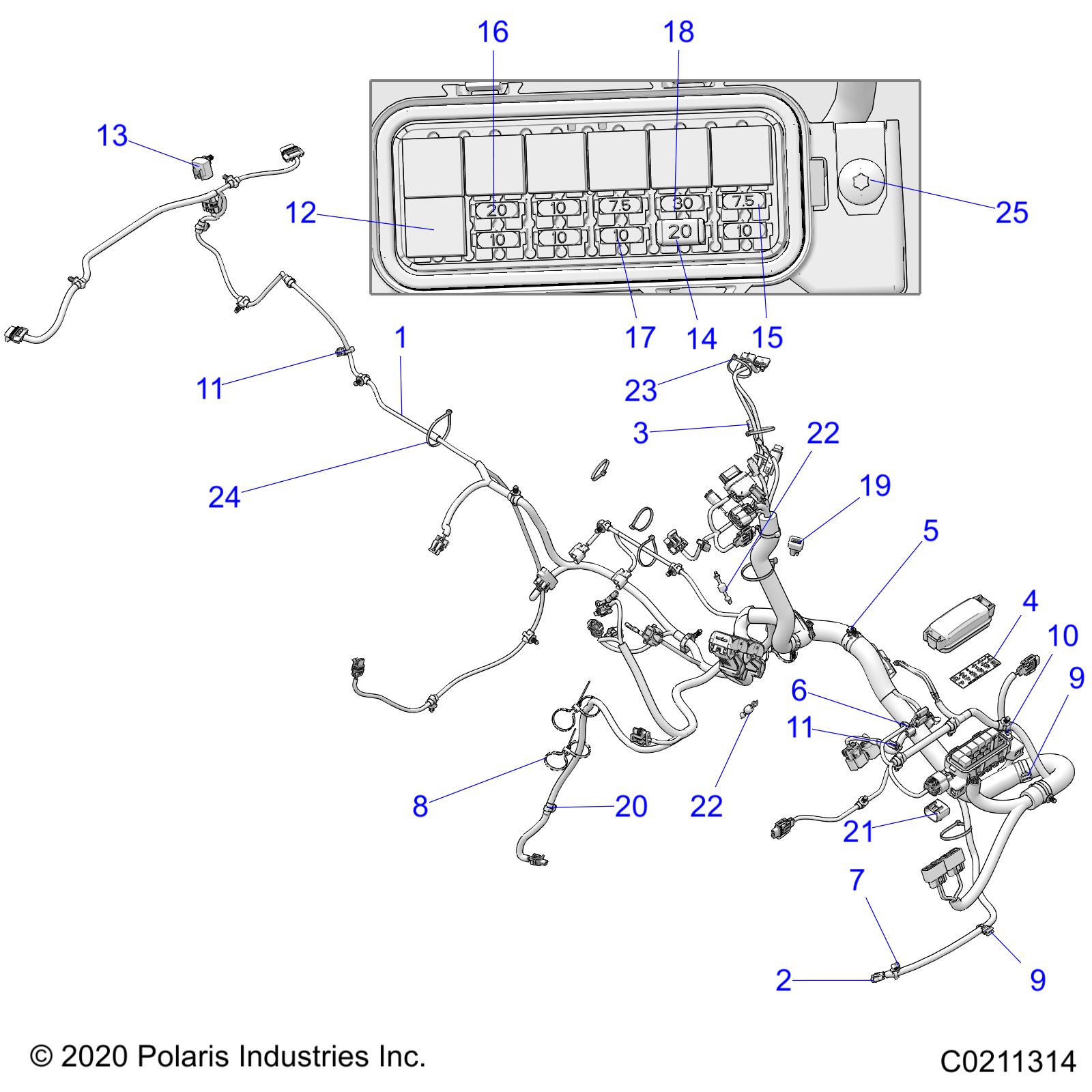

ELECTRICAL, HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2416129	HARNESS-MAIN,SPM XP ETC,55 [INCL. 1-22]	1	1450.16+iva
2	4014891	CONNECTOR-CAP, WINCH CONTACTOR	1	14.40+iva
3	4014890	CONNECTOR-CAP, WINCH SWITCH	1	16.20+iva
4	7300362	LABEL, FUSE BOX	1	+iva
5	7082406	CLIP-FIR TREE,12.5MM OFF,90DEG	1	4.28+iva
6	7082403	CLIP-EDGE, 1-3mm THICKNESS	1	7.13+iva
7	7082402	CLIP-EDGE, 1-3mm THICKNESS	2	9.82+iva
8	7081916	STRAP-PANDUIT,DBL LOOP,260MM	3	5.72+iva
9	7081890	CLIP, EDGE, HARNESS	2	12.78+iva
9	7081890	CLIP, EDGE, HARNESS	2	12.78+iva
10	7081824	STRAP, CABLE TIE W/ EDGE CLIP 3-6MM	1	23.45+iva
11	7081808	STRAP - CABLE TIE W/ EDGE CLIP	2	10.78+iva
11	7081808	STRAP - CABLE TIE W/ EDGE CLIP	2	10.78+iva
12	4016819	RELAY - SPST, 12V, 20A, EPXY, HFA	7	46.92+iva
13	4016259	COVER, TAILLIGHT, LED W/CLIP	1	10.78+iva
14	4011372	BREAKER, CIRCUIT, 20 AMP, SEALED	1	62.55+iva
15	4011068	FUSE - 7.5, MINI BLADE (BROWN)	2	18.75+iva
16	2434017	FUSE,PARK,20 AMP,(10) Esta Referencia foi alterada para : 4012811	1	Alterada
17	2434016	FUSE, IGNITION, 10 AMP	5	8.37+iva
18	2434015	FUSE,MAIN,30 AMP,(10)	1	12.60+iva
19	2410000	DIODE - 6 AMP, 1/4, 3/16 TERM	1	54.73+iva
20	7081496	CLIP-ROUTING	20	7.13+iva
21	4012170	COVER - DIAGNOSTIC, W/ CLIP	1	14.40+iva
22	2411035	DIODE - 6 AMP, 1/4, 3/16 TERM	2	78.18+iva
22	2411035	DIODE - 6 AMP, 1/4, 3/16 TERM	2	78.18+iva
23	7080138	PANDUIT STRAP	6	3.12+iva
24	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	3	4.17+iva
25	7518914	SCREW-M6X1X14,PN/TX,TRI-LOB	2	4.28+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
