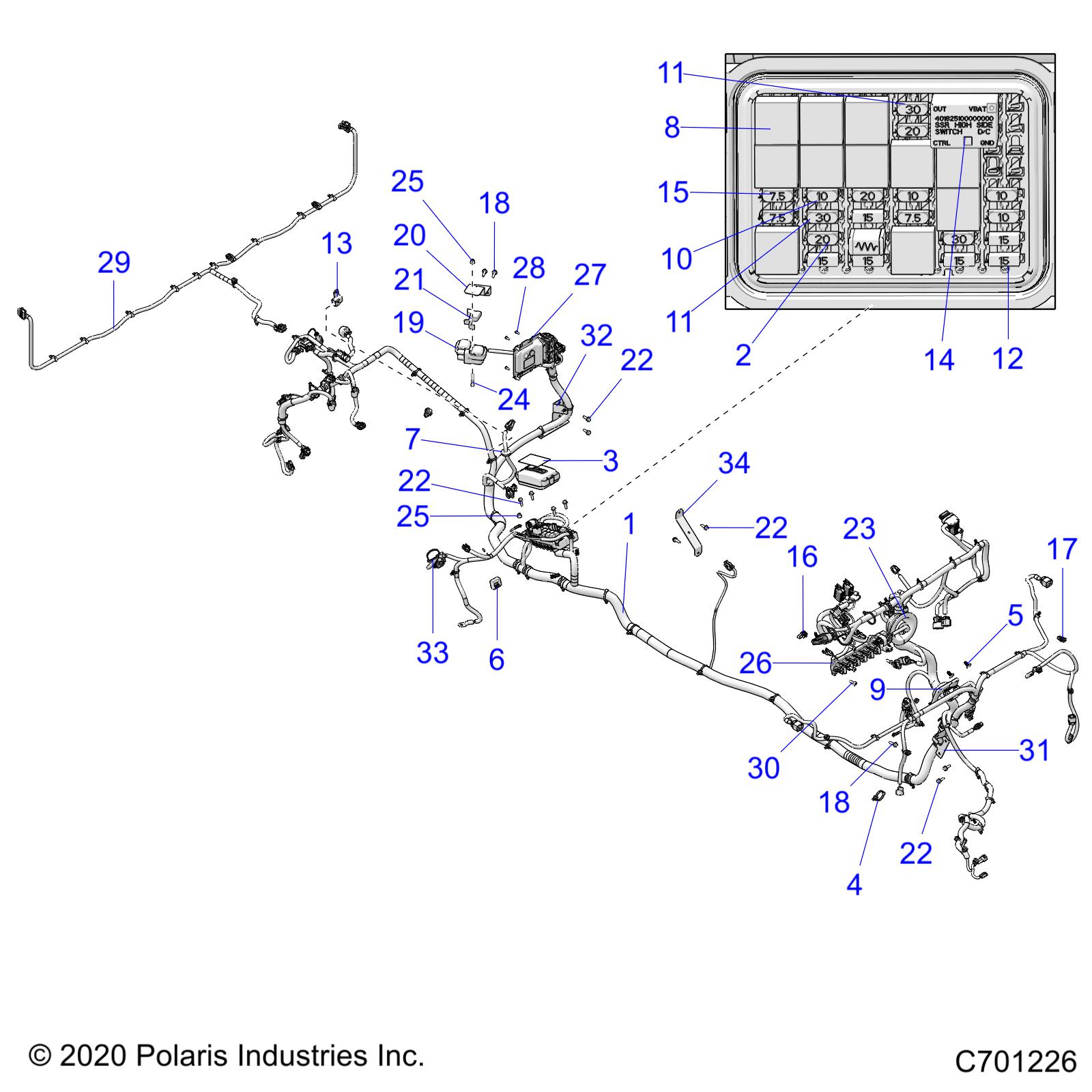

R21RSV99AC/BC

ELECTRICAL, WIRE HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2415393	HARN-CHASSIS,FO,HVAC,CREW (INCL. 2-17)	1	2093.94+iva
1	2415393	HARN-CHASSIS,FO,HVAC,CREW (INCL. 2-17)	1	2093.94+iva
2	2434017	FUSE,PARK,20 AMP,(10) Esta Referencia foi alterada para : 4012811	3	Alterada
3	7300224	DECAL-RELAY/FUSE BLOCK, HVAC,RC	1	+iva
4	7081496	CLIP-ROUTING	AR	7.13+iva
5	7670090	CLIP,PLASTIC DART,NYLON(10)	4	5.72+iva
6	4012170	COVER - DIAGNOSTIC, W/ CLIP	1	14.40+iva
7	5415308	GROMMET - USB, 3 MM, 22 MM DIA	1	5.72+iva
8	4016819	RELAY - SPST, 12V, 20A, EPXY, HFA	11	46.92+iva
9	5814560	GROMMET - 65MM, W/FLANGE, BLK	1	15.98+iva
10	2434016	FUSE, IGNITION, 10 AMP	4	8.37+iva
11	2434015	FUSE,MAIN,30 AMP,(10)	3	12.60+iva
11	2434015	FUSE,MAIN,30 AMP,(10)	3	12.60+iva
12	2410280	Fuse, Mini Blade, 15 Amp. Esta Referencia foi alterada para : 4010859	6	Alterada
13	4012260	COVER, HAZARD FLASHER FUSE	1	17.20+iva
14	4018251	RELAY - SSR 10A	1	78.58+iva
15	4011068	FUSE - 7.5, MINI BLADE (BROWN)	3	18.75+iva
16	7082404	CLIP-EDGE, 3-6MM THICKNESS	1	11.72+iva
17	7081890	CLIP, EDGE, HARNESS	1	12.78+iva
18	7520715	SCR-TFHFL-M6X1.0X25,ZY3	3	5.72+iva
18	7520715	SCR-TFHFL-M6X1.0X25,ZY3	3	5.72+iva
19	4010425	COIL, EFI Esta Referencia foi alterada para : 2876049	1	Alterada
20	5263891	BRKT-COIL MOUNT	1	11.72+iva
21	5436577	SPACER, COIL MOUNT	1	5.72+iva
22	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	8	5.72+iva
22	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	8	5.72+iva
22	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	8	5.72+iva
22	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	8	5.72+iva
23	5417082	GROMMET-HOOD LINER,SPLIT	1	9.82+iva
24	7518780	SCR-M6X1.0X40,HX/SOC/CP-B	1	5.72+iva
25	7547274	NUT, M6 FLANGE, NYLOC	2	5.72+iva
25	7547274	NUT, M6 FLANGE, NYLOC	2	5.72+iva
26	4013891	FUSE, CARTRIDGE, 40A	1	46.92+iva
26	5454283	PLUG,ACCY TB	6	62.55+iva
26	4016007	BLOCK-TERMINAL,3 POST,TALL (INCL. FUSE, PLUG, AND COVER)	1	67.37+iva
26	5454284	COVER,TB,JCASE	1	39.08+iva
27	4014125	ECM-HARD,ME17,2CYL,250K	1	877.88+iva
28	7519091	SCR-#10X1/2-HI/LO-PN-T25, TRX-M	4	4.28+iva
29	2414296	HARNESS,BOX,RANGER,RC	1	100.02+iva
30	7519731	SCR-TXPH-#14 X .75 HI-LO RIE	4	5.72+iva
31	5268050-329	BRKT-ROUTING,BLK [FRM 11/16/2020]	1	26.65+iva
31	5264313-329	BRKT-ROUTING,BLK [TO 11/16/220]	1	11.03+iva
32	5264314	BRKT-HARNESS ROUTING	1	13.85+iva
33	7080138	PANDUIT STRAP	2	3.12+iva
34	5265908-458	BRKT-WIRE GUIDE,BLK	1	7.35+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
