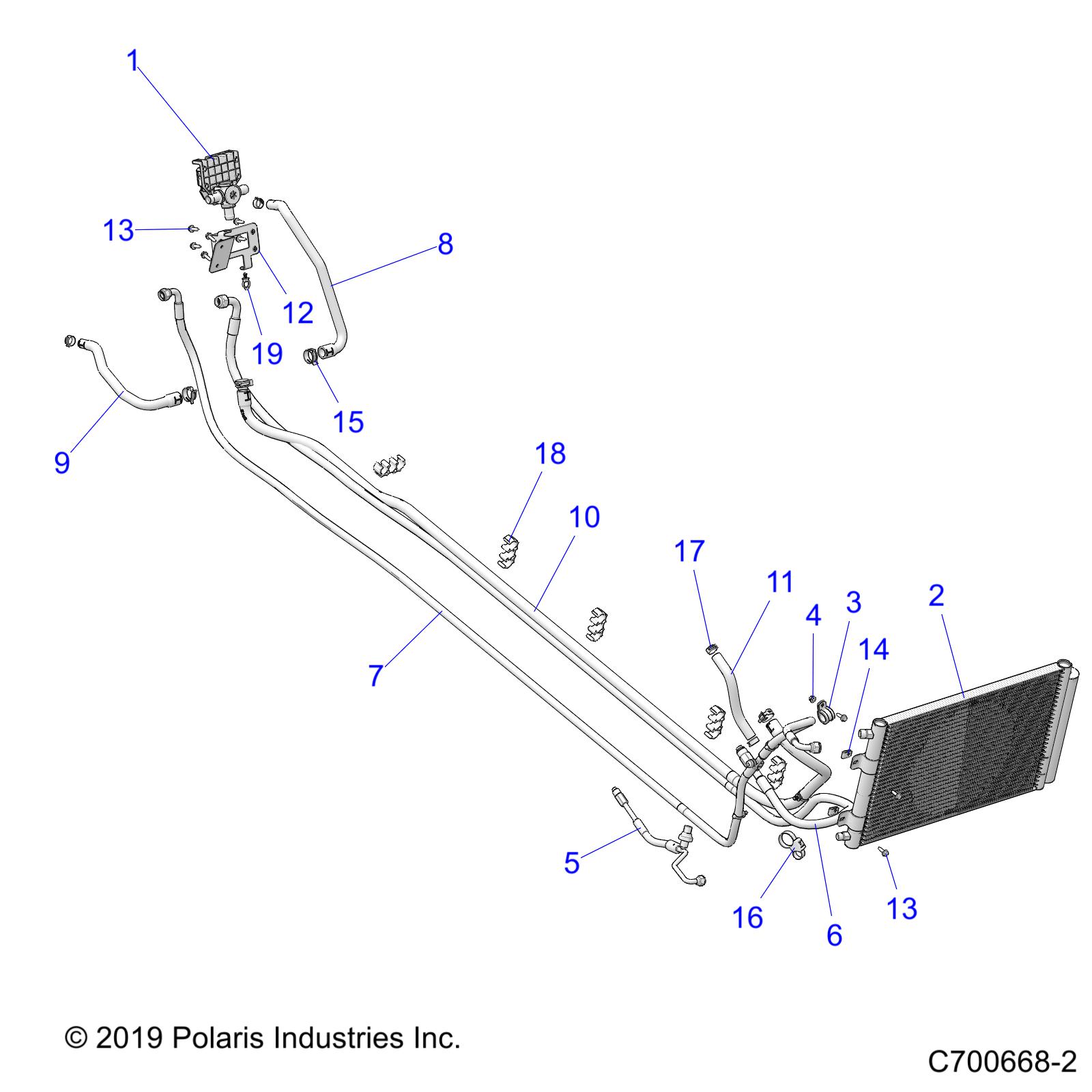

R20RSW99AA/AP/AX/A9/BA/BP/BX/B9
BODY, HVAC ROUTINGS
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | 2415244 | ASM-VALVE,3-WAY | 1 | 341.87+iva |  |
| 2 | 2413821 | CONDENSOR-HVAC,RGR | 1 | 1138.01+iva | |
| 3 | 7082364 | CLAMP-P,.75X.28 HOLE,RUBBER | 1 | 26.65+iva | |
| 4 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 1 | 5.72+iva |  |
| 5 | 5416547 | HOSE-A/C,CONDENSER,LWR | 1 | 307.67+iva | |
| 6 | 5416427 | HOSE-HVAC,RGR,CREW | 1 | 300.83+iva | |
| 7 | 5416428 | HOSE-HVAC,RGR,CREW | 1 | 300.83+iva | |
| 8 | 5416918 | HOSE-HEATER,ENG OUT TO 3 WAY | 1 | 62.55+iva | |
| 9 | 5416357 | HOSE-COOLANT,3WAY TO ENG | 1 | 39.08+iva | |
| 10 | 5416429 | HOSE-COOLANT,HEATER 3WAY,CREW | 1 | 157.25+iva | |
| 11 | 5416358 | HOSE-HEATER RETURN | 1 | 25.02+iva | |
| 12 | 5263842-329 | BRKT-MNT,3WAY,VALVE,BLK | 1 | 42.65+iva | |
| 13 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 9 | 5.72+iva | |
| 13 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 9 | 5.72+iva | |
| 14 | 7547674 | NUT-M6-1.0,U-TYPE (2.5-3.8) | 2 | 5.72+iva | |
| 15 | 7080841 | SPRINGBAND-CLAMP 27/12,GREEN | 4 | 9.82+iva | |
| 16 | 7081807 | CLIP-LINE | 1 | 11.03+iva | |
| 17 | 7081026 | CLAMP-HOSE,SPRING .81 | 4 | 11.03+iva | |
| 18 | 5453897 | CLIP-ROUTING,HVAC | 5 | 7.13+iva | |
| 19 | 7081496 | CLIP-ROUTING | 5 | 7.13+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
