R15RTAD1AA/EA/ED1EA

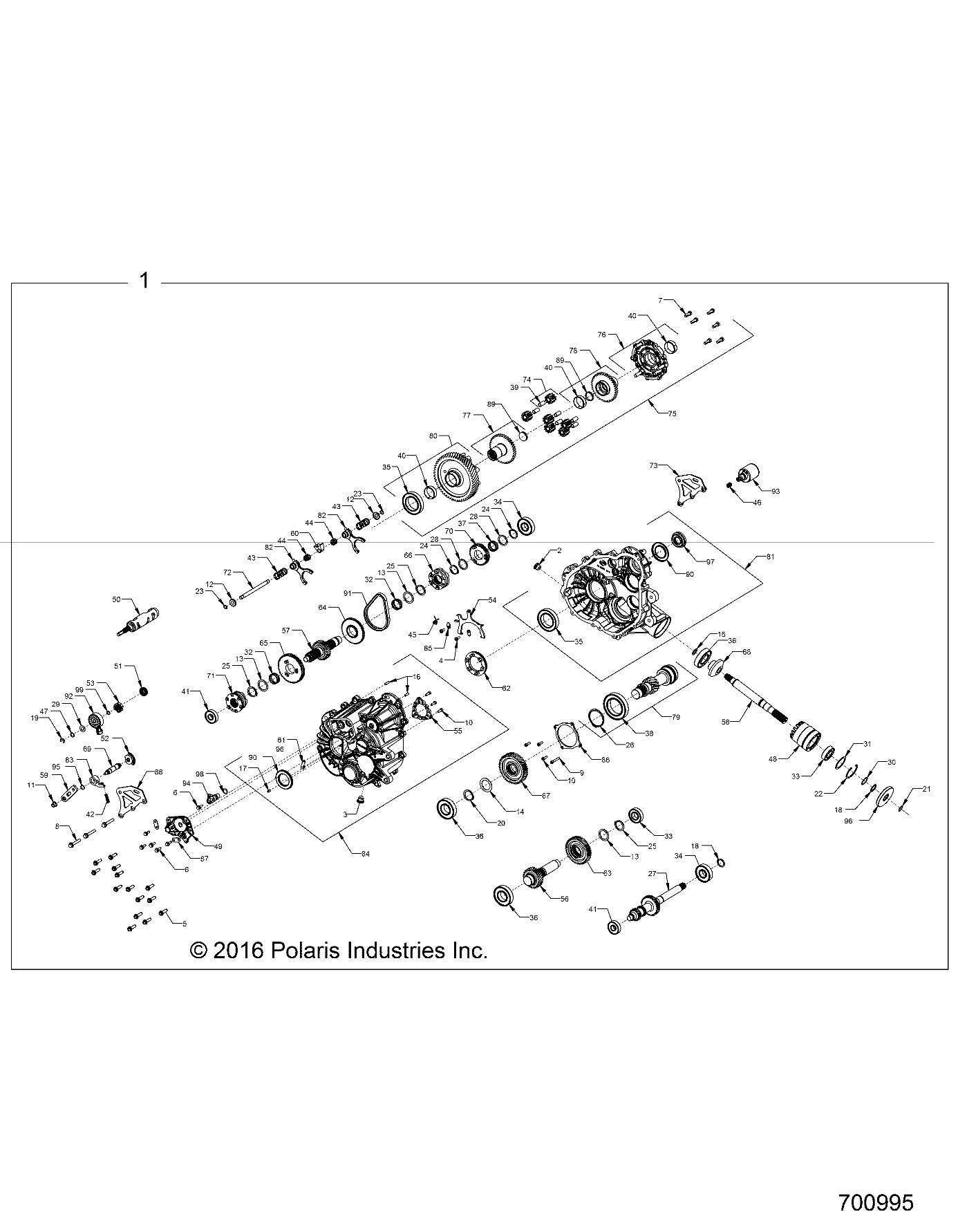

DRIVE TRAIN, MAIN GEARCASE INTERNALS 1

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1333295	ASM., GEARCASE [INCL. 2-78] Consulte-nos podemos ter uma solução	1	Obsoleta
2	3234755	PLUG, M18 X 1.5	1	37.67+iva
3	3234756	PLUG, M18 X 1.5, MAGNETIC	1	43.05+iva
4	3234309	SCREW,TORX PAN HEAD	2	11.16+iva
5	3234898	SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30	14	12.91+iva
6	3235206	SCREW, HEX FLANGE HEAD, M6 X 1 X 20	6	11.16+iva
6	3235206	SCREW, HEX FLANGE HEAD, M6 X 1 X 20	6	11.16+iva
7	3235096	SCREW, CAP HH Esta Referencia foi alterada para : 3236169	3	Alterada
8	3235207	SCREW, HEX FLANGE	1	13.99+iva
9	3235208	SCREW,SOCKET HEAD CAP	1	15.06+iva
10	3235332	SCREW, SOCKET HEAD, CAP, M6 X 1 X 18	6	7.20+iva
10	3235332	SCREW, SOCKET HEAD, CAP, M6 X 1 X 18	6	7.20+iva
11	3235210	NUT, LOCK HEX FLANGE, NYLON M8 X 1.25	1	12.40+iva
12	3234091	WASHER, CUP	2	12.91+iva
12	3234091	WASHER, CUP	2	12.91+iva
13	3235211	WASHER, 32.3 X 42 X 1.5	3	13.99+iva
13	3235211	WASHER, 32.3 X 42 X 1.5	3	13.99+iva
13	3235211	WASHER, 32.3 X 42 X 1.5	3	13.99+iva
14	3235212	WASHER, 35.6 X 57 X 1.5	1	18.29+iva
15	3235213	WASHER, 17.3 X 25 X 1.5	1	21.52+iva
16	3234340	PIN, DOWEL, 6 X 20 Consulte-nos podemos ter uma solução	2	Obsoleta
17	7043746	PIN, SPRING, SLOTTED 6 X 12	1	14.53+iva
18	3233106	RING, RETAINING BASIC, EXTERNAL 0.984	1	8.68+iva
18	3233106	RING, RETAINING BASIC, EXTERNAL 0.984	1	8.68+iva
19	3233834	RING, SNAP	1	13.99+iva
20	3233364	RING, RETAINING, SHAFT, DIA. 1.375	1	9.91+iva
21	3234318	RING, RETAINING, EXTERNAL SHR-66	1	5.76+iva
22	3234269	RING, RETAINING BASIC, INTERNAL 2.047	1	12.91+iva
23	3234090	RING, RETAINING BASIC, EXTERNAL 0.428	2	13.99+iva
23	3234090	RING, RETAINING BASIC, EXTERNAL 0.428	2	13.99+iva
24	3234205	RING, RETAINING	2	15.06+iva
24	3234205	RING, RETAINING	2	15.06+iva
25	3235214	RING, RETAINING BASIC, EXTERNAL MSR-32	3	12.91+iva
25	3235214	RING, RETAINING BASIC, EXTERNAL MSR-32	3	12.91+iva
25	3235214	RING, RETAINING BASIC, EXTERNAL MSR-32	3	12.91+iva
26	3235216	RING, RETAINING, VSH-237	1	13.99+iva
26	3235216	RING, RETAINING, VSH-237	1	13.99+iva
27	3235395	SHAFT, BOSS LW UTILITY, INPUT, AVALANCHE	1	303.75+iva
28	3233378	WASHER, THRUST, 1.187 X 1.5 X 0.06	2	12.91+iva
29	3234642	WASHER, THRUST, 0.446 X 0.88 X 0.025	1	13.99+iva
30	3234272	SHIM, 1.18 OD X 0.995 ID	1	55.26+iva
31	3234273	SHIM, 2.04 OD X 1.63 ID	1	23.67+iva
32	3233014	BEARING, NEEDLE, CAGE ASSY	2	54.10+iva
32	3233014	BEARING, NEEDLE, CAGE ASSY	2	54.10+iva
33	3233019	BEARING, BALL, 6205 C3 25X52X15	2	43.05+iva
33	3233019	BEARING, BALL, 6205 C3 25X52X15	2	43.05+iva
34	3233020	BEARING, BALL, 6305 C3, 25 X 62 X 17	1	59.03+iva
34	3233020	BEARING, BALL, 6305 C3, 25 X 62 X 17	1	59.03+iva
35	3233268	BEARING, BALL, 6010 C3 50X80X16	2	63.94+iva
35	3233268	BEARING, BALL, 6010 C3 50X80X16	2	63.94+iva
36	3234065	BEARING, BALL, 6207 C3 35X72X17	3	59.03+iva
36	3234065	BEARING, BALL, 6207 C3 35X72X17	3	59.03+iva
36	3234065	BEARING, BALL, 6207 C3 35X72X17	3	59.03+iva
37	3233384	BEARING, NEEDLE, CAGE ASSY	1	43.05+iva
38	3235218	BEARING, BALL, 6012	1	73.77+iva
39	3234239	BEARING PLAIN	6	21.52+iva
40	3234241	BEARING, PLAIN	3	21.52+iva
40	3234241	BEARING, PLAIN	3	21.52+iva
40	3234241	BEARING, PLAIN	3	21.52+iva
41	3234652	BEARING, BALL 6303, 17 X 47 X 14	2	21.52+iva
41	3234652	BEARING, BALL 6303, 17 X 47 X 14	2	21.52+iva
42	3233830	SPRING, COMPRESSION	1	13.99+iva
43	3234078	SPRING, COMPRESSION	1	31.57+iva
43	3234078	SPRING, COMPRESSION	1	31.57+iva
44	3234089	SPRING, COMPRESSION	2	39.47+iva
44	3234089	SPRING, COMPRESSION	2	39.47+iva
45	3234276	SPRING, TORSION,RETURN	1	16.36+iva
46	3234277	SPRING, COMPRESSION	1	23.67+iva
47	3235327	SPRING, TORSION	1	12.91+iva
48	3234278	TUBE, SNORKLE MACH	1	158.77+iva
49	3234188	COVER SECTOR GEARS	1	179.48+iva
50	3235463	DRUM SHIFT	1	441.81+iva
51	3233839	GEAR, SECTOR, 16T	1	50.23+iva
52	3233832	GEAR, SECTOR, 31T	1	50.23+iva
53	3235603	STAR DETENT	1	63.16+iva
54	3235455	FORK SHIFT	1	144.96+iva
55	3235456	PLATE PARK	1	63.16+iva
56	3235223	SHAFT, IDLER 29T	1	179.48+iva
57	3235224	SHAFT, REVERSE 29T	1	234.71+iva
58	3235394	SHAFT, FRONT OUTPUT	1	220.89+iva
59	3235474	BELLCRANK, 92 DEGREE	1	47.35+iva
60	3234073	COLLAR, SHIFT	1	43.05+iva
61	3234230	TUBE, VENT, 90 -1/4" HOSE	1	17.36+iva
62	3234928	DOG ENGAGEMENT	1	115.42+iva
63	3235229	GEAR, 44T STAGE 2	1	131.80+iva
64	3235231	SPROCKET 48T, 6-FACE	1	137.06+iva
65	3235232	GEAR, LOW 67T	1	175.73+iva
66	3235233	ENGAGEMENT DOG, 6-FACE	1	181.99+iva
67	3235236	GEAR, 46T STAGE 3	1	156.89+iva
68	3235237	GEAR, 13T SNORKEL	1	188.27+iva
69	3235238	SHAFT, SHIFT	1	63.16+iva
70	3235396	GEAR 49T	1	188.27+iva
71	3235457	DOG SHIFT,PARK\LOW	1	227.81+iva
72	3235542	RAIL,SHIFT SHAFT	1	47.35+iva
73	3235510	BRACKET, REAR MOUNT	1	59.03+iva
74	3234469	SUBASSEMBLY, PLANET GEAR	6	104.94+iva
75	3235373	DIFFERENTIAL,LOCKING	1	596.23+iva
76	3235376	SUBASM, DIFFERENTIAL COVER	1	214.00+iva
77	3235374	SUBASM,GEAR,39T GEAR SIDE	1	269.86+iva
78	3235375	SUBASM,39T GEAR SIDE	1	269.86+iva
79	3235336	SUBASM.,SHAFT Consulte-nos podemos ter uma solução	1	Obsoleta
80	3235378	SUBASM,GEAR,39T GEAR SIDE	1	577.39+iva
81	3235422	SUBASM,LH CASE	1	1004.58+iva
82	3235454	SUBASM,SHIFT FORK	2	144.29+iva
82	3235454	SUBASM,SHIFT FORK	2	144.29+iva
83	3235452	PAWL ROLLER	1	55.26+iva
84	3235444	SUBASM,RH CASE	1	781.34+iva
85	3234934	RETAINER FORK	2	13.99+iva
86	3235241	COVER-BEARING,CNTR DR.	1	78.95+iva
87	3235350	BRKT, WIRE HARNESS	2	12.40+iva
88	3235511	BRKT, MOUNT REAR	1	59.03+iva
89	3234249	PLUG CAP VENT	2	18.29+iva
89	3234249	PLUG CAP VENT	2	18.29+iva
90	3235052	SEAL,TRIPLE LIP,40X70X7	2	43.05+iva
90	3235052	SEAL,TRIPLE LIP,40X70X7	2	43.05+iva
91	3234737	CHAIN SILENT	1	269.23+iva
92	7661999	SWITCH ROTARY	1	186.39+iva
93	3235478	SOLENIOD	1	462.53+iva
94	4013908	SENSOR SPEED Esta Referencia foi alterada para : 3239727	1	Alterada
95	3233828	O-RING	1	10.53+iva
96	3234113	SEAL,TRIPLE LIP,25X80X10	1	48.43+iva
97	3234851	SEAL	1	48.43+iva
98	3234302	O-RING	1	11.16+iva
99	3233836	O-RING	1	10.53+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
