Z22RGE2KAG/BG/RGK2KAN/BN

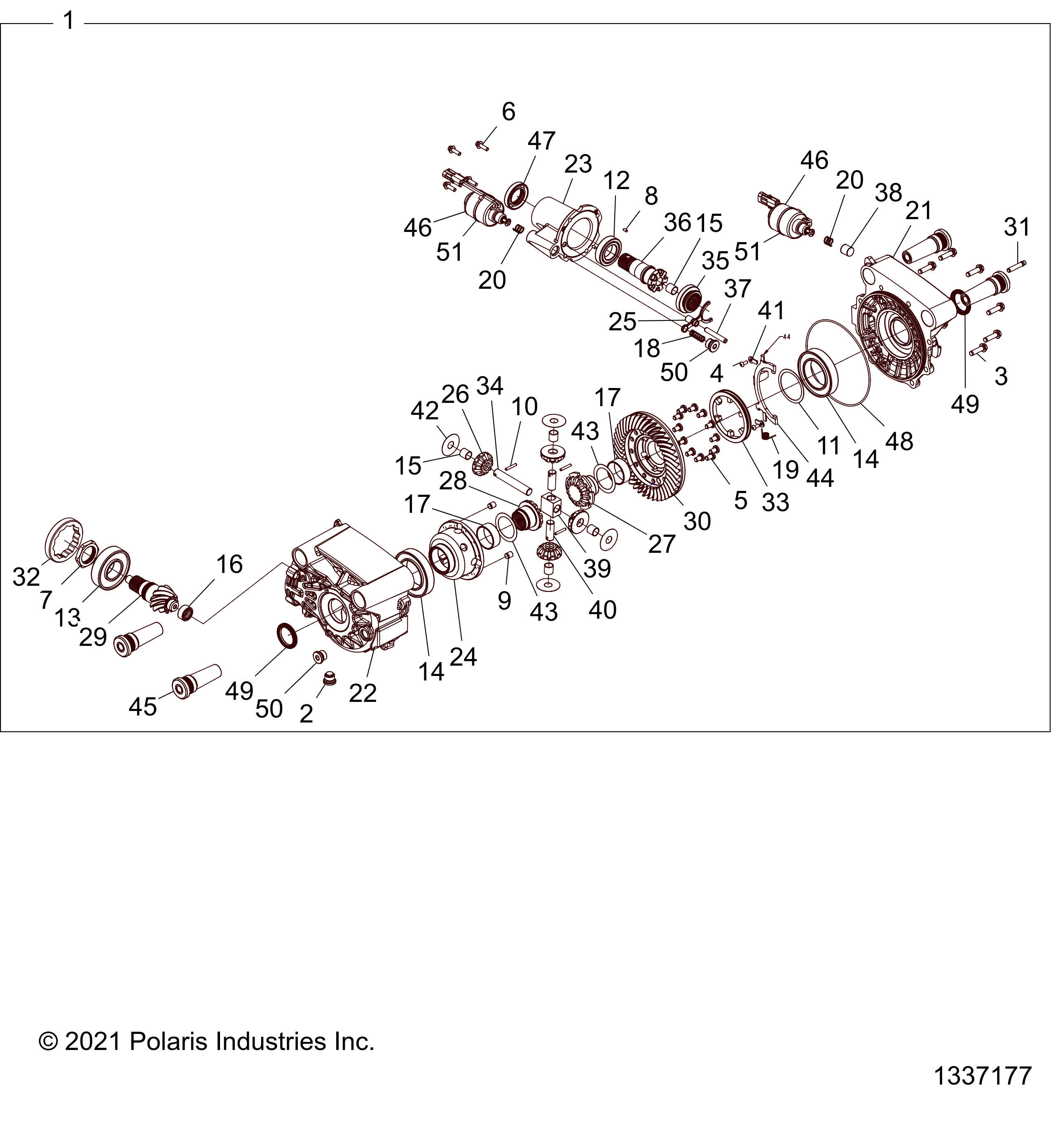

DRIVE TRAIN, GEARCASE, FRONT, INTERNALS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1337177	ASM-GEARCASE, FRONT, ISOL [INCL. ALL] Esta Referencia foi alterada para : 1337229	1	Alterada
2	3234756	PLUG, SOCKET HEAD W/MAGNET	1	37.32+iva
3	3234898	SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30	8	11.72+iva
4	3239227	SCREW-SOCK,BUTTON HD,M5X.8X1	2	12.78+iva
5	3239396	SCREW, 6-LOBE BUTTON, HD, M8 X 1.25 X 13	12	12.27+iva
6	3239475	SCREW, HEX FLANGE HEAD , M6 X 1 X 20	4	12.78+iva
7	3239229	NUT, HEX PINION BEARING , M35 X 1.5-6H X 8.00	1	26.65+iva
8	3235715	PIN, DOWEL, M4X8	2	6.75+iva
9	3239230	PIN, DOWEL , 10MM X 14MM	2	26.65+iva
10	3239325	PIN, DOWEL , .1562 X 1	3	12.78+iva
11	3239232	SHIM, 66.30 X 55.50	1	256.40+iva
12	3239460	BEARING, BALL , 6006 30 X 55 X 13	1	21.32+iva
13	3235099	BEARING, BALL	1	42.63+iva
14	3239233	BEARING, BALL , 55 X 90 X 18	2	63.33+iva
14	3239233	BEARING, BALL , 55 X 90 X 18	2	63.33+iva
15	3239443	BEARING, PLAIN , 14 X 16 X 15	5	26.65+iva
15	3239443	BEARING, PLAIN , 14 X 16 X 15	5	26.65+iva
16	3239234	BEARING, NEEDLE , CAGE ASSY, 1.06 X .81 X .50	1	37.32+iva
17	3239235	BEARING, PLAIN , 1.625 X 1.781 X .685	2	53.58+iva
17	3239235	BEARING, PLAIN , 1.625 X 1.781 X .685	2	53.58+iva
18	3239461	SPRING, COMPRESSION , 10.80 OD X 9.02 ID X 0.89 WIRE	1	135.18+iva
19	3239411	SPRING, TORSION , RETURN	1	135.18+iva
20	3239412	SPRING, COMPRESSION , .54 OD X.44 ID X.050 WIRE	2	135.18+iva
20	3239412	SPRING, COMPRESSION , .54 OD X.44 ID X.050 WIRE	2	135.18+iva
21	3239413	COVER, MACH	1	747.83+iva
22	3239414	CASE, RH MACH	1	1138.01+iva
23	3239462	HOUSING, DISCONNECT , MACH	1	379.15+iva
24	3239531	CARRIER, DIFFERENTIAL , MACH	1	242.40+iva
25	3239463	FORK, DISCONNECT SHIFT	1	68.20+iva
26	3239438	PINION, 10T BEVEL	4	90.93+iva
27	3239243	GEAR, OUTPUT , 14T MACH	1	167.82+iva
28	3239244	GEAR, OUTPUT , 14T MACH	1	167.82+iva
29	3239543	PINION, 10T , SPIRAL BEVEL	1	341.85+iva
30	3239544	GEAR, RING 41T	1	609.13+iva
31	3239296	TUBE, VENT , 1/4" HOSE	1	46.92+iva
32	3239247	NUT, LOCK, M85 X 2.0 LH	1	68.20+iva
33	3239248	DOG, ENGAGEMENT	1	116.92+iva
34	3239249	PIN, DIFFERENTIAL	1	58.45+iva
35	3239464	COLLAR, SHIFT 25T	1	136.73+iva
36	3239465	SHAFT, DISCONNECT 25T	1	142.90+iva
37	3239466	RAIL, SHIFT SHAFT	1	128.60+iva
38	3239415	CUP	1	53.32+iva
39	3239441	COUPLER, PIN	1	68.20+iva
40	3239442	PIN, DIFFERENTIAL	2	53.32+iva
41	3239252	STRAP, SHIFT FORK	2	54.73+iva
42	3239253	WASHER, THRUST , 14.25 X 43.25 X 0.38	4	12.78+iva
43	3239254	WASHER, THRUST , 42.10 X 56.25 X 0.38	2	26.65+iva
43	3239254	WASHER, THRUST , 42.10 X 56.25 X 0.38	2	26.65+iva
44	3239417	CONTROL ARM, SHIFT , FRONT DIFF	1	92.87+iva
45	5418248	MOUNT, ISOLATOR	4	42.65+iva
46	3235478	SOLENOID	2	458.08+iva
46	3235478	SOLENOID	2	458.08+iva
47	3239468	SEAL, TRIPLE LIP , 1.181 X 2.047 X 0.394	1	37.32+iva
48	3239256	O-RING, 2-165	1	31.98+iva
49	3239328	SEAL, OIL, 37 X 48 X 6 TG	2	37.32+iva
49	3239328	SEAL, OIL, 37 X 48 X 6 TG	2	37.32+iva
50	3234755	PLUG, SOCKET HEAD	2	31.98+iva
50	3234755	PLUG, SOCKET HEAD	2	31.98+iva
51	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	2	4.17+iva
51	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	2	4.17+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
