Z22RGE2KAG/BG/RGK2KAN/BN

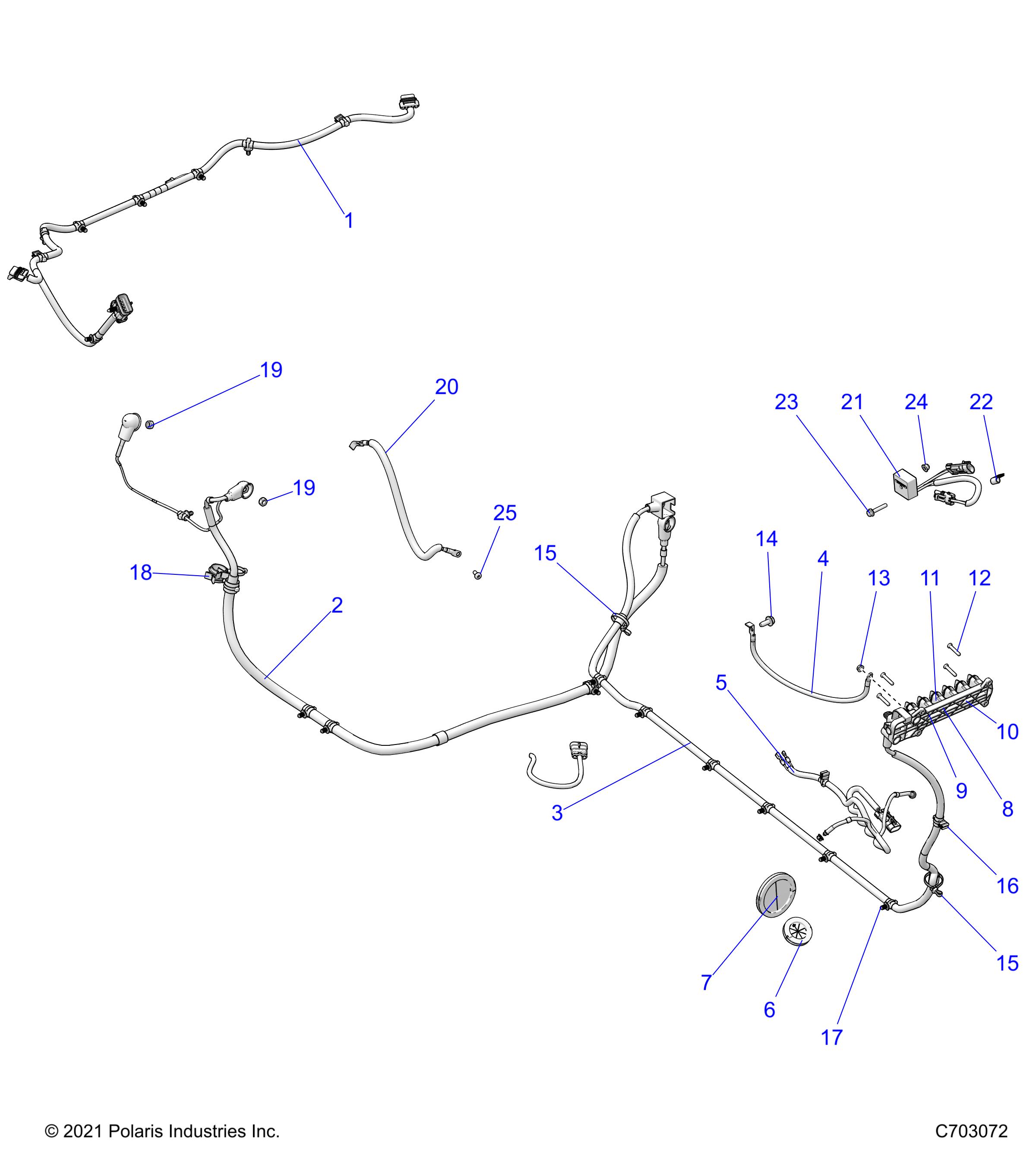

ELECTRICAL, WIRE HARNESS, PERIPHERAL

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2415274	HARNESS-BOX,RZR G4 [INCL. 14,16][AN][BN]	1	157.25+iva
1	2415351	HARNESS-BOX,RZR G4,BASE [INCL. 14,16][AG][BG]	1	143.57+iva
2	4019608	CABLE-POS,PDM,START,ALT [INCL. 14,15]	1	111.88+iva
3	4018865	CABLE-ACCY,PDM TO ATB [INCL. 12-14]	1	73.07+iva
4	4017603	CABLE-GROUND,ATB,CHAS Esta Referencia foi alterada para : 4081125	1	Alterada
5	2415067	HARNESS-CONSOLE [INCL. 13,17,18]	1	150.42+iva
6	5414440	GROMMET, ELECTRICAL, CAB [AG,BG]	1	9.82+iva
6	5415049	GROMMET, ELEC, CAB, SLIT [AN,BN]		5.72+iva
7	5417178	GROMMET-ELECTRICAL,CAB	1	7.35+iva
8	4016007	BLOCK-TERMINAL,3 POST,TALL	1	67.37+iva
9	4013891	FUSE, CARTRIDGE, 40A	1	46.92+iva
10	5454283	PLUG,ACCY TB	6	62.55+iva
11	5454284	COVER,TB,JCASE	1	39.08+iva
12	7512078	SCR-10X1.12 TX PN PLS-Y	4	4.28+iva
13	7547270	NUT-HXFLGHD, M6, SERRATED	1	5.72+iva
14	7520764	SCR-HXFL-M8X1.25X20 TAP ZY3 [QTY of 3 for AN,BN]	1	7.13+iva
15	7081033	CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK)	2	6.83+iva
15	7081033	CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK)	2	6.83+iva
16	7081808	STRAP - CABLE TIE W/ EDGE CLIP	2	10.78+iva
17	7081496	CLIP-ROUTING	AR	7.13+iva
18	7082408	CLIP-OMEGA,CABLE/19-24.5MM DIA	1	13.85+iva
19	7547144	NUT,NYLOCK M8X1.25(10)	2	4.28+iva
19	7547144	NUT,NYLOCK M8X1.25(10)	2	4.28+iva
20	4018143	CABLE-GROUND,ENG,CHAS,G4	1	47.98+iva
21	4012829	RELAY, SOLID STATE, 9 AMP, LONG, LD	2	114.32+iva
22	7080683	CLAMP-HOSE,.312DIA,VINYL COAT	2	7.13+iva
23	7518612	BOLT-M6X1.0X35,HXFLG/SH-OLV D	2	7.13+iva
24	7547339	NUT-M6X1.0, FLG-NYLOC-OLIVE D	2	4.28+iva
25	7518914	SCREW-M6X1X14,PN/TX,TRI-LOB	1	4.28+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
