Z22RGL2KAP/AL/BK/BL/BP/BT

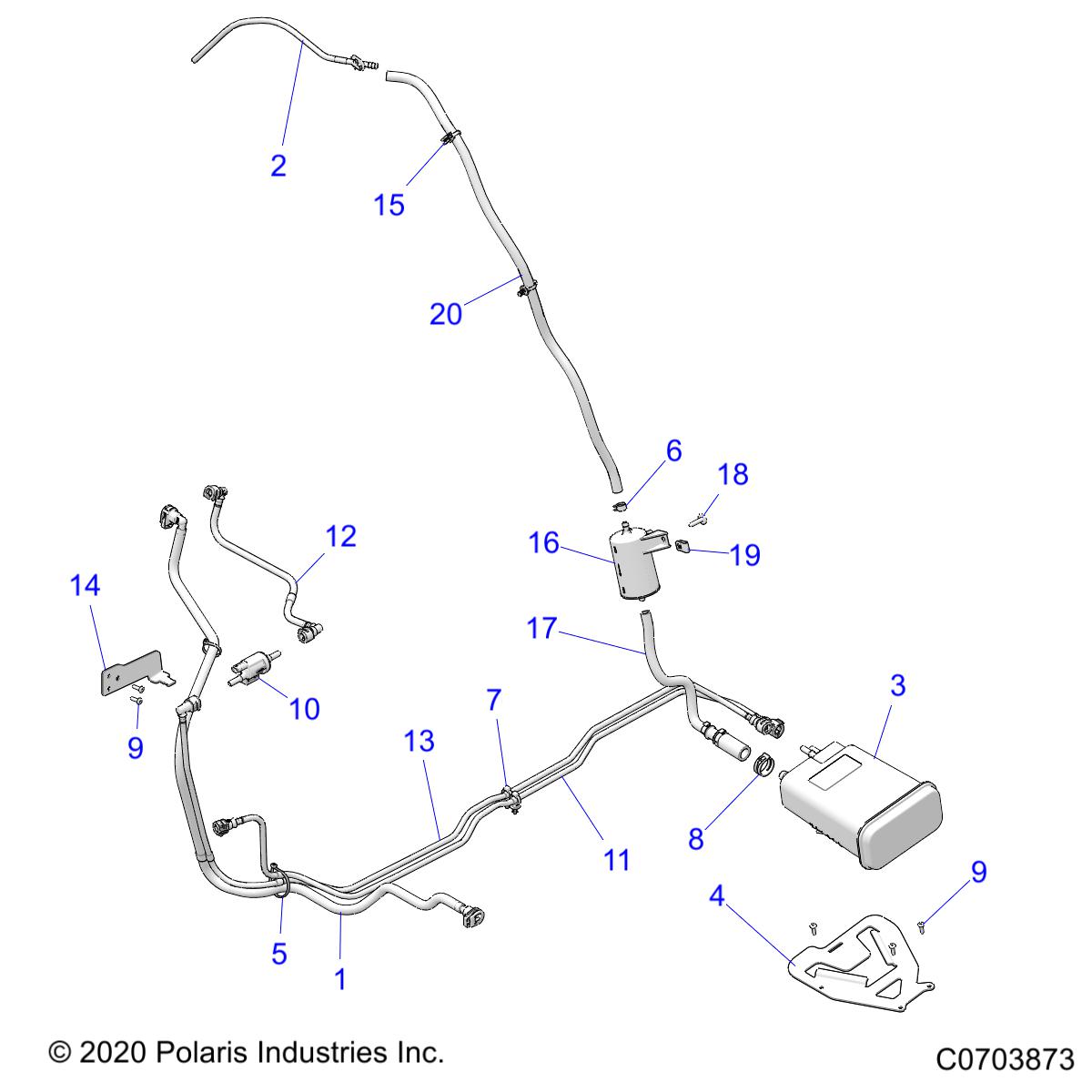

FUEL SYSTEM, FUEL LINES, EVAP
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | 2522359 | ASM-FUEL LINE,G4 | 1 | 225.62+iva |  |
| 2 | 2522401 | ASM-LINE,VENT TERM | 1 | 46.92+iva | |
| 3 | 2521786 | CANISTER-ACTIVATED CARBON | 1 | 114.32+iva | |
| 4 | 5268296-329 | BRKT-MNT CANISTER,BLK | 1 | 42.65+iva | |
| 5 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 2 | 4.17+iva | |
| 6 | 7081432 | CLAMP-HOSE, (LARGE GREEN) | 1 | 7.13+iva | |
| 7 | 7081496 | CLIP-ROUTING | 3 | 7.13+iva |  |
| 8 | 7081693 | CLAMP-SPRINGBAND 24/12 | 1 | 5.72+iva | |
| 9 | 7661637 | RIVET,INTERLOCK,Z(50) | 5 | 5.72+iva | |
| 9 | 7661637 | RIVET,INTERLOCK,Z(50) | 5 | 5.72+iva | |
| 10 | 2521964 | VALVE-PURGE | 1 | 84.43+iva | |
| 11 | 2522164 | ASM-LINE,TANK TO CANISTER | 1 | 85.73+iva | |
| 12 | 2522296 | ASM-LINE,PURGE TO TB | 1 | 70.37+iva | |
| 13 | 2522297 | ASM-LINE,CANISTER TO PURGE | 1 | 100.02+iva | |
| 14 | 5269075-329 | BRKT-MNT PURGE VALVE,ECOAT | 1 | 37.32+iva | |
| 15 | 7081808 | STRAP - CABLE TIE W/ EDGE CLIP | 1 | 10.78+iva | |
| 16 | 2521750 | FILTER-CANISTER VENT | 1 | 68.20+iva | |
| 17 | 2522459 | ASM-HOSE,VENT TO CANISTER | 1 | 70.37+iva | |
| 18 | 7518936 | SCR-M6X1X16 TR/TX-M | 2 | 5.72+iva | |
| 19 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 2 | 5.72+iva | |
| 20 | 8450040-78 | FUEL LINE-78 CENTIMETERS | 1 | +iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
