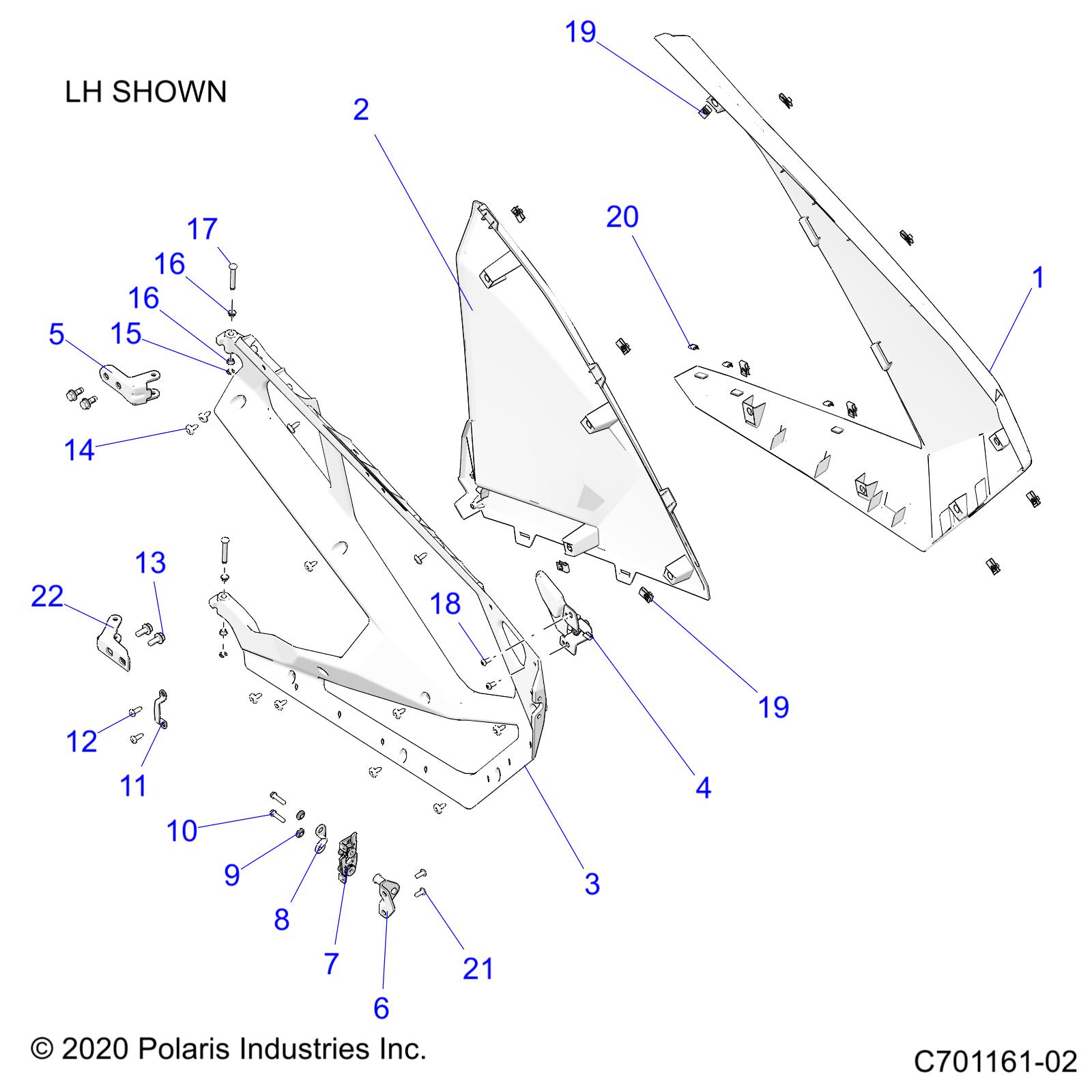

Z22RML2KAP/AL/BK/BP/BT

BODY, DOORS, FRONT

#	Referencia	Descrição	Quant(*)	PVP	Stock
-	5417931	TRIM-DOOR [NOT ILLUSTRATED]	1	54.13+iva
1	5455960-809	PANEL-DOOR,FRT,PAINT,LH,ACRSTL [BP][AP]	1	676.30+iva
1	5455961-809	PANL-DOOR,FRT,PNT,RH,AZR CRSTL [BP][AP]	1	676.30+iva
1	5455960-464	PNL-DOOR,FRT,PNT,LH,STLTH BLK [AL]	1	676.30+iva
1	5455961-464	PANL-DOOR,FRT,PNT,RH,STLTH BLK [AL]	1	676.30+iva
1	5455960-800	PANEL-DOOR,FRT,PAINT,LH,O.BLK [BK]	1	676.30+iva
1	5455961-800	PANEL-DOOR,FRT,PAINT,RH,O.BLK [BK]	1	676.30+iva
1	5455960-801	PANEL-DOOR,FRT,PAINT,LH,L.LIME [BT]	1	676.30+iva
1	5455961-801	PANL-DOOR,FRT,PNT,RH,L.LIME [BT]	1	676.30+iva
2	5456076-809	PANEL-DOOR,FR,RR,PNT,LH,ACRSTL [BP][AP]	1	403.38+iva
2	5456077-809	PANEL-DOOR,FR,RR,PNT,RH,ACRSTL [BP][AP]	1	403.38+iva
2	5456076-464	PANEL-DOOR,FR,RR,PNT,LH,ST BLK [AL]	1	403.38+iva
2	5456077-464	PANEL-DOOR,FR,RR,PNT,RH,ST BLK [AL]	1	403.38+iva
2	5456076-800	PANEL-DOOR,FR,RR,PNT,LH,O.BLK [BK]	1	403.38+iva
2	5456077-800	PANEL-DOOR,FR,RR,PNT,RH,O.BLK [BK]	1	403.38+iva
2	5456076-801	PANEL-DOOR,FR,RR,PNT,LH,L.LIME [BT]	1	403.38+iva
2	5456077-801	PANEL-DOOR,FR,RR,PNT,RH,L.LIME [BT]	1	403.38+iva
3	5634424-458	CASTING-DOOR FRAME,LH,BLK	1	599.56+iva
3	5634425-458	CASTING-DOOR FRAME,RH,BLK	1	321.65+iva
4	2637403	ASM-ACTUATOR,LATCH,RH	1	47.98+iva
4	2637402	ASM-ACTUATOR,LATCH,LH	1	47.98+iva
5	5267526	BRKT-DOOR HINGE	2	31.98+iva
6	1026523	WELD-STRIKER	2	28.87+iva
7	2637039	ASM-LATCH,DOOR,LH	1	37.32+iva
7	2637040	ASM-LATCH,DOOR,RH	1	37.32+iva
8	5417528	BUMPER-DOOR Esta Referencia foi alterada para : 2208914	2	Alterada
9	5140211	SLEEVE-SHLD,15.5OD,10 OD,6.5ID	1	5.72+iva
10	7519297	SCREW-HXFLG,M6X1.0X25,10.9	4	5.72+iva
11	5267829	BRKT-TRIM,DOOR	2	11.03+iva
12	7519045	SCR-TX TRUSS-#14X3/4, HI/LO ZBK	4	4.28+iva
13	7518450	BOLT-M8X1.25X20,HXHDFLG,W/PTCH	8	7.13+iva
14	7518936	SCR-M6X1X16 TR/TX-M	AR	5.72+iva
15	7710466	E-CLIP,M6 Substituted by 7710492	4	4.28+iva
16	5266311	BUSHING-DOOR PIVOT	8	4.28+iva
16	5266311	BUSHING-DOOR PIVOT	8	4.28+iva
17	7662356	PIN-DOOR HINGE	4	7.13+iva
18	7519063	SCREW-TXBH-M6X1.0X12 8.8 ZPB D20	4	5.72+iva
19	7081305	CLIP, U SPEED, NUT, M6	AR	7.13+iva
19	7081305	CLIP, U SPEED, NUT, M6	AR	7.13+iva
20	7670040	Fastener, Clip, U-Type	6	7.13+iva
21	7518656	SCR-TXPH-M6X1.0X15 GR5 ZOD NYL	4	5.72+iva
22	5267677	BRKT-DOOR HINGE,LOWER,MP	2	13.85+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
