Z22RML2KAP/AL/BK/BP/BT

AnteriorPróximo

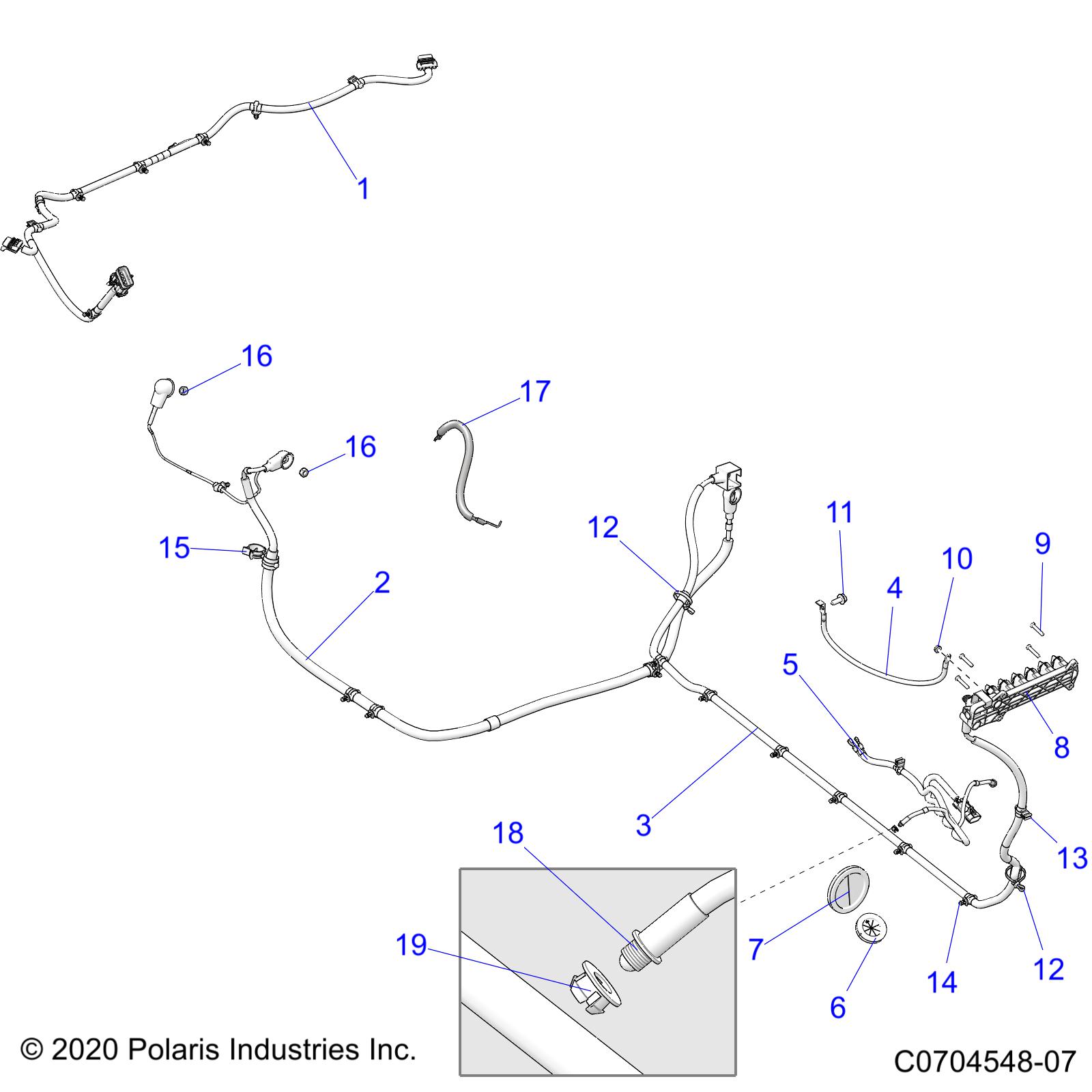

ELECTRICAL, WIRE HARNESS, PERIPHERAL

Diagrama Polaris
#ReferenciaDescriçãoQuant(*)PVPStock
1 2415274HARNESS-BOX,RZR G4 INCL 14,16 1165.73+ivaStock Consultar
2 4019608CABLE-POS,PDM,START,ALT INCL 14,15 1117.72+ivaStock Consultar
3 4018864CABLE-ACCY,PDM TO ATB INCL 12-14 1117.72+ivaStock Consultar
4 4017603CABLE-GROUND,ATB,CHAS Esta Referencia foi alterada para : 4081125 1AlteradaStock Consultar
5 2415067HARNESS-CONSOLE INCL 13,17,18 1158.83+ivaStock Consultar
6 5415049GROMMET, ELEC, CAB, SLIT 17.20+ivaStock Consultar
7 5417178GROMMET-ELECTRICAL,CAB 18.68+ivaStock Consultar
8 4016007BLOCK-TERMINAL,3 POST,TALL 168.03+ivaStock Consultar
9 7512078SCR-10X1.12 TX PN PLS-Y 42.15+ivaStock Sim
10 7547270NUT-HXFLGHD, M6, SERRATED 17.20+ivaStock Consultar
11 7520764SCR-HXFL-M8X1.25X20 TAP ZY3 17.43+ivaStock Consultar
12 7081033CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK) [BK] 26.83+ivaStock Consultar
12 7081033CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK) [BK] 26.83+ivaStock Consultar
13 7081808STRAP - CABLE TIE W/ EDGE CLIP 210.90+ivaStock Consultar
14 7081496CLIP-ROUTING AR7.43+ivaStock Sim
15 7082408CLIP-OMEGA,CABLE/19-24.5MM DIA 115.07+ivaStock Consultar
16 7547144NUT,NYLOCK M8X1.25(10) 25.77+ivaStock Consultar
16 7547144NUT,NYLOCK M8X1.25(10) 25.77+ivaStock Consultar
17 4018143CABLE-GROUND,ENG,CHAS,G4 153.85+ivaStock Consultar
18 2413217LED - PANEL MNT, 12V, BLUE 186.60+ivaStock Consultar
19 7082020CLIP - ROUTING, DIN BOX 18.68+ivaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
