Z22ASE99F4/F5/S99C4/C5

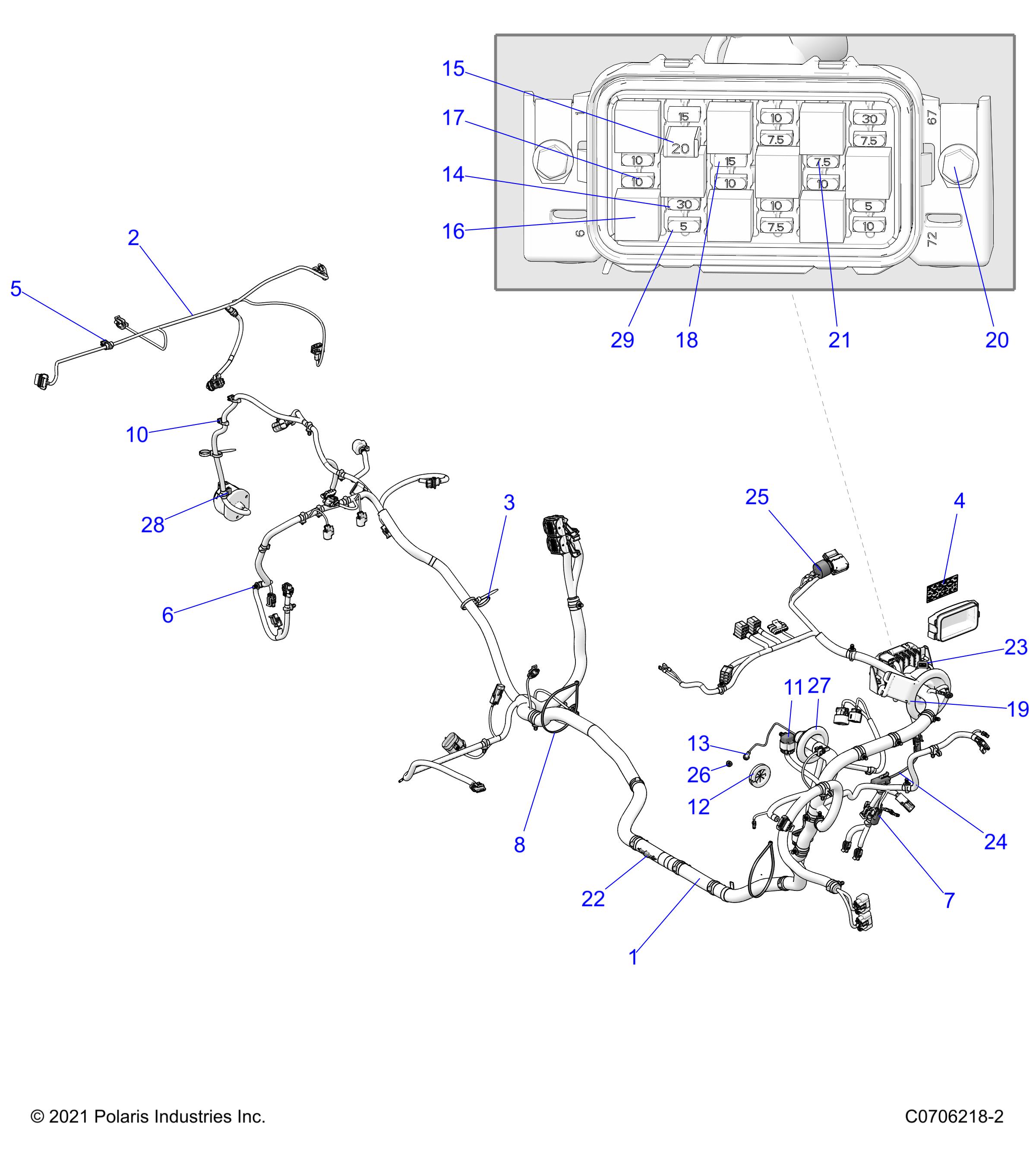

ELECTRICAL, WIRE HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2415845	HARNESS-CHASSIS,RZR,1000,PS,TR [INCL. 3-6,9-11,13-19,21-23,26-29][TO 1/24/2022]	1	1401.03+iva
2	2413529	HARNESS-BOX,RZR,TR	1	50.32+iva
3	7081916	STRAP-PANDUIT,DBL LOOP,260MM	4	5.72+iva
4	7300330	LABEL-FUSE BOX	1	+iva
5	7081890	CLIP, EDGE, HARNESS	1	12.78+iva
6	7081496	CLIP-ROUTING	AR	7.13+iva
7	4018636	JUMPER-BRAKE PRESSURE SWITCH	1	25.02+iva
8	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	2	4.17+iva
10	7081808	STRAP - CABLE TIE W/ EDGE CLIP	1	10.78+iva
11	4012170	COVER - DIAGNOSTIC, W/ CLIP	1	14.40+iva
12	5414440	GROMMET, ELECTRICAL, CAB	1	9.82+iva
13	2413217	LED - PANEL MNT, 12V, BLUE	1	78.58+iva
14	2434015	FUSE,MAIN,30 AMP,(10)	2	12.60+iva
15	4011372	BREAKER, CIRCUIT, 20 AMP, SEALED	1	62.55+iva
16	4016819	RELAY - SPST, 12V, 20A, EPXY, HFA	9	46.92+iva
17	2434016	FUSE, IGNITION, 10 AMP	7	8.37+iva
18	2410280	Fuse, Mini Blade, 15 Amp. Esta Referencia foi alterada para : 4010859	2	Alterada
19	5416469	GROMMET - DASH FUSE CTR, RZR	1	12.78+iva
20	7518533	BOLT, HEXHEAD, FLANGE, BLACK	2	5.72+iva
21	4011068	FUSE - 7.5, MINI BLADE (BROWN)	4	18.75+iva
22	2411035	DIODE - 6 AMP, 1/4, 3/16 TERM	3	78.18+iva
23	2410000	DIODE - 6 AMP, 1/4, 3/16 TERM	1	54.73+iva
24	4016811	JUMPER,BRAKE SWITCH,RZR,TR [C5][C4]	1	18.62+iva
25	4019084	ALARM-BRAKE, WARNING [C5][C4]	1	92.87+iva
26	7082020	CLIP - ROUTING, DIN BOX	1	7.35+iva
27	5813954	GROMMET - 65 MM, BLK	1	9.82+iva
28	4012558	CONNECTOR-7-WAY, EURO TRAILER	1	37.32+iva
29	4011652	FUSE, 5 AMP	2	18.75+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
