Z21A4E99AX/BX

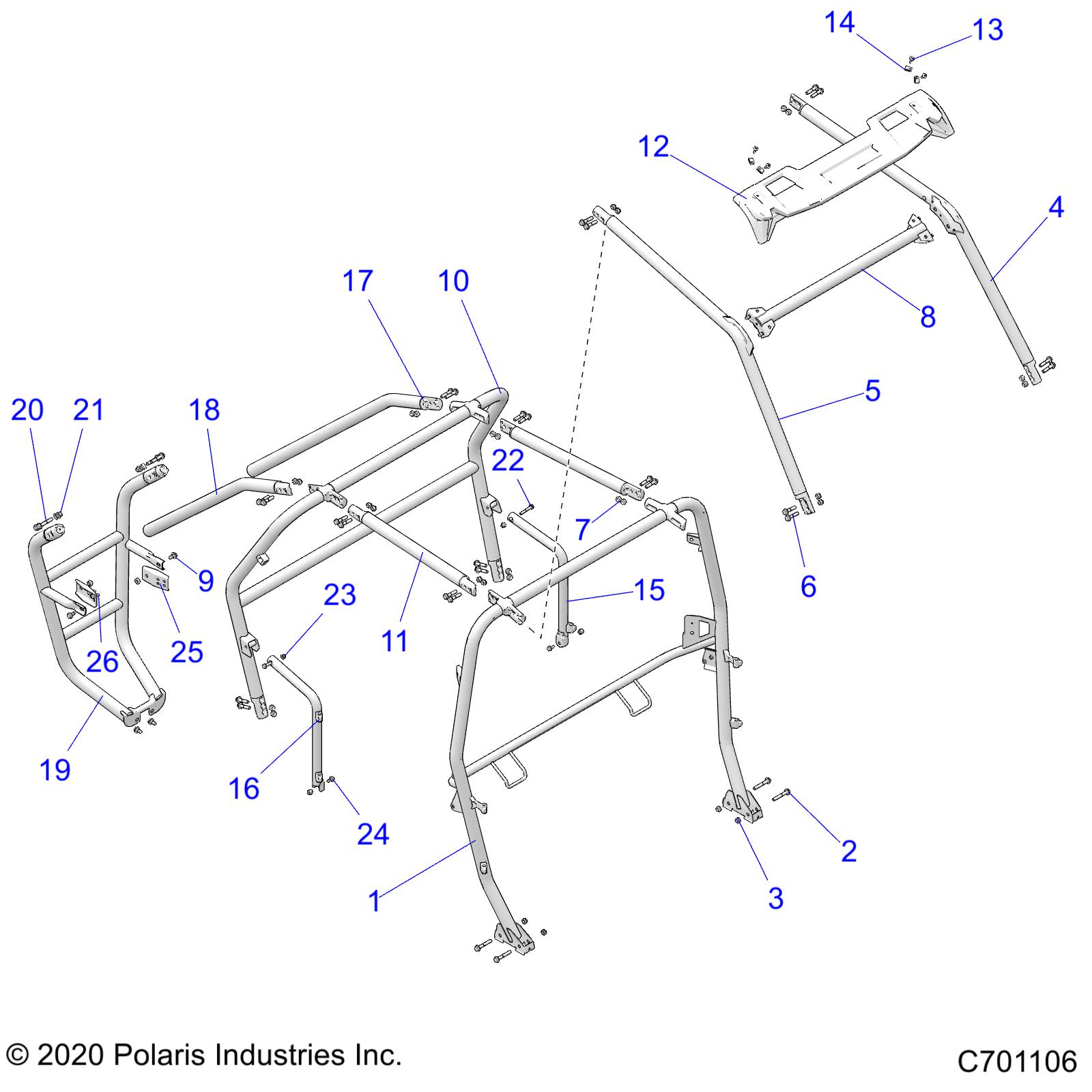

CHASSIS, CAB FRAME

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1022059-458	HOOP, ROPS, MID, MP, MATTE BLACK	1	780.35+iva
2	7519903	SCR-HXFL-M10X1.5X65 10.9 RIE	4	11.72+iva
3	7547268	NUT-NYLOCK M10X1.5,REF 0600110	4	5.72+iva
4	1020052-458	ROPS, MP, LH, MATTE BLACK	1	492.28+iva
5	1020053-458	ROPS, MP, RH, MATTE BLACK	1	492.28+iva
6	7519906	SCR-HXFL-M10X1.5X45 10.9 RIE	24	7.13+iva
7	7547746	NUT-HEX-M10X1.5 10 ZB3 NYL	24	2.85+iva
8	1020755-458	ROPS, FRONT, CROSS, MATTE BLACK	1	280.32+iva
9	7519905	SCR-HXFL-M10X1.5X20 10.9 RIE P	8	7.13+iva
10	1020286-458	WELD-HOOP,ROPS,REAR,MP,M BLK	1	682.80+iva
11	1020057-458	BRACE, ROPS, MID, MATTE BLACK	2	382.88+iva
12	5450657-070	PANEL, VISOR TRIM, BLACK	1	78.58+iva
13	7519650	SCR-TXTH-M6X1.0X25 ZFB	4	5.72+iva
14	7547674	NUT-M6-1.0, U-TYPE (2.5-3.8)	4	5.72+iva
15	1020237-458	WELD-BOLSTER,LH,M.BLK	1	135.18+iva
16	1020238-458	WELD-BOLSTER,RH,M.BLK	1	135.18+iva
17	1020620-458	WELD-ROPS,REAR,MP,LH	1	259.80+iva
18	1020621-458	WELD-ROPS,REAR,MP,RH,BLK	1	259.80+iva
19	1020434-458	WELD-ROPS,C PILLAR,M BLK	1	682.80+iva
20	7519956	SCR-HXFL-M10X1.25X55 10.9 RIE	4	7.13+iva
21	7547750	NUT-HXFL-M10X1.25 8 ZB3 NYL	4	5.72+iva
22	7520094	SCR-HXFL-M8X1.25X55 8.8 ZB	2	7.35+iva
23	7547454	NUT-M8X1.25,FLG,NYLOC-OLIVE D	2	5.72+iva
24	7518450	BOLT-M8X1.25X20,HXHDFLG,W/PTCH	2	7.13+iva
25	5259100-458	BRKT-MOUNT,BUMPER,BLK	2	73.07+iva
26	7518555	SCR-TFHFL-M8X1.25X20 CHS ZOD	4	7.13+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
