Z20R4_92AC/BC/AK/BK/AR/BR/LE/LT/LC/AH/BH/AT/BT

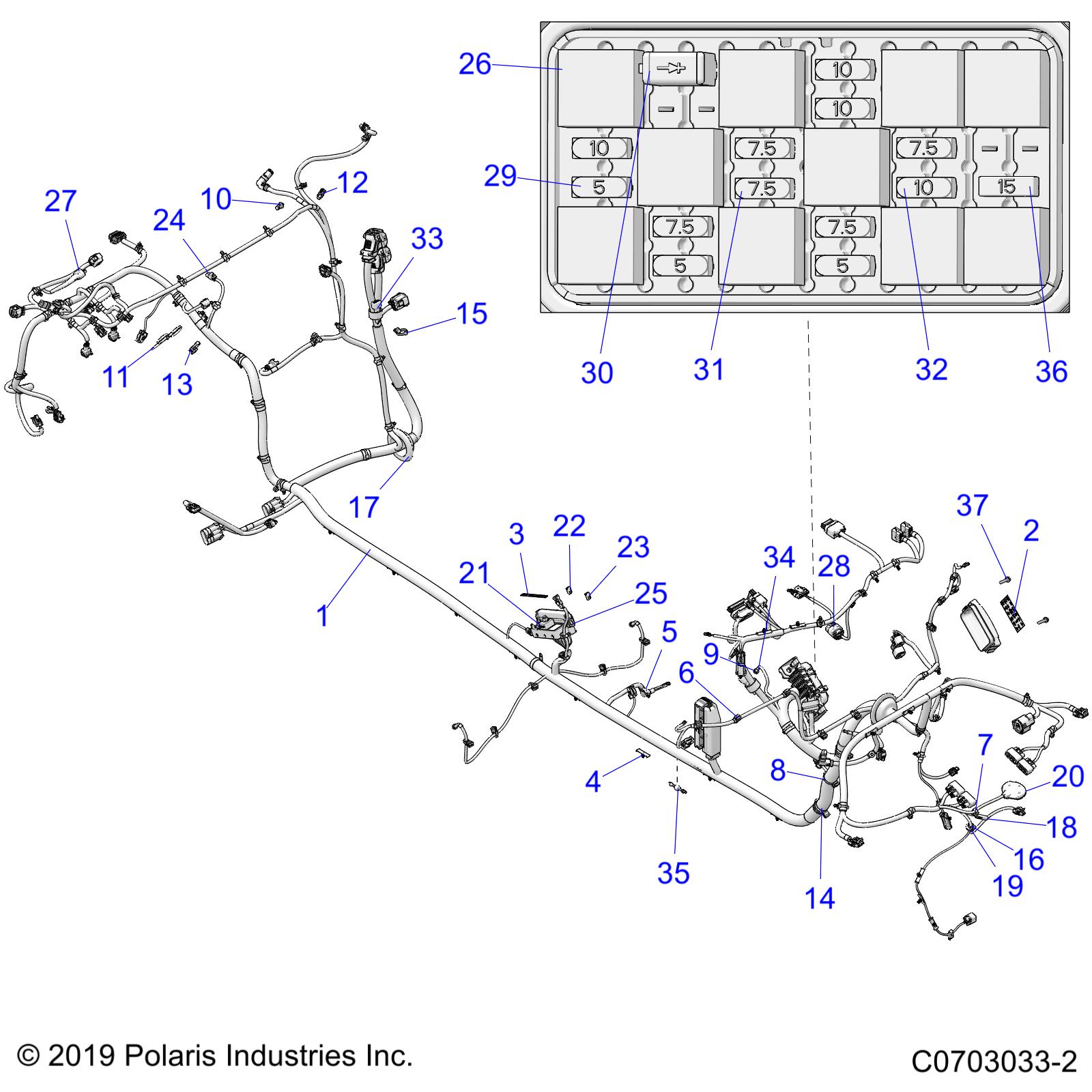

ELECTRICAL, WIRE HARNESS, CHASSIS, ULTIMATE

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2415220	HARNESS-CHASSIS,RZR,T,RV MP,DX [INCL. 2-36] Esta Referencia foi alterada para : 2415918	1	Alterada
2	7192416	LABEL-FUSE BOX	1	5.83+iva
3	7189870	LABEL-PDM,RZR	1	+iva
4	7082411	CLIP-XMAS,6.35MM HOLE,TAPE-ON	13	4.28+iva
5	7082406	CLIP-FIR TREE,12.5MM OFF,90DEG	1	4.28+iva
6	7082403	CLIP-EDGE,1-3MM THICKNESS	5	7.13+iva
7	7082402	CLIP-EDGE,1-3mm THICKNESS	1	9.82+iva
8	7082399	CLIP-EDGE,3-6MM THICKNESS	2	8.37+iva
9	7082020	CLIP-ROUTING,DIN BOX	1	7.35+iva
10	7082003	CABLE TIE-FIR TREE	4	6.27+iva
11	7081916	STRAP-PANDUIT,DBL LOOP,260MM	1	5.72+iva
12	7081890	CLIP-EDGE,HARNESS	5	12.78+iva
13	7081824	STRAP-CABLE TIEW/EDGECLIP3-6MM	2	23.45+iva
14	7081808	STRAP-CABLE TIE W/EDGE CLIP	4	10.78+iva
15	7081496	CLIP-ROUTING	33	7.13+iva
16	7080138	PANDUIT STRAP	AR	3.12+iva
17	5813954	GROMMET-65MM,BLK	2	9.82+iva
18	5438230	CAP-VINYL,125X375,BLACK	1	10.47+iva
19	5413027	GROMMET-SPEAKER,VOLUME	1	2.85+iva
20	4018662	ANTENNA,GPS,EXT	1	227.20+iva
21	-------	FUSE-ZCASE, 200A	1	+iva
22	-------	FUSE-MCASE,SLOTTED,40A	3	+iva
23	-------	FUSE-MCASE,SLOTTED,30A	5	+iva
24	4018066	CAP-EVAP CONNECTOR	1	6.27+iva
25	4017598	FUSE-PDM	1	78.58+iva
26	4016819	RELAY-SPST,12V,20A,EPXY,HFA	10	46.92+iva
27	4016101	BOOT-TMAP	1	21.32+iva
28	4012170	COVER-DIAGNOSTIC,W/CLIP	1	14.40+iva
29	4011652	FUSE, 5 AMP	3	18.75+iva
30	4011474	DIODE-6AMP	1	62.55+iva
31	4011068	FUSE-7.5,MINI BLADE (BROWN)	5	18.75+iva
32	2434016	FUSE, IGNITION, 10 AMP	4	8.37+iva
33	2414716	RESISTOR-EVAP PULLUP-1KOHM	2	16.20+iva
34	2413217	LED-PANEL MNT,12V,BLUE	1	78.58+iva
35	2411035	DIODE-6AMP,1/4,3/16 TERM	1	78.18+iva
36	2410280	FUSE-MINI BLADE,15 AMP Esta Referencia foi alterada para : 4010859	1	Alterada
37	7518514	SCR-HXFL-M6X1.0X25 8.8 RIE	2	7.13+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
