Z20S1E99AG/AK/BG/BK

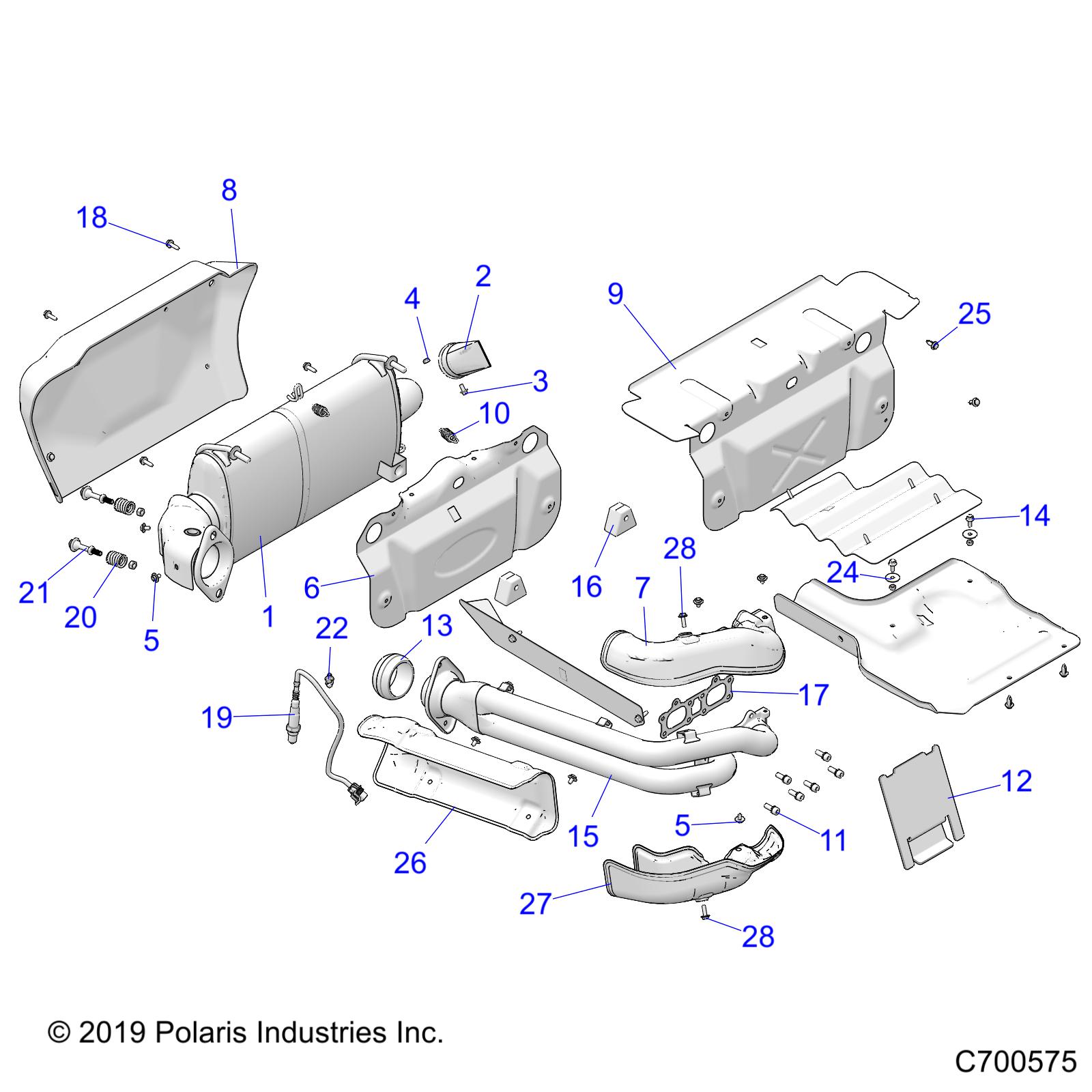

ENGINE, EXHAUST SYSTEM

#	Referencia	Descrição	Quant(*)	PVP	Stock
-	7547674	NUT-M6-1.0,U-TYPE (2.5-3.8) [NOT ILLUSTRATED]	2	5.72+iva
1	1263066	ASM-SILENCER [INCL. 2-4, 3 QTY OF 5]	1	877.88+iva
2	1262390	ARRESTOR, SPARK	1	78.18+iva
3	7517257	SCREW	1	11.72+iva
4	7547120	NUT	2	7.13+iva
5	7520291	SCR-HHSEMS-M6X1.0X10 A286,LOCK	12	9.82+iva
5	7520291	SCR-HHSEMS-M6X1.0X10 A286,LOCK	12	9.82+iva
6	5266579	SHIELD-REAR,STAINLESS	1	78.18+iva
7	5266219	SHIELD-HEAT,HEADPIPE,FRONT UPR	1	92.87+iva
8	5814571	SHIELD-REAR BUMPER	1	157.25+iva
9	5814580	SHIELD-REAR CLOSEOFF	1	150.42+iva
10	7043727	SPRING-EXHAUST S.S. SHOTPEENED	2	7.13+iva
11	7518984	SCREW	6	11.03+iva
12	5814629	SHIELD-ACCESS PANEL	1	78.18+iva
13	3610236	GASKET, DOUBLE, SPHERICAL	1	53.58+iva
14	7516820	SCR-M6X1.0X16.0,HX/FL-Y/D	1	8.58+iva
15	1263285	ASM-HEADPIPE [INCL 6 QTY OF 5]	1	574.31+iva
16	5450115	MOUNT, ISOLATOR	2	17.05+iva
17	3610184	GASKET, EXHAUST SEAL	1	53.58+iva
18	7518529	SCREW	6	5.72+iva
19	4011853	SENSOR-LAMBDA,LSF 4.2	1	164.08+iva
20	7044274	SPRING, SPHERICAL, EXHAUST	2	25.02+iva
21	7520079	STUD, SPHERICAL, EXHAUST	2	17.05+iva
22	7081496	CLIP-ROUTING	1	7.13+iva
24	7555935	WASHER-.28 X .81 X .06, ST-M	4	7.13+iva
25	7662345	RVT-3/16X.040-.354,AL BLK	7	5.72+iva
26	5264090	SHIELD-HEAT,HEADPIPE,INNER	1	62.55+iva
27	5266220	SHIELD-HEAT,HEADPIPE,FRONT,LWR Consulte-nos podemos ter uma solução	1	Obsoleta
28	7520995	SCR-HHSEMS-M6X1.0X19 A286,LOCK	2	7.13+iva
28	7520995	SCR-HHSEMS-M6X1.0X19 A286,LOCK	2	7.13+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
