R13VA17AA/AB

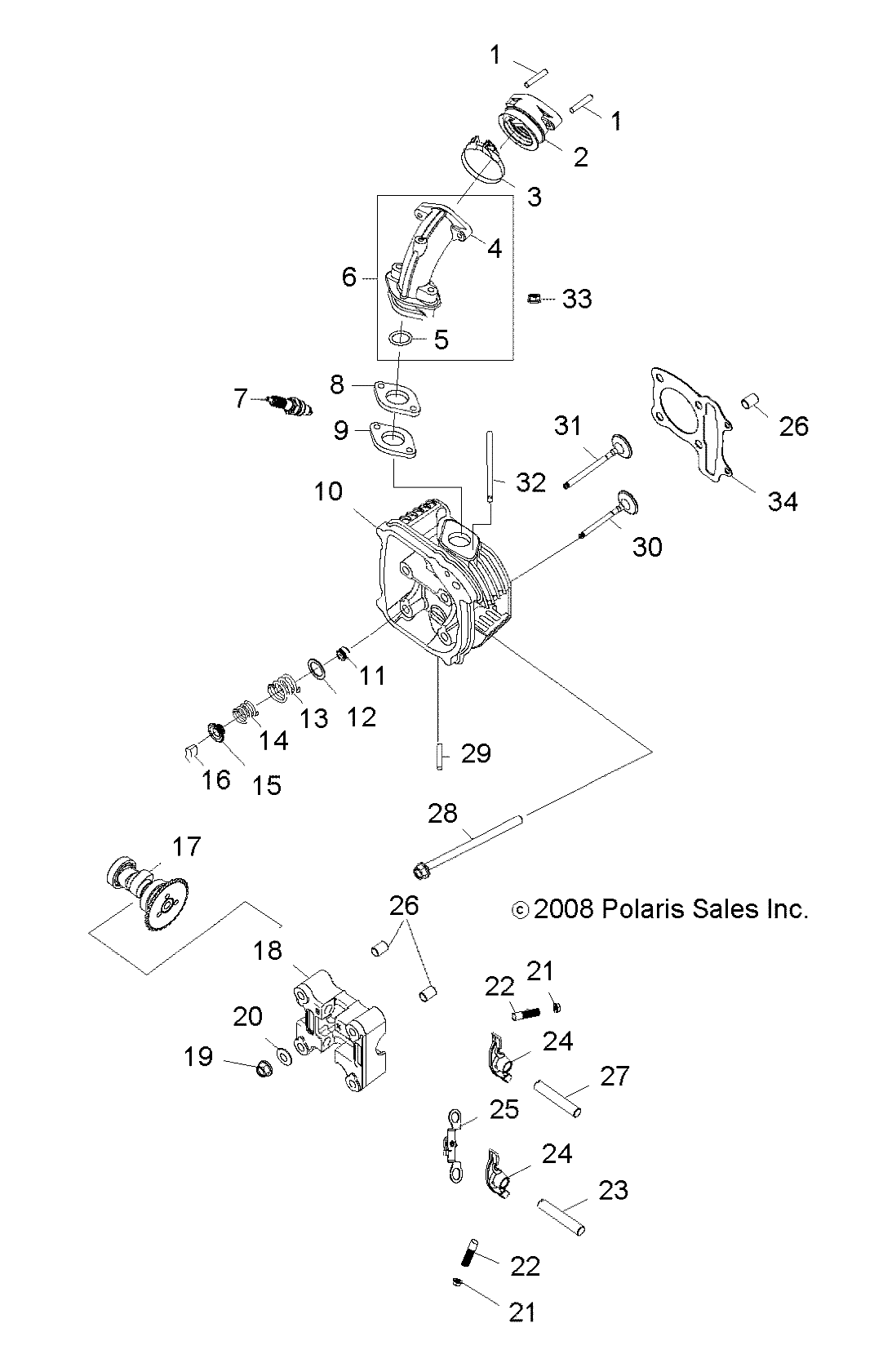

ENGINE, CYLINDER HEAD
Responsive image
#ReferenciaDescriçãoQuant(*)PVPStock
1 0452405 STUD 25.72+ivaStock Consultar
1 0452405 STUD 25.72+ivaStock Consultar
2 0454511 ADAPTER, CARBURETOR 185.73+ivaStock Consultar
3 0454512 CLAMP, HOSE 19.82+ivaStock Consultar
4 ------- MANIFOLD 1+ivaStock Consultar
5 0452459 O-RING 17.13+ivaStock Consultar
6 0454513 ASM., MANIFOLD, INTAKE 1114.32+ivaStock Consultar
7 0453034 PLUG, SPARK 16.42+ivaStock Consultar
8 0453449 INSULATOR, MANIFOLD 123.45+ivaStock Consultar
9 0453451 GASKET, MANIFOLD Esta Referencia foi alterada para : 0455364 1AlteradaStock Consultar
10 0454848 ASM., CYLINDER, HEAD [Incl. 11-16,30,31] Consulte-nos podemos ter uma solução1ObsoletaStock Consultar
11 0452390 SEAL, VALVE 217.05+ivaStock Consultar
12 0452388 WASHER, VALVE, SPRING, OUTER 29.82+ivaStock Consultar
13 0454515 SPRING, VALVE, OUTER 216.37+ivaStock Consultar
14 0454516 SPRING, VALVE, INNER 211.45+ivaStock Consultar
15 0452387 RETAINER, VALVE, SPRING 226.65+ivaStock Consultar
16 0452389 CLIP, RETAINER 49.82+ivaStock Consultar
17 0454517 ASM., CAM SHAFT 1142.95+ivaStock Consultar
18 0454518 BRACKET, CAM SHAFT 168.20+ivaStock Consultar
19 0450268 NUT, FLANGE 44.28+ivaStock Consultar
20 0452425 WASHER 45.72+ivaStock Consultar
21 0452424 NUT, TAPPET ADJUST 25.72+ivaStock Consultar
21 0452424 NUT, TAPPET ADJUST 25.72+ivaStock Consultar
22 0452423 SCREW, TAPPET ADJUST 212.78+ivaStock Consultar
22 0452423 SCREW, TAPPET ADJUST 212.78+ivaStock Consultar
23 0454519 SHAFT, EXHAUST, ROCKER ARM 117.20+ivaStock Consultar
24 0452409 ARM, VALVE, ROCKER 256.87+ivaStock Consultar
24 0452409 ARM, VALVE, ROCKER 256.87+ivaStock Consultar
25 0452414 ASM., DECOMP. RELEASE 128.43+ivaStock Consultar
26 0450142 PIN, DOWEL 45.72+ivaStock Consultar
26 0450142 PIN, DOWEL 45.72+ivaStock Consultar
27 0454520 SHAFT, INTAKE, ROCKER ARM 139.08+ivaStock Consultar
28 0454521 BOLT 27.35+ivaStock Consultar
29 0452398 BOLT, STUD 25.72+ivaStock Consultar
30 0454522 VALVE, EXHAUST 190.93+ivaStock Consultar
31 0454523 VALVE, INTAKE 171.08+ivaStock Consultar
32 0454524 BOLT, STUD 29.82+ivaStock Consultar
33 0450880 NUT, FLANGE 25.72+ivaStock Consultar
34 0454365 GASKET, CYLINDER HEAD Esta Referencia foi alterada para : 0455363 1AlteradaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
